Distribution:
PureLink GmbH
QuattroPod Spec
QuattroPod Spec
Rev. 1.01
Available from B2B Online Portal

Advertisement

loading
Need help?

Need help?

Do you have a question about the QuattroPod and is the answer not in the manual?

Questions and answers

Related Manuals for Actions Microelectronic QuattroPod

Summary of Contents for Actions Microelectronic QuattroPod

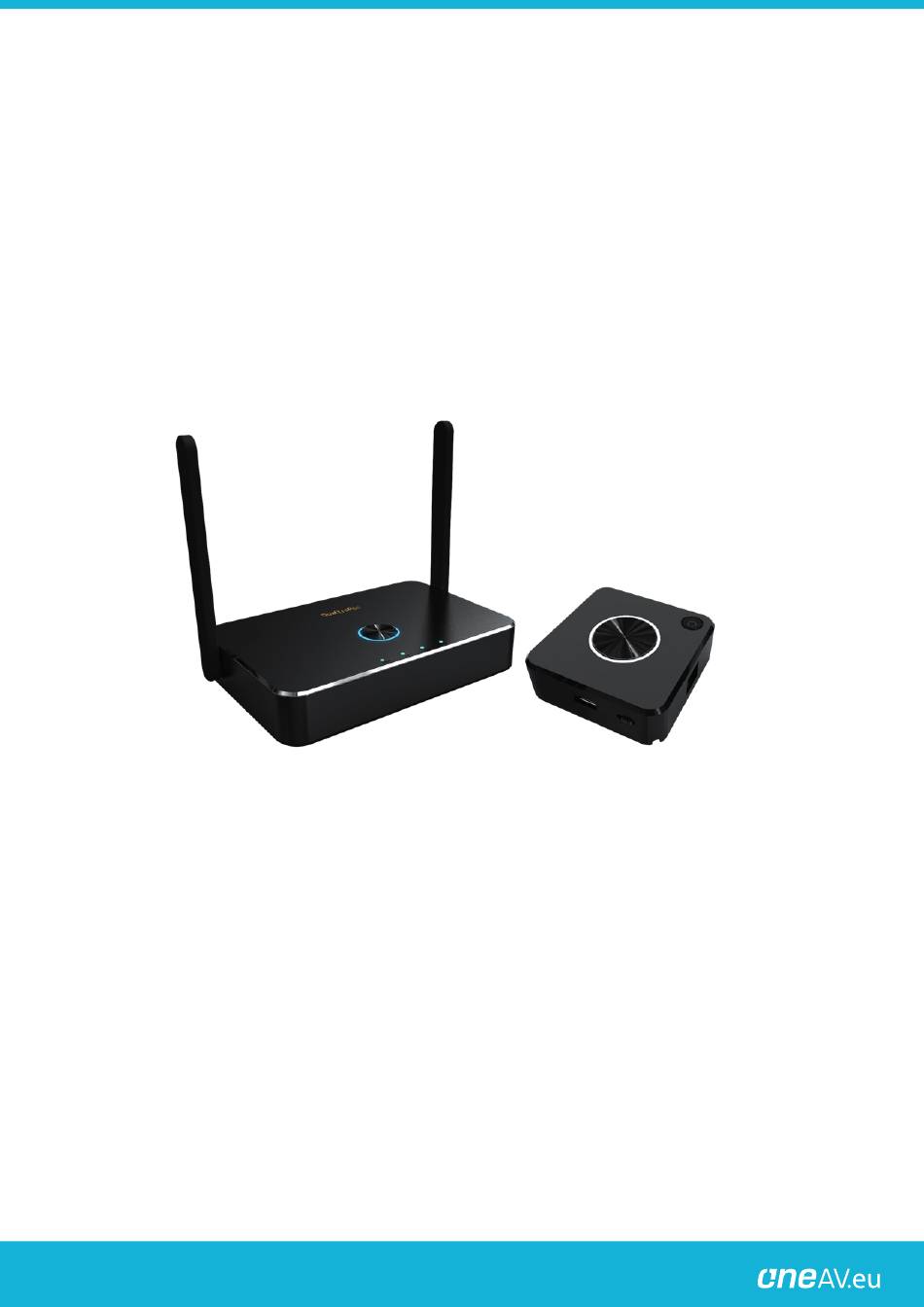

  • Page 1 QuattroPod Spec QuattroPod Spec Rev. 1.01 Distribution: PureLink GmbH Available from B2B Online Portal...
  • Page 2 Revision History Date V1.00 Initial Release 2018/Sep. V1.01 Correct I/O description 2019/Apr. Distribution: PureLink GmbH Available from B2B Online Portal...
  • Page 3 Introduction Firstly, thanks for choosing QuattroPod as wireless presentation facility. It integrates powerful dual core SoC and advanced 802.11ac 5G WiFi to provide you the a smooth wireless display experience, and it supports almost all devices. Our features not only support ‘’Split Screens Display”, “...
  • Page 4 Transmitter (T01) Spec: ARM based RISC DRAM DDR3 256MB Flash NAND Flash 256MB Input Resolution l 3840x2160@60hz (HDMI only) l 3840x2160@30hz l 4096x2160@60hz (HDMI only) l 4096x2160@30hz l 1920x1080@60Hz l 1920x1080i@60Hz l 1280x720@60hz l 1280x720@50hz l 1920x1080@30Hz l 1920x1080@50Hz l 1920x1080i@50Hz l HDMI in l DP in l USB type A male...
  • Page 5 Dimension: Installation Guide: QuattroPod RX: 1. Connect Power with the adaptor 2. Connect HDMI with HDMI port with the projectors or displays. Distribution: PureLink GmbH Available from B2B Online Portal...
  • Page 6 *Due to WiFi signal requires enough space, please DO NOT block the antenna or mount it behind of TV/Panel. QuattroPod TX: 1. Plug USB 5V(required 1A above), through adaptors or USB ports of laptops (recommend USB3.0) 2. Connect HDMI port with PC...
  • Page 7 LED Indication: QuattroPod Receiver QuattroPod Transmitter WiFi Channel Table (5Ghz, 20Mhz): Distribution: PureLink GmbH Available from B2B Online Portal...
  • Page 8 4 .2 5GHz RF Specification Rx’s WiFi RF Parameters (5Ghz): Feature Description WLAN Standard IEEE 802.11ac 2x2, WiFi compliant Frequency Range 4.900 GHz ~ 5.845 GHz (5.0 GHz ISM Band) 5.0GHz Please see the table Number of Channels 802.11a /54Mbps : 13 dBm ± 1.5 dB @ EVM ≤ -25dB 802.11n /MCS7 : 12 dBm ±...
  • Page 9 - MCS=4 PER @ -79 dBm, typical - MCS=5 PER @ -74 dBm, typical - MCS=6 PER @ -73 dBm, typical - MCS=7 PER @ -71 dBm, typical - MCS=8 PER @ -88 dBm, typical - MCS=15 PER @ -68 dBm, typical - MCS=0 PER @ -85 dBm, typical - MCS=1...
  • Page 10 - MCS=5, NSS1 PER @ -73 dBm, typical - MCS=6, NSS1 PER @ -72 dBm, typical - MCS=7, NSS1 PER @ -71 dBm, typical - MCS=8, NSS1 PER @ -67 dBm, typical - MCS=0, NSS2 PER @ -87 dBm, typical - MCS=8, NSS2 PER @ -63 dBm, typical - MCS=0, NSS1...
  • Page 11 (11ac,20MHz) - MCS=4 PER @ -75 dBm, typical @10% PER - MCS=5 PER @ -71 dBm, typical - MCS=0, NSS1 PER @ -82 dBm, typical - MCS=6 PER @ -69 dBm, typical - MCS=1, NSS1 PER @ -81 dBm, typical - MCS=7 PER @ -68 dBm, typical - MCS=2, NSS1...
  • Page 12 8821CU - 18Mbps PER @ -80 dBm, typical - 24Mbps PER @ -76 dBm, typical - 36Mbps PER @ -73 dBm, typical - 48Mbps PER @ -68 dBm, typical - 54Mbps PER @ -67 dBm, typical - MCS=0 PER @ -85 dBm, typical - MCS=1 PER @ -83 dBm, typical - MCS=2...

  • Page 13: Port Usage

    8821CU - MCS=7 PER @ -62 dBm, typical - MCS=8 PER @ -60 dBm, typical - MCS=9 PER @ -59 dBm, typical - MCS=0 PER @ -80 dBm, typical - MCS=1 PER @ -77 dBm, typical - MCS=2 PER @ -75 dBm, typical - MCS=3 PER @ -71 dBm, typical Receive Sensitivity...
  • Page 14 T02 LED Status list Activate Host Activate Guest without source without source input input Activate Host & in Host received request projecting of projection Guest standby Host standby without without projecting projecting 1. Under connection Guest send request 2. Pairing/TX OTA of projection and 3.

  • Page 15: Web Setting

    * Outbound link can select only one of Wi-Fi and RJ45 wire line (LAN). Airplay activated after web setting. (Default is off) Quattro RX has been powered on, however, there is neither Quattro TX nor device linked. Shift in 3, which means “under pairing” or “building the connection”.
  • Page 16 Function & Link Status Quattro Rx IP Manual Download After connecting to Rx and open the IP, the page will show as below- Please select 2 icons for more features: : menu icon. : indicate log-in icon. 2. Log in Distribution: PureLink GmbH Available from B2B Online Portal...
  • Page 17 Management, Admin Setting, and About. You can also download Android APK here. 4. Device Management: This section helps to manage web page language, Rx’s output resolutions, Max connections and QuattroPod Receiver & Transmitter pairing file download. Distribution: PureLink GmbH Available from B2B Online Portal...
  • Page 18 4.1 Language: Select the language you prefer to show in the webpage. There are more than 20+ languages are supported. 4.2 Resolution: Our Receiver supports EDID to match the best resolution, you can also adjust it here. Distribution: PureLink GmbH Available from B2B Online Portal...
  • Page 19 4.3 Max Connection: Set up the maximum users of the Receiver (Direct link only). Default is 8 users. 4.4 Pair File Download: download the pairing file from Receiver. You can transfer the pairing file in USB disk and plug into Transmitter for pairing The switch of USB on Transmitter shall be adjusted to “mobile”.
  • Page 20 Distribution: PureLink GmbH Available from B2B Online Portal...
  • Page 21 5. Network Management: Connect the outbound Wi-Fi router. If you turn off remember WiFi, the outbound WiFi setting and password will not be kept for auto connection. 5.1 Scan 5G SSID and Connect: this function can help you to scan available Wi-Fi AP and join. 5.2 Remember Wi-Fi: it to provide options to remember the AP setting parameter or not.
  • Page 22 6.1 Wi-Fi Channel You can select the channel between QuattroPod Receiver & Transmitter to prevent channel interference. *Please be noted, due to ensure WiFi channel’s clearance, the Rx will be rebooted every 8 hours to stay in the best channel if there is no user using this device.
  • Page 23 6.3 SSID: set up the SSID indication of the Receiver on the main screen. *please be noticed if you turn off SSID of Rx, you can only connect it over ethernet, as well as the Tx. 6.4 Change WiFi password: users can change password of the Receiver, or hide the password to avoid connections without authorization.
  • Page 24 6.7 Airplay- to turn on/off the iOS /Mac devices can cast without QuattroPod Transmitters. 6.8 Change Admin Password- to change the web setting’s log in password. 6.9 Screen Saving: to shut down the screen off when the input is idle for certain time.
  • Page 25 6.10 upgrade firmware: to remind users if there is new firmware released and execute the upgrade (* but the Receiver must connect to internet). You will also be able to update Tx’s firmware here if it’s connected. *We recommend to keep Tx and Rx’s firmware synced and update to latest version 6.11 Reboot: to reboot the Rx equipment.
  • Page 26 2. From share screen mode, Host allows Guest full screen request. Indicator 1 Indicator 2 Indicator 3 Result of screen Host Click GUEST Guest Long Press 3. Guest full screen mode, Host retrieves share screen request. Indicator 1 Indicator 2 Indicator 3 Result of screen Host...

  • Page 27: Fcc Statement

    & your body 本產品符合國家通訊傳撥委員會(NCC)之規範： 低功率電波輻射性電機管理辦法 第十二條 經型式認證合格之低功率射頻電機，非經許可，公司、商號或使用者均不得擅自變更頻 率、加大功率或變更原設計之特性及功能。 第十四條 低功率射頻電機之使用不得影響飛航安全及干擾合法通信；經發現有干擾現象時，應改善 至無干擾時方得繼續使用。前項合法通信，指依電信法規定作業之無線電通信。低功率射頻電機須 忍受合法通信或工業、科學及醫療用電波輻射性電機設備之干擾。 ＊您可以在官網下載到最新版完整手冊以及相關品問題：www.iezvu.com ©2017 Actions Microelectronics Co., Ltd. : Quattro 或 Quattro Pod 為 Actions Microelectronic Co., Ltd., 炬力北方股份有限公司在大陸地區與其他國家註冊之商標，說明書中提到的相關產品 名稱或商標則屬於相對應之該公司 Distribution: PureLink GmbH Available from B2B Online Portal...
