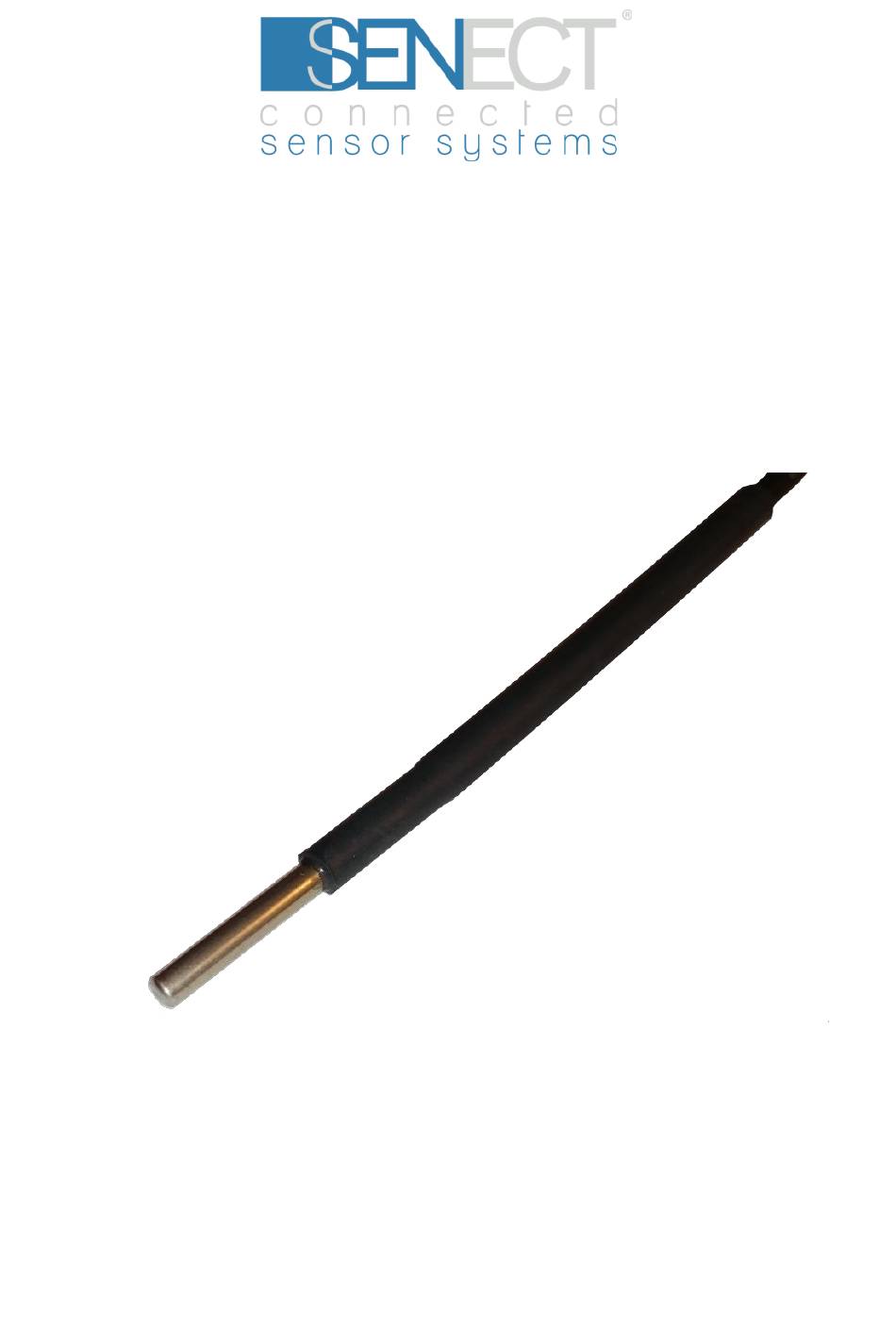

- Page 1 Temperature Sensor TMP MANUAL...
-
Page 2: Product Type
Please read this manual carefully and store it so that you can use it later. Read the warning and safety notes attentive. Further information and latest software releases or documents can be downloaded from: www.senect.de © SENECT GmbH & Co. KG - FW 00.80... -
Page 3: Table Of Contents
Table of contents Table of contents Product type .................. 2 Table of contents ................3 Used symbols and wording ............4 General Security Notes ..............5 Intended use .................. 6 Getting started ................7 Getting started – Short version ............. 9 Maintenance and cleaning ............ -
Page 4: Used Symbols And Wording
Used symbols and wording Used symbols and wording DANGER! Warning of life threatening dangers. WARNING! Warning of possible life threatening and / or severe irreversible injuries. ATTENTION! Warning of possible medium or slight injury. ATTENTION! Follow the notes to avoid damage of equipment. -
Page 5: General Security Notes
General Security Notes The Temperature Sensor TMP is an electronic sensor unit for the measurement of the water temperature in aquaculture applications and must be used in combination with SENECT control units. Since it is an electronic product the common prerequisites for a safe instrument usage must be fulfilled. -
Page 6: Intended Use
Intended use The operating temperature of the device must be between 0°C and +50°C. It is not allowed to modify the sensor, to open the housing or to insert anything into the housing. The Temperature Sensor TMP is designed to be operated by professional users. -
Page 7: Getting Started
Getting started a resolution of 0.1°C in professional aquaculture applications. Getting started Scope of delivery o 1 x Temperature Sensor TMP o 1 x Manual Note Please check directly after delivery, that the package is not destroyed or damaged or was opened before. - Page 8 Connect the blue marked plug of the sensor with a sensor input port (also blue marked) of your control unit. The SENECT control units recognize the sensor and start automatically the measurements. The Temperature Sensor TMP is factory calibrated and need not to be recalibrated –...
-
Page 9: Getting Started - Short Version
Getting started – Short version Getting started – Short version 1. Mount the sensor submerged. 2. Mount the electronic interface at a protected location. 3. Connect the sensor cable with a control unit (plug „SENSOR“). 4. The control unit recognizes the sensor and starts the measurements. -
Page 10: Temperature: 2-Point-Calibration
Maintenance and cleaning Temperature: 2-Point-Calibration To calibrate the temperature signal, two calibration points are necessary. The calibration point 1 must have a lower temperature (e.g. 0°C) than calibration point 2. This temperature (point 1) must be lower than 20°C. The calibration point 2 (higher temperature) must be between 30°C and 50°C. - Page 11 Maintenance and cleaning “Sensors / TMP / Sensor Calibration / Temperature / Calibration point 1”. Measure the water temperature with a reference thermometer and enter this temperature with the cursor keypad. Confirm the calibration point with OK. Repeat this procedure for the upper calibration point 2 with a temperature between 30°C and 50°C.
-
Page 12: Technical Data
Technical data Technical data Dimensions: Ø 3 mm, length: 85 mm Cable length : 5 + 2.5 m Supply voltage: 24 V DC Power consumption: << 1 W Measurement range: 0° to 50 °C Precision: < ±0,5°C Response Time: < 60s Ingress protection: IP69... - Page 13 Technical data...
-
Page 14: Information About The Correct Disposal
Alternatively, you can also send the product back to the producer. The SENECT GmbH & Co. KG is member of the Stiftung Elektro-Altgeräte Register and the products are registered (WEEE-Reg.-Nr.: DE37193510).
