RIDGID 68131 Installation Instructions

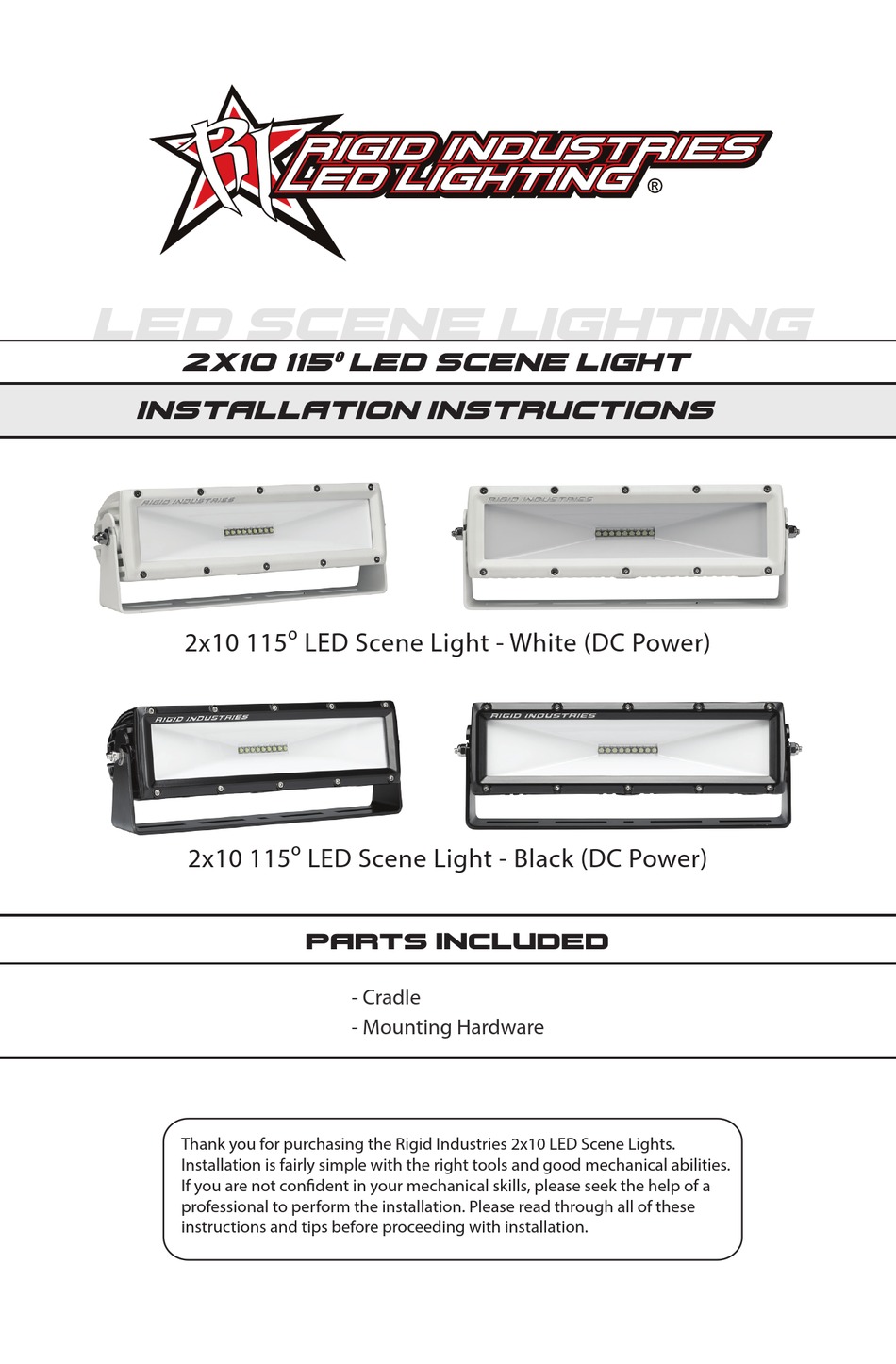

2x10 115 led scene light

led scene lighting

2x10 115

installation instructions

2x10 115 º LED Scene Light - White (DC Power)

2x10 115 º LED Scene Light - Black (DC Power)

Thank you for purchasing the Rigid Industries 2x10 LED Scene Lights.

Installation is fairly simple with the right tools and good mechanical abilities.

If you are not con dent in your mechanical skills, please seek the help of a

professional to perform the installation. Please read through all of these

instructions and tips before proceeding with installation.

led Scene light

parts included

- Cradle

- Mounting Hardware

Table of Contents

Need help?

Do you have a question about the 68131 and is the answer not in the manual?

Page 1 led scene lighting º 2x10 115 led Scene light installation instructions 2x10 115 º LED Scene Light - White (DC Power) 2x10 115 º LED Scene Light - Black (DC Power) parts included - Cradle - Mounting Hardware Thank you for purchasing the Rigid Industries 2x10 LED Scene Lights. Installation is fairly simple with the right tools and good mechanical abilities.
Page 2 Always disconnect battery before servicing any fuses or electrical system. Step 1 Drill appropriate mounting holes onto application surface. Step 2 Secure Cradle to application surface. See Figure 1. Figure 1 Item Description Cradle ¼-20 X 1 Hex Head Screw S/S ¼-20 nylon Insert Lock Nut S/S ¼...
Page 3 Step 3 Secure light to cradle mount. See Figure 2. Figure 2 Step 4 Wire the pigtail leads to power source (Black: Negative, Red: Positive). Adjust the projection angle prior to tightening all hardware.
Page 4 Your installation is now complete. Welcome to the Rigid Nation! Warranty Information Rigid Industries warrants that this product will be free from defects in material and workmanship. If you believe your Rigid Industries product is defective, it must be returned to Rigid Industries for inspection by our warranty claims department.
