Intellitronix AP10002 Installation Manual

Six gauge universal analog dash panel

Hide thumbs

Made in America

Thank you for purchasing this instrument from Intellitronix. We value our customers!

* Always disconnect the battery before attempting any electrical work on your vehicle. *

KIT COMPONENTS

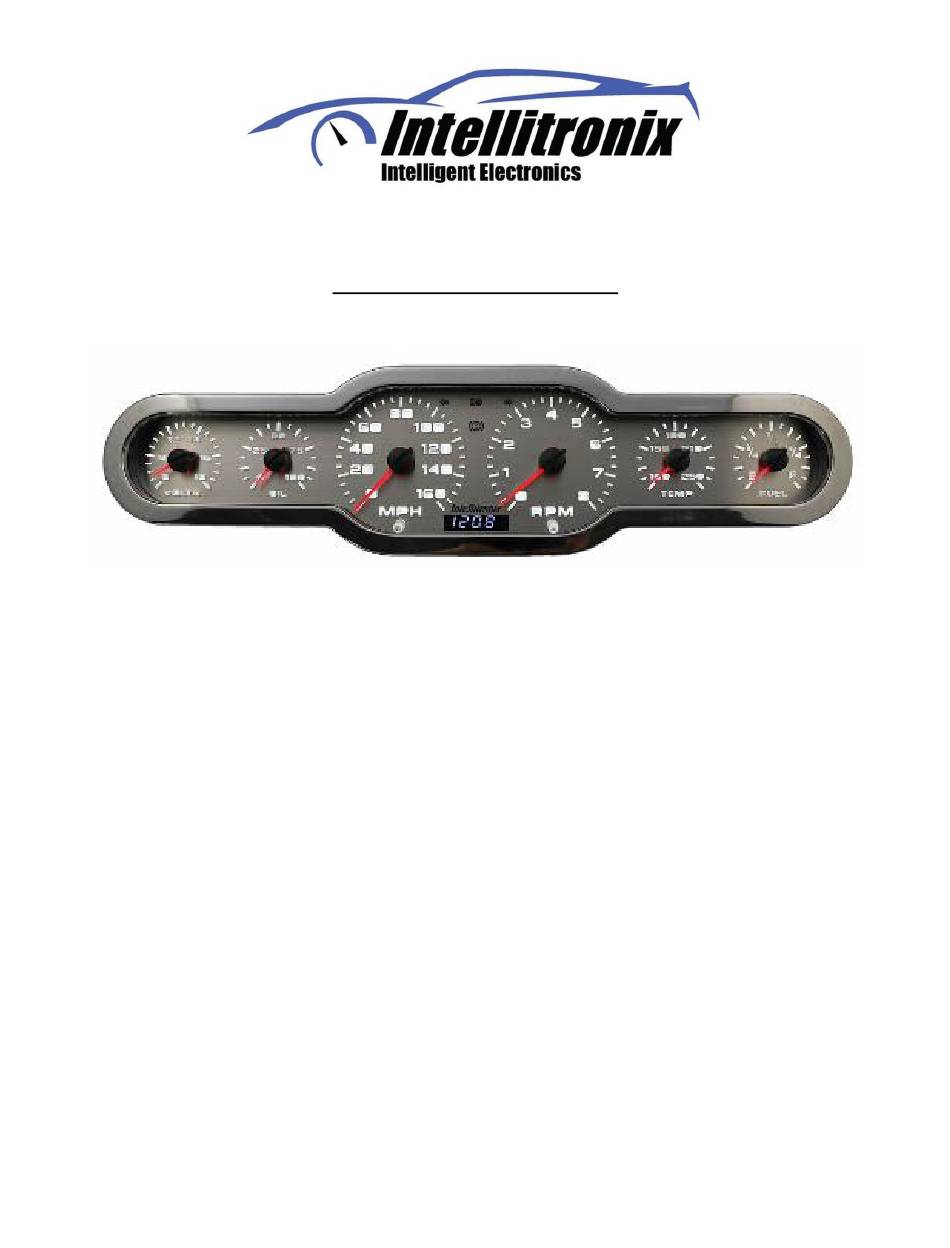

◊ One (1) Assembled Analog Circuit Board (with Speedometer, Tachometer, Voltmeter, Water

Temp., Fuel Level and Oil Pressure Gauges – with lens and two attached mounting

brackets.

◊ One (1) Temperature Sending Unit (S8013)

* 1/8" NPT, 0-255 Deg., 1/2" NPT Bushing

◊ One (1) Pressure Sending Unit (S8434)

* 1/8" NPT, 0-100 PSI Oil Pressure

◊ One (1) Universal Speedometer Sensor (S9013)

* 7/8" NPT Industry Standard threads

PANEL MOUNTING INSTRUCTIONS

Carefully remove existing gauges. You may need to alter the dashboard in your vehicle to

accommodate this new Analog panel. Remove the two mounting brackets from the back of the

new panel and reinstall them on the backside of your vehicle's dashboard.

WIRING INSTRUCTIONS

Note: Automotive circuit connectors are the preferred method of connecting wires. However, you may

solder if you prefer.

Ground - Black This is the main ground for the display system. A wire should be run from this

board to the vehicle's main engine block ground. Use 18 AWG or larger wire to ensure sufficient

grounding. Proper vehicle grounding is extremely important for any gauges (or electronics) to

1-AP 10002

INSTALLATION GUIDE

Six Gauge Universal Analog Dash Panel

Part Number: AP10002

Intellitronix

Lifetime Guarantee

(rev. 03/2018)

www.intellitronix.com

Table of Contents

Need help?

Do you have a question about the AP10002 and is the answer not in the manual?

Questions and answers

Summary of Contents for Intellitronix AP10002

Page 1 Made in America Lifetime Guarantee Thank you for purchasing this instrument from Intellitronix. We value our customers! INSTALLATION GUIDE Six Gauge Universal Analog Dash Panel Part Number: AP10002 * Always disconnect the battery before attempting any electrical work on your vehicle. * KIT COMPONENTS ◊...
Page 2 Both switches in the up position for Ford/Chrysler For GM - #1 toggle is up, # 2 toggle is down. Both switches in the down position for VDO For Universal/Stewart Warner - #1 toggle is down, # 2 toggle is up. 2-AP 10002 Intellitronix www.intellitronix.com (rev. 03/2018)
Page 3 4. Odometer Setting 5. Calibration CALIBRATION Note: If using the Intellitronix GPS Sending Unit (not included), the speedometer does not need to be calibrated. The speedometer leaves the factory with a pre-set industry standard setting of 8,000 pulses per 3-AP 10002 Intellitronix www.intellitronix.com...
Page 4 While scrolling through ‘CAL’ mode you will see ‘ODO’ appear. This will allow you to enter the vehicle’s actual mileage. Press the trip button again at this point and you will enter the odometer 4-AP 10002 Intellitronix www.intellitronix.com (rev. 03/2018)
Page 5 However, once it finishes scrolling one time, the memory is ready to record new data and will begin recording again once the vehicle starts to move. The highest speed measured over multiple runs will be retained in memory. 5-AP 10002 Intellitronix www.intellitronix.com (rev. 03/2018)
Page 6 Technical Support Monday - Friday 9am to 5pm EST (440) 210-7646 support@intellitronix.com This product carries a limited Lifetime Warranty. This warranty is limited to replacement or repair of the unit at the discretion of Intellitronix.
