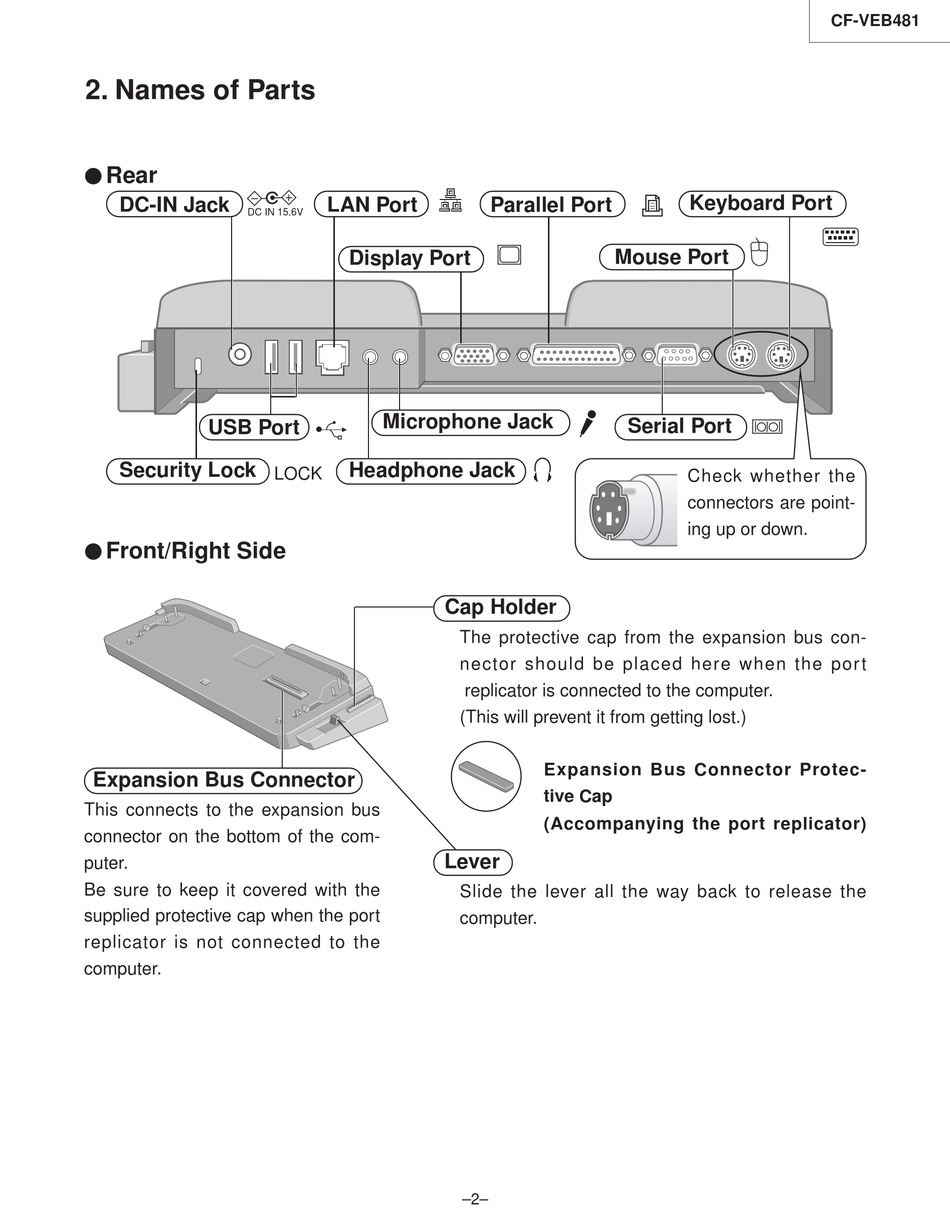

2. Names of Parts
Rear
D
DC-IN Jack
DC IN 15.6V
USB Port
Security Lock
Front/Right Side
D
Expansion Bus Connector
This connects to the expansion bus
connector on the bottom of the com-
puter.
Be sure to keep it covered with the
supplied protective cap when the port
replicator is not connected to the
computer.
LAN Port
Display Port
Microphone Jack
Headphone Jack
LOCK
Cap Holder
Lever
Parallel Port
Mouse Port
Serial Port
The protective cap from the expansion bus con-
nector should be placed here when the por t
replicator is connected to the computer.
(This will prevent it from getting lost.)
Expansion Bus Connector Protec-
tive Cap
(Accompanying the port replicator)
Slide the lever all the way back to release the
computer.
–2–
CF-VEB481
Keyboard Port
Check whether the
connectors are point-
ing up or down.
