DoorKing 1801-080 Manual

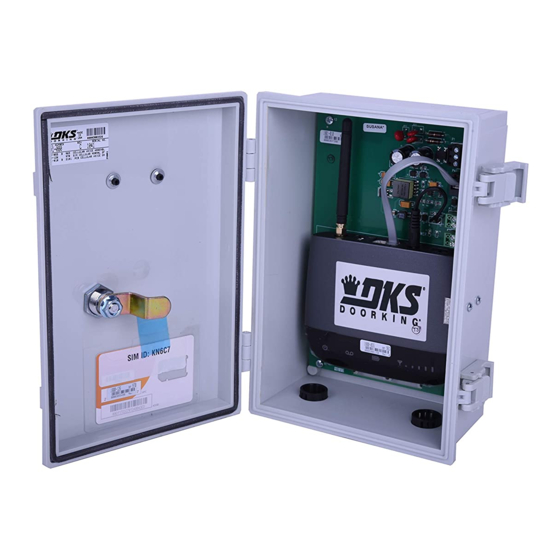

VOICE ONLY CELLULAR SYSTEM
This cellular device cannot
be used for 911 calls.
The VOICE ONLY Cellular System operates on DoorKing's cellular network that is hosted on the AT&T 4G LTE network where available. This
system provides voice communication ONLY (phone line) to specific DoorKing 1800 series telephone entry systems. There is NO programming
(data) service with this system. If VOICE and DATA are required, then the VOICE and DATA cellular system should be used (P/N 1800-080 sold
separately).
The VOICE ONLY Cellular System is designed to be used with specific DoorKing 1800 series telephone entry systems:
- 1802, 1803, 1808, and 1810 Standard entry systems using circuit board 1862-010.
- 1812 Classic entry system using circuit board 1871-010.
- 1812 Plus entry system using circuit board 1971-010.
The Voice ONLY cellular system MUST be wired to the entry system's phone line (voice).
The Voice Only cellular system will work with TWO 1800 entry systems connected to it. These are designated as System A and System B.

Prior to Installation:

An existing cellular phone will be needed to test the signal strength of
DoorKing's cellular network in the desired installation location.
Analog modems (Dial-Up) DO NOT work on a cellular network.
BEFORE the cellular system can be installed, the installation location MUST BE TESTED for
good cellular signal strength for reliable communication. TEST this location using an existing
active cellular phone with ANY of these cellular phone services that all use the same network:

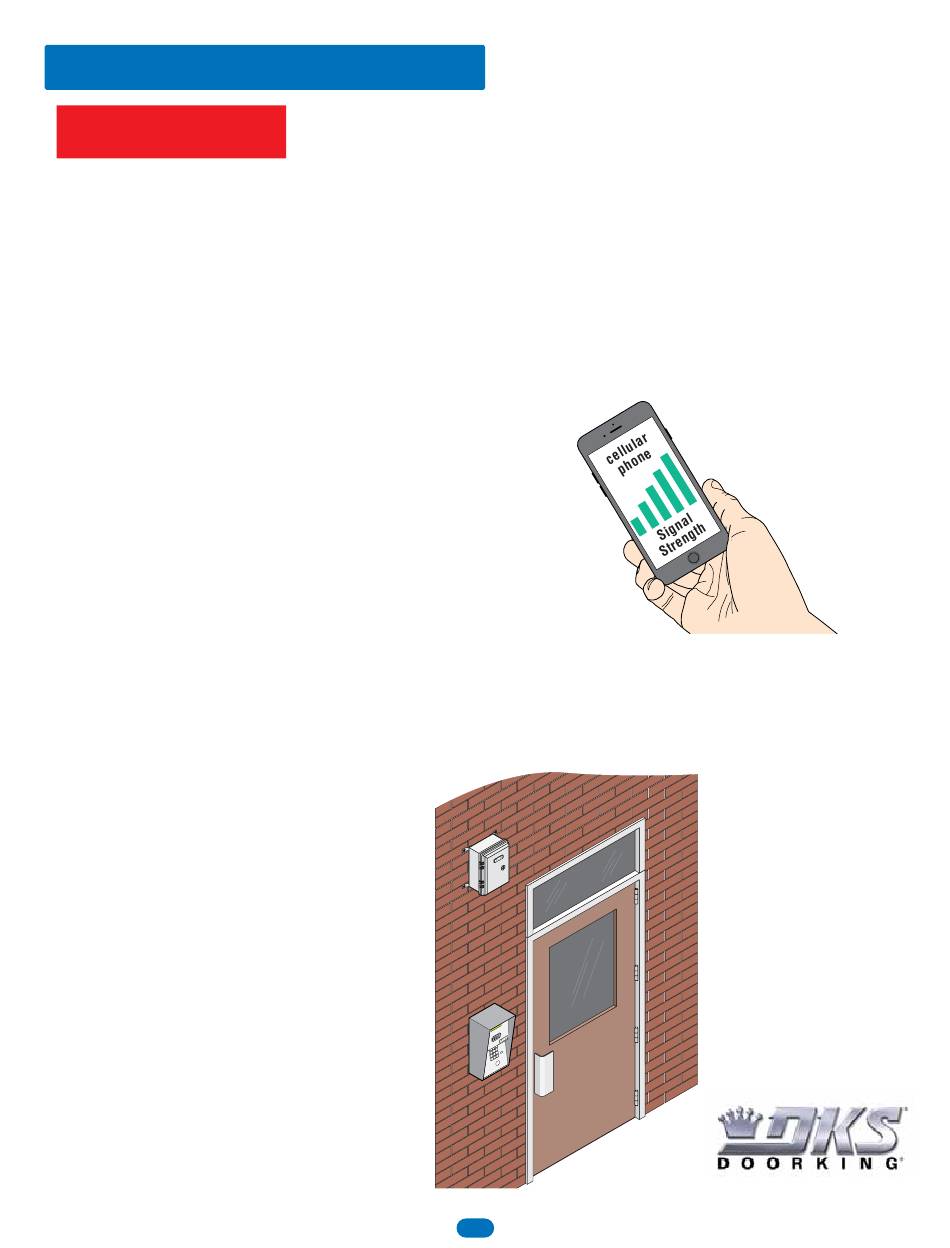

Activate the phone near the position where you want the plastic enclosure to be installed. 3-4 bars of signal strength should be indicated on the
phone for a reliable signal. If 3-4 bars are not achievable in that specific location, then try moving the phone around and see if at least 3-4 bars can
be achieved and maintained in a nearby location. DO NOT install the enclosure in a WEAK or NO signal area. Generally, the higher the enclosure
is mounted, the better the reception. This also helps protect against vandalism. The enclosure should be located to minimize the wire runs to
"SYSTEM A" 1800 telephone entry system. Keep the wire run between the two devices as short as possible, maximum 100 feet. This allows less
chance for lightning surges or other electrical interference to disrupt the cellular signal. Keep the enclosure away from any metal. This can also
disrupt the signal. After the 3-4 bar signal strength has been confirmed the installation can begin.
Installation Steps:
1. Install and wire cellular system to 1800(s) (pages 2&3).
Power up cellular system (page 3).
2.
Register cellular system (and 1800(s)) online, this can be
3.
done before or after cellular system has been installed (page 3).
Test cellular system (page 3).
4.
Troubleshoot cellular system if necessary (page 4).
5.
Note: Installation steps assume that a good cellular signal has
been tested at installation location and the 1800 system(s) has
already been setup and functioning including the master code
and multiple system programming if 2 1800s are being used.
1801-065-H-2-18
Destructive Attack:
Line Security:
Endurance:
Standby Power:
• AT&T
Note: Other cellular phone services
• Consumer Cellular
use different networks and will not
• Cricket Wireless
work for testing signal strength of
• Go Phone
the cellular system.
• Straight Talk
Copyright 2018 DoorKing, Inc. All rights reserved.
Level I
Level I
Level IV
Level I
l a r
l l u
C e
m
s t e
S y
A
E M
S T
S Y
1
DoorKing Part Number
1801-080
120 S. Glasgow Avenue
Inglewood, California 90301
U.S.A.
