ATP-71
Device Maintenance & Cleaning
©Parata 2015 All Rights Reserved.
Revised Date: July 2018

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ATP Series and is the answer not in the manual?

Questions and answers

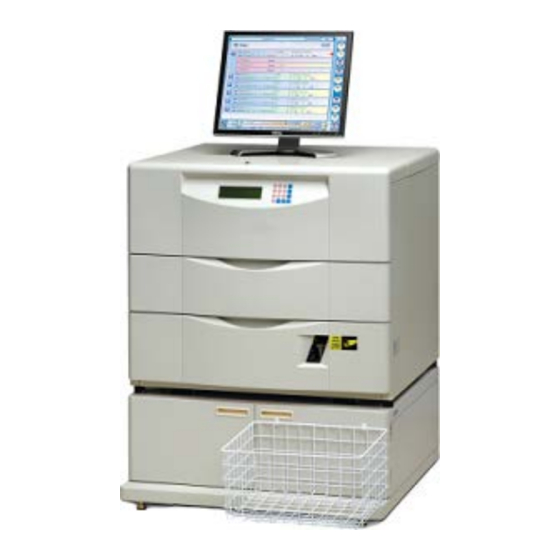

Summary of Contents for Parata ATP Series

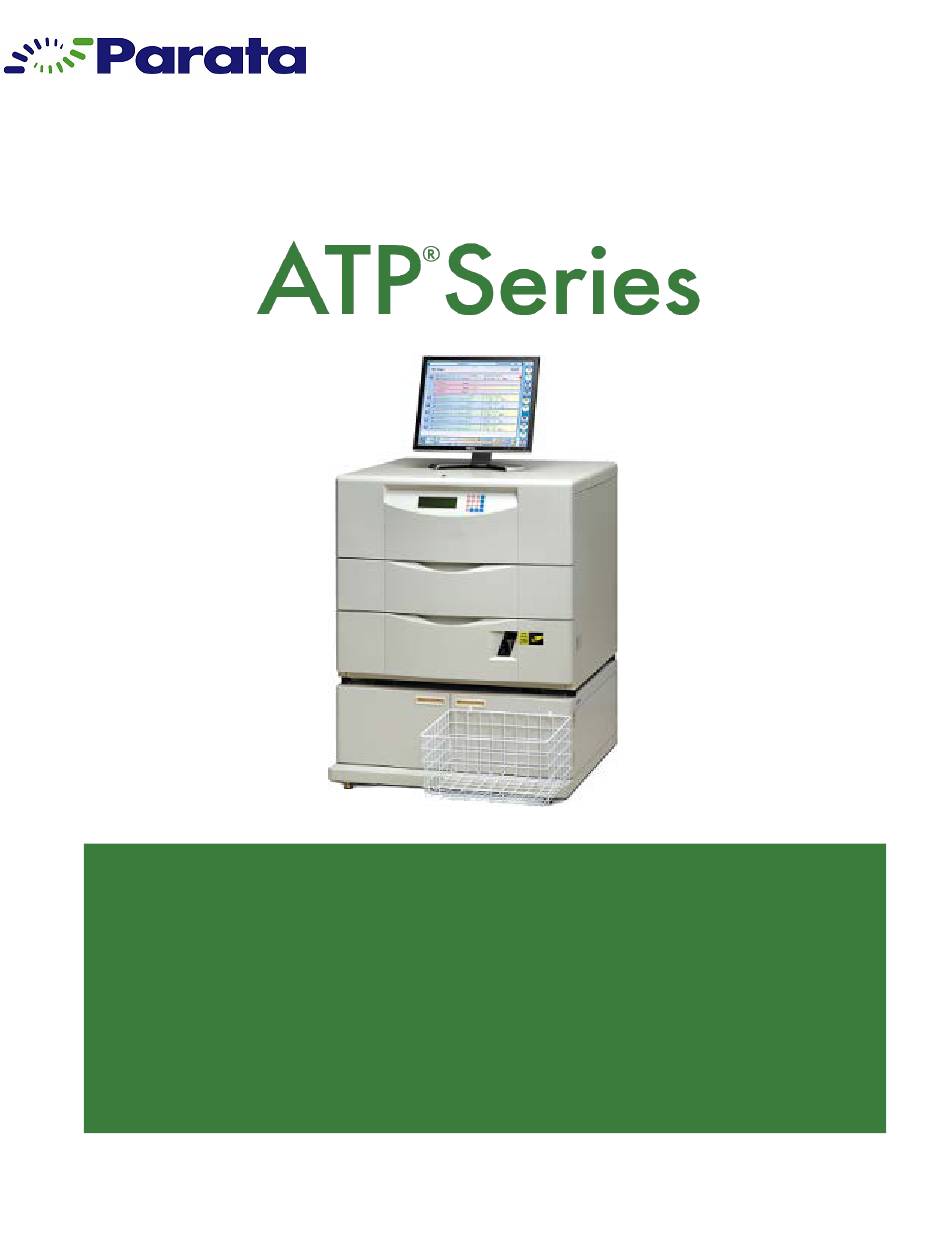

  • Page 1 ATP-71 Device Maintenance & Cleaning ©Parata 2015 All Rights Reserved. Revised Date: July 2018...
  • Page 2 Parata® reserves the right to make changes to the content of this manual, at any time, without obligation to notify any person or entity of such changes.

  • Page 3: Table Of Contents

    ATP-71 Device Maintenance & Cleaning TD79 TABLE OF CONTENTS CHAPTER 1: INSTALLATION ......................... 5 Introduction............................. 5 Operating Guidelines........................5 The ATP-71 Cabinet ......................... 6 Positioning the Cabinet ........................7 Connecting the Devices ........................8 Connecting to a Power Source ....................8 Powering Up the Device ......................
  • Page 4 ATP-71 Device Maintenance & Cleaning TD79 Before Calling for Service ......................28 Cabinet ............................28 Canisters ............................ 28 Parata Computer ........................28...

  • Page 5: Chapter 1: Installation

    ATP-71 Device Maintenance & Cleaning TD79 CHAPTER 1: INSTALLATION Introduction This chapter introduces the user to the installation and features of the Parata ATP-71 hardware. This chapter covers the following topics: • Operating Guidelines • The ATP-71 Cabinet • Positioning the cabinet •...

  • Page 6: The Atp-71 Cabinet

    ATP-71 Device Maintenance & Cleaning TD79 The ATP-71 device is designed to be operated under the following conditions: • In an indoor environment • At an altitude up to 6,563 feet (2000 meters) • Using a main power supply; supplying voltage that does not exceed 115 VAC +/- 10%, 60 Hz, <9.0 amperes, with transient overvoltage in accordance with UL Installation Categories (Overvoltage Categories) II.

  • Page 7: Positioning The Cabinet

    ATP-71 Device Maintenance & Cleaning TD79 Positioning the Cabinet Please observe the following precautions when determining where to locate the ATP-71: • The ATP-71 is for indoor use only. • Choose a cool, dry location that is conducive to the storage of medication. •...

  • Page 8: Connecting The Devices

    ATP-71 Device Maintenance & Cleaning TD79 Caution: Cabinets cannot be stacked. The cabinet should be placed on a sturdy, level surface such as a counter or table, within 10 centimeters (3.9 inches) of the wall. Please allow at least 65 centimeters (25 inches) of space in front of the cabinet so the doors may be opened freely.

  • Page 9: General Warnings And Cautions

    • This system cannot do the job of a registered pharmacist. An appropriate quality checking system should be used to ensure dispensing accuracy. • Use only parts and supplies approved by Parata is not responsible for any quality problems resulting from parts and/or supplies not approved by Parata.

  • Page 10: Chapter 2: Operation

    ATP-71 Device Maintenance & Cleaning TD79 • Select a level and sturdy floor surface for the ATP-71, and use an appropriate anti-tipping device. • Do not open multiple drawers at the same time, as this may cause the ATP-71 to topple forward.

  • Page 11: Emergency Shutdown Procedure

    ATP-71 Device Maintenance & Cleaning TD79 Emergency Shutdown Procedure The following emergency shutdown procedure should be performed if there is an emergency or if the machine appears to be operating out of its normal parameters. An abnormal situation might be indicated by smoke, fire, or electrical sparks inside of the machine. To shut down the machine in an emergency, the operator must pull the power cord from the electrical outlet (wall socket) to disable power.

  • Page 12: Cabinet Lock

    ATP-71 Device Maintenance & Cleaning TD79 Cancels prescription after dispensing alarm. Clears display screen in off-line mode. Used to switch between on-line and off-line modes. The Mode default setting is online. To go off-line, press this button for more than two seconds. Press again to go online. Used while in standby mode to produce seven empty bags.

  • Page 13: Anatomy Of Tablet Canister

    ATP-71 Device Maintenance & Cleaning TD79 Figure 2-2 hardware lock Note: If the ATP-71 hardware lock is used, be sure to keep a spare key in a safe location, as there is no other way to open the cabinet door if the lock is engaged.

  • Page 14: Installing Canisters

    ATP-71 Device Maintenance & Cleaning TD79 Canister number Figure 2-3 ATP-71 medication canister Installing Canisters Warning: Do not lean on the canister access door when open, as this may cause the ATP-71 to topple forward. Do not open more than one access door at a time, as this may cause the ATP-71 to topple forward.

  • Page 15: Using The Utc Tray

    ATP-71 Device Maintenance & Cleaning TD79 2. Pull the appropriate canister drawer towards the user. 3. Locate the canister to be filled. Verify that the product information on the top of the canister and the product information on the medication bottle match. 4.

  • Page 16: Installing Packaging Paper

    Caution: Avoid touching the ATP-71’s heating elements, as they are hot enough to cause burns. Use only packaging paper approved for use by Parata. Failure to use approved paper may result in damage to the ATP-71 device. 1. Open the lower drawer of the ATP-71 cabinet.
  • Page 17 ATP-71 Device Maintenance & Cleaning TD79 6. Insert paper curl protector between the clear and white sides of the packaging paper. See Figure 2-9 for a detailed view of the paper curl protector. Figure 2-9 Paper curl protector 7. Open pinch rollers, and draw at least eight inches (20 centimeters) of packaging paper between the rollers, as shown in Figure 2-10.

  • Page 18: Replacing The Ribbon

    To replace the ribbon, observe the following precautions: • Avoid unnecessary handling of the ribbon. • Always use a replacement ribbon specified by Parata. To replace the ribbon, do the following: 1. Pull the lower drawer of the ATP-71 out from the cabinet.

  • Page 19: Resolving Dispensing Problems

    ATP-71 Device Maintenance & Cleaning TD79 7. Following the path of the old ribbon, thread the new ribbon around the rollers in the ink ribbon compartment. When the new ribbon is installed it should look like the ribbon installation in figure 2-14. Figure 2-14 Install Ribbon 8.

  • Page 20: Cleaning Canisters

    ATP-71 Device Maintenance & Cleaning TD79 Figure 3-1 opening the cabinet door 2. Pull a canister drawer out from the cabinet toward the user. As shown in figure 3-2. Figure 3-2 Pulling out the Canister drawer 3. Clean away dust using a HEPA vacuum cleaner or soft cloth. Caution: There are three canister drawers.

  • Page 21: Cleaning Motor Bases

    Note: The separator on the base of the tablet canister may require periodic replacement by TCGRx’s service staff. If cracks or splits develop in the canister base, please contact Parata for assistance. (262)279-5307. Cleaning Motor Bases To clean the motor bases: 1.

  • Page 22: Cleaning The Hoppers

    ATP-71 Device Maintenance & Cleaning TD79 Cleaning the Hoppers To clean the hoppers: 1. Open the middle cabinet drawer by pulling it out towards the front of the cabinet. 2. Use a HEPA vacuum cleaner or lint-free dry cloth to clean the conveyor and/or hopper as shown in Figure 3-4.

  • Page 23: Cleaning The Paper Roll Mechanism

    ATP-71 Device Maintenance & Cleaning TD79 Cleaning the Paper Roll Mechanism Caution: Never insert fingers between the paper feed rollers, as the rollers may pinch and cause injury. To clean the paper roll mechanism: 1. Open the lower drawer of the ATP-71 cabinet. 2.

  • Page 24: Cleaning The Utc Tray

    ATP-71 Device Maintenance & Cleaning TD79 3. Unlatch the small hopper and lift it open toward the right. 4. Clean the faces of the heat seal bars with a scotch bright pad. 5. Inspect the anvil pad for particle build-up and then clean it if necessary. 6.

  • Page 25: Maintenance Schedule

    Maintenance Schedule Table 3-1 details the recommended preventive maintenance schedule for the ATP-71 device. These procedures must be performed in accordance with TCGRx’s instructions, and in some cases, may only be performed by authorized Parata service personnel. Maintenance item Recommended frequency...
  • Page 26 ATP-71 Device Maintenance & Cleaning TD79 In all the cases, once the Motor trouble: Motor is problem is corrected and the damaged. drawers closed; press the start button on the front panel. UTC Alarm UTC tray has not been reset Refill the UTC tray.
  • Page 27 ATP-71 Device Maintenance & Cleaning TD79 Change the printer head. Envelopes are not being Sealer Alarm Press the Start button on sealed correctly. the front panel. If the alarm continues, call service for assistance. Shutter Alarm The shutter on the small Press the Start button on hopper is not opening or the front panel.
  • Page 28 3. Try moving a canister to a different position and observe how the machine responds. 4. Check the output photosensor and clean if necessary. Parata Computer 1. Determine whether the PC and monitor are powered on (check that the LED lamps in the front of each device are lit).
