M301 Security Door Lock - 170725 - rev3.0
Find more information and help for your product at the following
O cial website: http://www.sciener.co
Please read this manual carefully before installation
●
Please contact us at +6016-8220059 for assistance with installation, commission-
ing, etc. that have not been listed in the user's installation manual.
●
The performance of this product is under continuous improvement, subject to
change without notice.
Anti-theft door lock
Product Installation and Parts List
●
Note: The door lock frame is greater than 110mm, and the door thickness can
be installed in the range of 40mm ~ 100mm.
Package list:
Front panel
(M4*16)3Piece
2.5mm hex wrench
Model
Dimensions
Material
Weight
Communication Methods
Supporting systems
Stand-by current
Operating current
Power supply
Unlock time
(M4*20)3Piece
Mechanical
Keys x 2
Deadlatch
M301
W68mm x H155mm x T76mm
Shell zinc alloy / lock body iron
2.0KG
Bluetooth 4.0ble
Android 4.3 / iOS 7.0 above
≈35µA
≈200 mA
4 AA Alkaline 1.5V Batteries (LR6) (6V)
≈1.5 second
Back panel
(M4*25)3Piece
Strike plate
Strike box
Contains: brochures, openings template
Installation manual
(with lock body)
Front panel
rubber gasket
(M4*30)3Piece
59mm spindle. Applicable
doorthickness: 38-43mm
66mm spindle. Applicable
door thickness: 44-49mm
71mm spindle. Applicable
door thickness: 50-55mm
(with handle)
Back panel
rubber gasket
Advertisement
Summary of Contents for Sciener M301

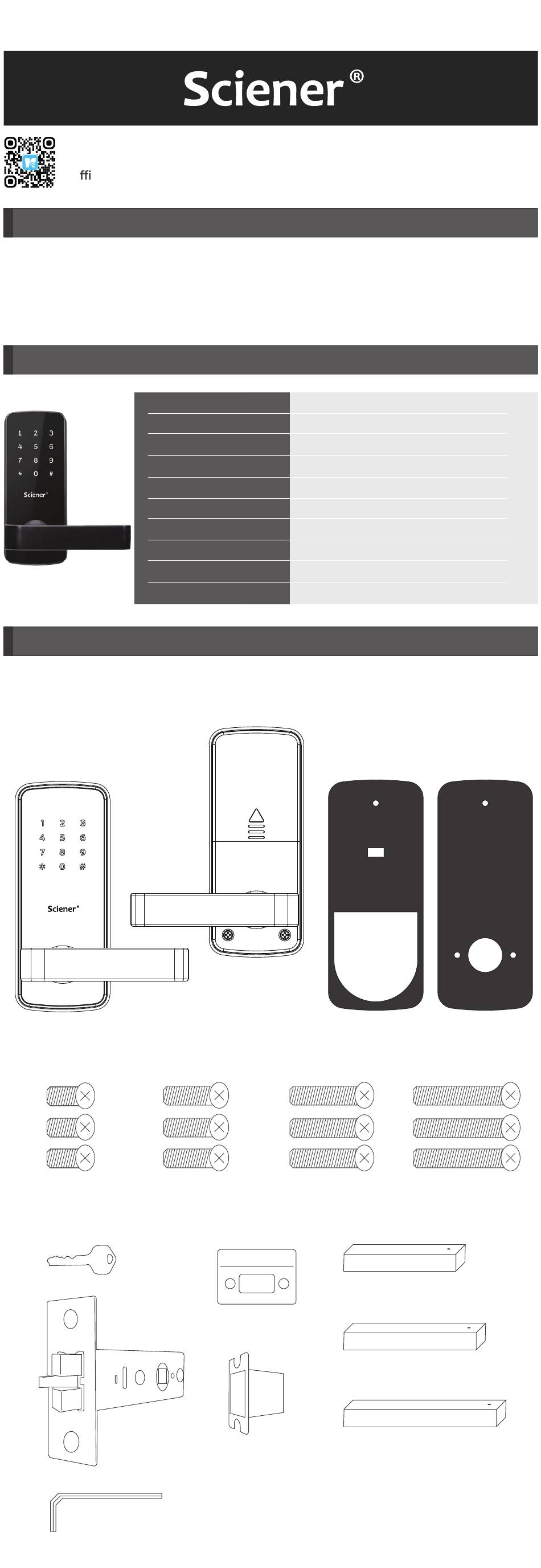

- Page 1 M301 Security Door Lock - 170725 - rev3.0 Installation manual Find more information and help for your product at the following O cial website: http://www.sciener.co Please read this manual carefully before installation ● Please contact us at +6016-8220059 for assistance with installation, commission- ing, etc.
- Page 2 Sciener App QR scan and download Visit the o cial website: http://www.sciener.co and download the newest app or scan the QR code on the left side to download.
- Page 3 Install deadlatch and lock cylinder ● Please install under the guidance of a professional. ● In case of special circumstances, please handle the lock gently in order to avoid damage! screw screw Warning Installation Notes If your door lock hole, panel mounting holes and our products do not match, experts need to refer the illustration [drilling hole] and adjust the hole, non-professionals do not drill holes, to avoid causing damage！...
- Page 4 Before installation / back panel Installation steps Step 1: Fix the back panel to the door according to figure ① Step 2: Place the front rubber plate (figure ②) and the fixed plate (figure ③) and fix the 2 screws ...
- Page 5 Emergency Power Interface on the Front Panel Micro USB Emergency Power Supply port If the lock is not used for a long time, the battery power will decrease. Use Micro USB power source to recharge.
