Frequency Central System X S/H Noise Build Documentation

Hide thumbs
1
2
3
4

Advertisement

Table of Contents

Frequency central
Build documentation for:
System x s/h noise
Based on the Roland 100M 150 module
10K Lin
10K Lin
1M Rev Log 100K Log 100K Lin
100K Lin

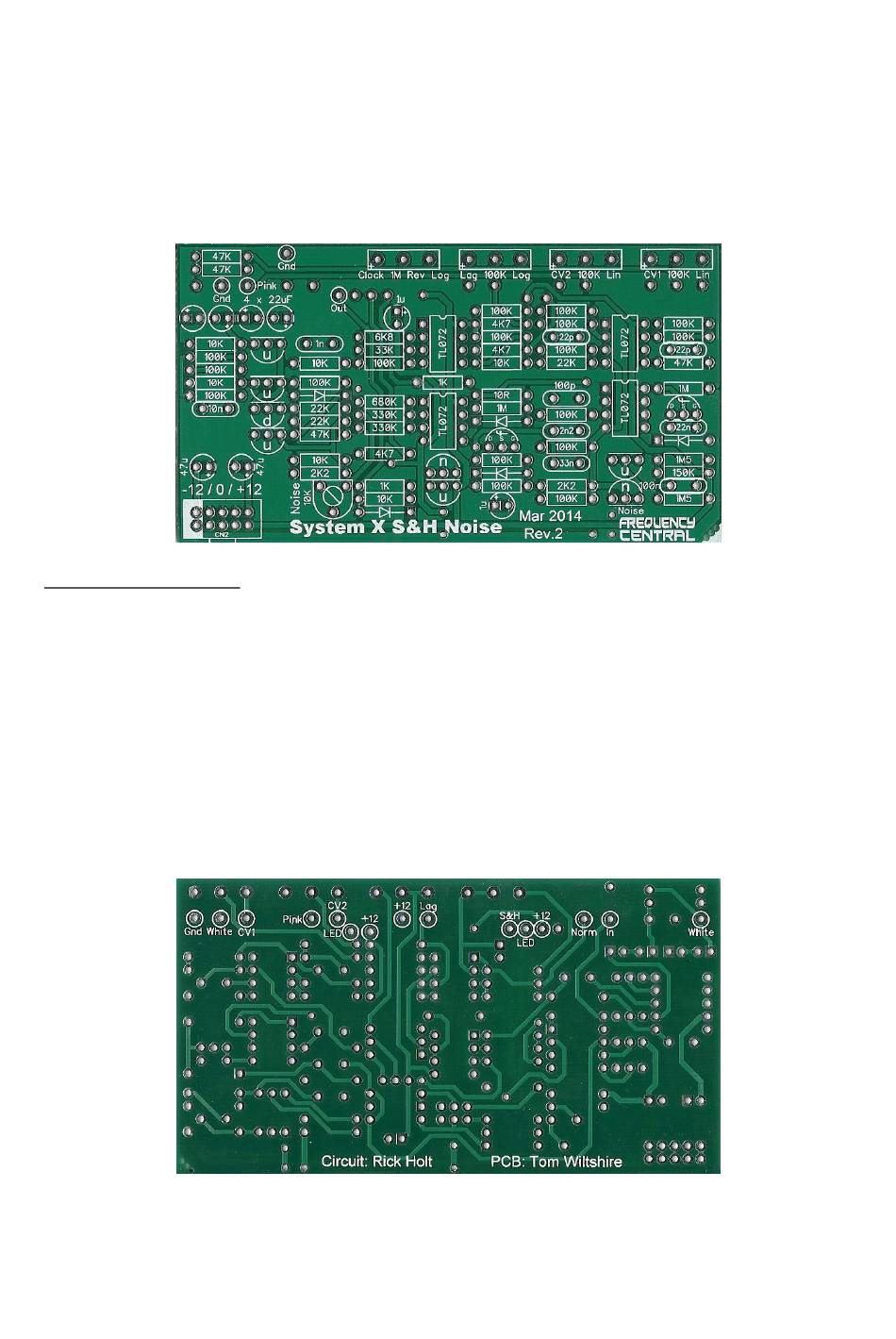

Key to PCB screen print:
n: This signifies NPN BC547 transistors. Note the correct pinout as shown by the half circles.
p: This signifies PNP BC557 transistors. Note the correct pinout as shown by the half circles.
f: This signifies FET 2N5485 transistors. Note the correct pinout as shown by the half circles.
Noise (above FC logo): This is the transistor used to generate the white/pink noise. Just a stock
BC547 is fine for this. But if you really wanna use that vintage mushroom cap BC178 that you pulled
from a 1970's Farfisa organ – you go girl!
The PCB shows the correct orientation for BC547/BC557/2N5485. Other transistor types can be
used, but please observe the correct pinout.
Please observe the correct polarity of the electrolytic capacitors.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the System X S/H Noise and is the answer not in the manual?

Questions and answers

Related Manuals for Frequency Central System X S/H Noise

Summary of Contents for Frequency Central System X S/H Noise

  • Page 1 Frequency central Build documentation for: System x s/h noise Based on the Roland 100M 150 module 10K Lin 10K Lin 1M Rev Log 100K Log 100K Lin 100K Lin Key to PCB screen print: n: This signifies NPN BC547 transistors. Note the correct pinout as shown by the half circles.
  • Page 2 Bill of Materials 10R x 1 22pF x 2 TL072 x 4 1M Rev Log x 1* 1K x 2 100pF x 1 BC547 x 7 100K Log x 1 2K2 x 2 1nF x 1 BC557 x 1 100K Lin x 2 4K7 x 3 2.2nF x 1 2N5485 x 2...
  • Page 3 Now it’s time to wire the PCB to the panel hardware. As there are rather a lot of connections to make, I’ve broken this down into two section. It’s worth reading both sections before you start soldering! Wiring the PCB to the panel hardware – Part I I recommend Kobiconn sockets (or clone) for this build.
  • Page 4 Wiring the PCB to the panel hardware – Part II We are going to work our was across the PCB from left to right (see photo). 1. Pink Out socket: socket output connects to Pink pad. Connect socket ground to Gnd pad. 2.
