Summary of Contents for JBJ REACTION PRO Series

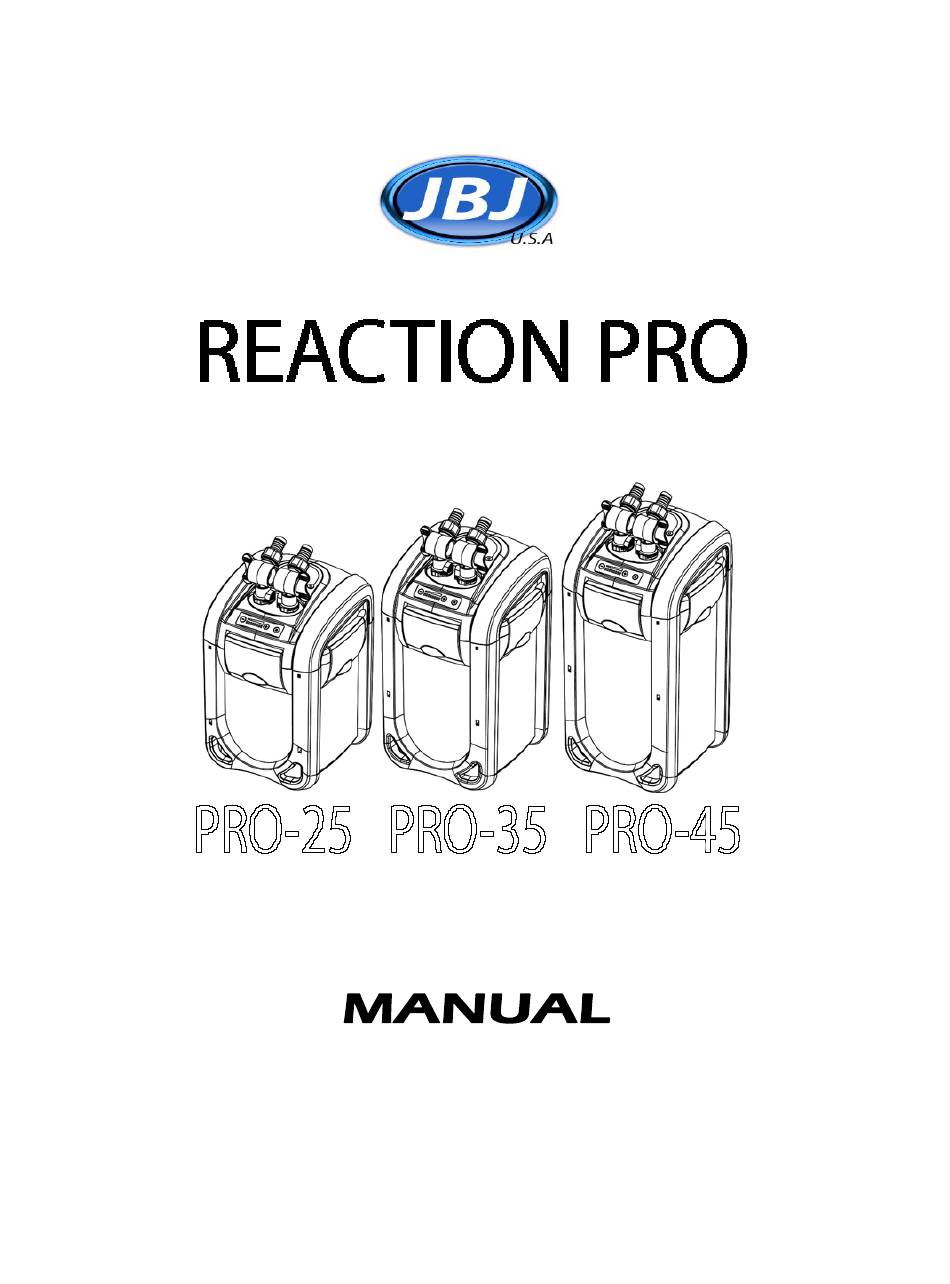

  • Page 1 WWW.JBJLIGHTING.COM...
  • Page 2: Table Of Contents

    TABLE OF CONTENTS 3—5 IMPORTANT SAFETY INTRUCTIONS INTRODUCTION Parts View & Specifications Unpacking Unpacking GETTING STARTED Removing Canister Lid Attaching Canister Lid Hose Connection to Valve Connecting Valve to Canister Lid Plumbing Assembly Inlet / Outlet Pipe Placement OPERATING Opening Valves & Powering Up Auto Priming/Siphon Adjusting Water Level 15-16...
  • Page 3: Important Safety Intructions

    WARNING To guard against injury, basic safety precautions should be ob- served, including the following: READ ALL SAFETY INSTRUCTIONS BEFORE USE. DANGER To avoid possible electric shock, special care should be taken since water is employed in the use of aquarium equipment. For each of the following situations, do not attempt to repair your- self: return the appliance to an authorized service facility for ser- vice or discard the appliance.
  • Page 4 (Continued from pg 3) If the plug or the receptacle do get wet, DON’T unplug the cord. Disconnect the fuse to the circuit breaker that supplies power to the appliance. Then unplug and examine for the pres- ence of water in the receptacle. Close supervision is necessary when any appliance is used by or near children.
  • Page 5 Make sure that all hose connections are firmly secured be- fore turning on this filter. Never look directly at the UV lamp, which may cause discomfort to eyes and skin. Always unplug canister filter before performing any mainte- nance. CLEANING It is important to keep this appliance clean.
  • Page 6: Parts View & Specifications

    PARTS EXPLODED VIEW & IDENTIFICATION Reaction Pro Canister PRO-45 PRO-25 PRO-35 Specifications MODEL  TANK SIZE  PUMP  DIMS  Flow Rate  Power  UV  LxWxH  PRO‐25  125  80‐425  4‐30W  4W  9.45"x9.45"x16.18"  PRO‐35  145  80‐425  4‐30W  4W  9.45"x9.45"x18.31"  PRO‐45  165  80‐425  4‐30W  4W  9.45"x9.45"x20.51" ...
  • Page 7: Unpacking

    What’s Included in the Box Carefully unpack your new REACTION PRO. Inspect all its compo- nents and confirm all parts are included before using. Report any damages or missing components to: Toll Free—877-374-9981 Email—warranty@jbjlighting.com 1—Reaction Pro Canister Filter 1—24V DC Plug Plumbing Kit...
  • Page 8: Getting Started

    GETTING STARTED Removing Canister Lid  Pull locking Pull out the Separate lock- Lift filter lid clamp up- and remove top part of left ing clamps wards and from canister & right lock- from locking outwards ing clamps support on both size Clean before use.
  • Page 9: Attaching Canister Lid

    GETTING STARTED Attaching Lid back onto Canister  Line up gaps Press the left Press down Fasten top for power & right lock- the front and edge of lock- cord ing clamps back locking ing clamp to the locking downward & clamps support inward...
  • Page 10: Unpacking

    GETTING STARTED Connecting Valve to Canister Lid Insert valve Locate the Push valve onto onto canister lid inlet and out- canister lid. by pressing the let male con- release on the nections on valve canister lid Plumbing assembly Assembly Outlet and Inlet Pipe according the dia- gram below.
  • Page 11: Inlet / Outlet Pipe Placement

    GETTING STARTED Inlet / Outlet Placement  Place inlet pipe in aquarium. Use suction cups to secure to aquarium wall.  Place outlet pipe in aquarium. Use suction cups to secure to aquarium wall  Below are some suggestions for placement of the inlet and outlet pipes...
  • Page 12: Opening Valves & Powering Up

    OPERATION Opening Valves Once you have securely installed the inlet / outlet pipes you can open the valves as shown below. Power up Confirm all plumbing connections are secure before powering up Reaction Pro Canister.  Insert DC Adaptor plug into Canister Lid ...
  • Page 13: Auto Priming/Siphon

    OPERATION Auto Priming/Siphon  Press “S” Button once to automatically siphon water through and push the air out of the canister. This will run for 12 seconds  If the water is not pumped through you will need to repeat until water is pumped through.
  • Page 14: Adjusting Water Level

    OPERATION Adjusting Water Level Adjust the height or angle of the return hose back into your  aquarium to your specific needs. If you have chosen to use the RETURN NOZZLE, you can  turn the nozzle to face upwards for more surface tension or downwards for more movement at the bottom of the aquarium.
  • Page 15: Maintenance

    MAINTENANCE Water Changes Regular maintenance is the key to a successful thriving  aquarium. Maintaining an aquarium can be very easy with a regular cleaning schedule. Water changes should be carried out on monthly to bi-  monthly schedule depending on how much bio-load is kept.
  • Page 16 REPLACING THE FINE WHITE FILTER FLOSS A. White Filter Floss should be changed on a monthly basis to remove small trapped debris and free floating particulate matter. REPLACING THE COARSE BLACK SPONGE A. Black Coarse Sponge should be changed on a monthly ba- sis to remove medium to large trapped debris and free float- ing particulate matter.
  • Page 17: Cleaning / Replacing Impellor

    CLEANING/REPLACING IMPELLER Remove Canister Lid from Canister  From the underside—locate pump coupling.  Turn coupling to loosen from Canister Lid  Pull Coupling up  Pull out Impellor and shaft ...
  • Page 18: Replacing Uv Bulb

    REPLACING UV-C LAMP The UV-C lamp within the Reaction Pro Canister Filter requires replacement after 9-12 months use. Always disconnect the power supply and NEVER look directly at the lamp. Tools Required: Phillips Screwdriver Unscrew the (4) screws from  the underside of the cover.
  • Page 19 NOTES...
  • Page 22: Warranty

    WARRANTY INFORMATION 1 Year Limited Warranty This REACTION PRO is warrantied to the original purchaser against de- fective material and workmanship for 1 Year from the date of original pur- chase. This warranty is valid only under the following conditions: additions, modifications, or changes made to the product by the purchaser and not by the manufacturer shall void this warranty.
  • Page 23 Address: __________________________________________________ City: _____________________________________________________ State: ____________Zip:_____________________________________ Phone#: __________________________________________________ Email:____________________________________________________ Yes I would like to receive emails on JBJ News—New Products, Sales, Rebates No I do not want receive emails on JBJ News Date of Purchase: ___________________________________________ Model_____________________________________________________ Dealer Purchased From:...
  • Page 24 Fold Here Stamp Transworld Aquatic Enterprises, Inc 3730 W. Century Blvd #3 Inglewood, CA 90303 Phone: (877) 374-9981 JBJLIGHTING.COM...

This manual is also suitable for:

Reaction pro-25Reaction pro-35Reaction pro-45
