Summary of Contents for Home Collection 088-1608-2

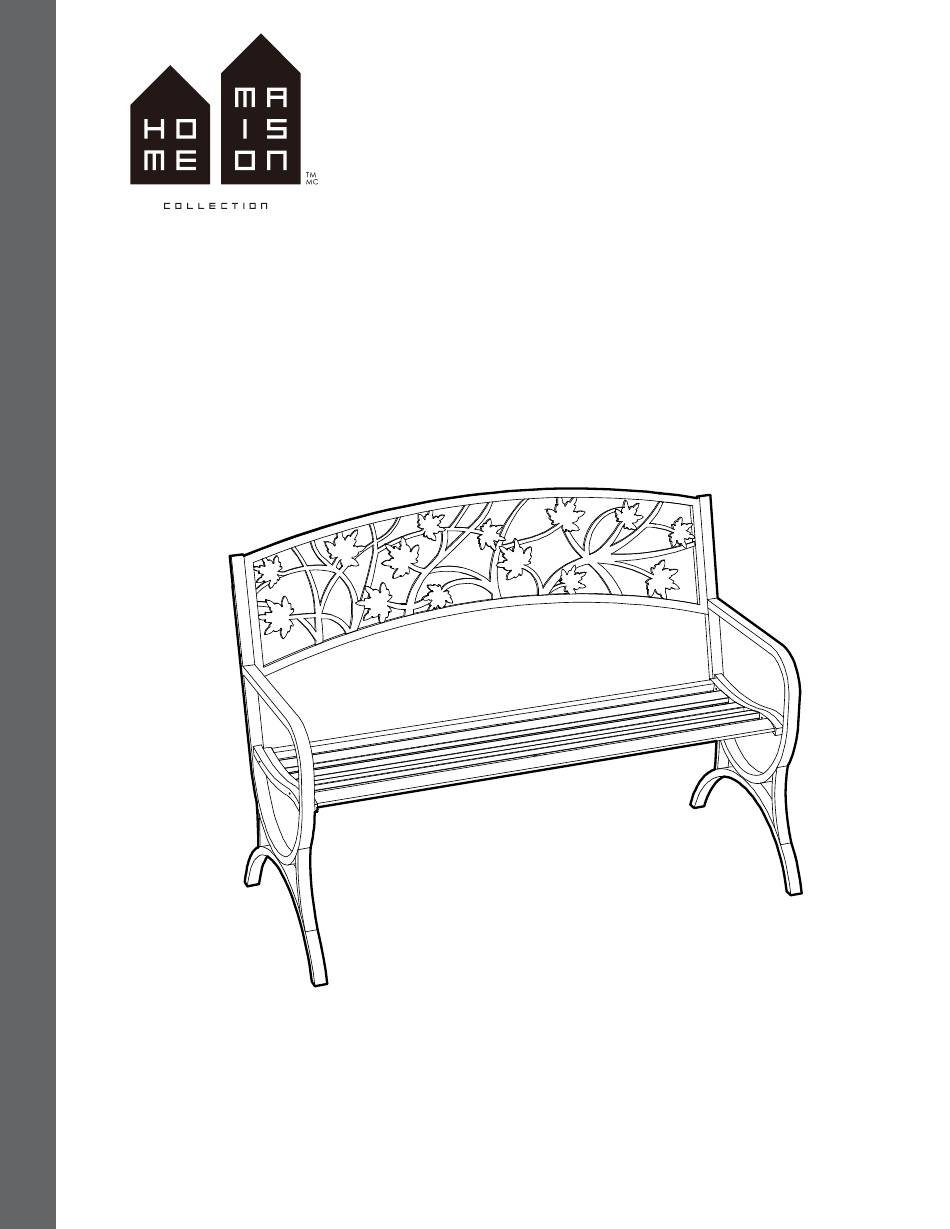

- Page 1 Maple Leaf Park Bench MODEL NO. 088-1608-2 ASSEMBLY INSTRUCTIONS Toll-free : 1-866-578-6569 IMPORTANT: Please read this manual carefully before beginningassembly of this product. Keep this manual for future reference. Production No. XXXXXXXX...
- Page 2 MADE IN CHINA IMPORTED BY TRILEAF DISTRIBUTION TRIFEUIL TORONTO, CANADA M4S 2B8...
- Page 3 Table of Contents Important Safety Instructions Parts List Assembly Care & Maintenance Technical Data Warranty WARNING: Repeated assembly can weaken the locking ability of the washers. Please periodically check all bolted connections on your bistro to ensure they are tight and secure. DO NOT over-tighten any screws or nuts.
- Page 4 Model No. 088-1608-2 P30111A01107 H05040C 11 Screen Back - 1 Bolt M6*40 –4+1 Spare H04050C11 P30023A01107 Bolt M6*50 –4+1 Spare Screen Armrest - 2 H12001C11 P30212A01107 Flat Washer M6–4+1 Spare Screen Seat - 1 H22001C11 Nut M6 –4+1 Spare H0001M12 Wrench M6/M8 –1...
- Page 5 STEP 1:Assembly of Armrest and Seat...
- Page 6 Model No. 088-1608-2 STEP 2:Assembly of Back...
- Page 7 26.5 lbs 12 Kg ™ This Home Collection product carries a one (1) year warranty against defects in workmanship and materials. Trileaf Distribution agrees to replace the defective product free of charge within the stated warranty period, when returned by the original purchaser with proof of purchase.
