Profelmnet ERMIS-4 Manual

Sliding gate motor up to 400 kg
Hide thumbs
1
2
3
4
5
6
7

Advertisement

Table of Contents

SLIDING GATE MOTOR UP TO 400 KG
24VDC
ERMIS-4

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ERMIS-4 and is the answer not in the manual?

Questions and answers

Summary of Contents for Profelmnet ERMIS-4

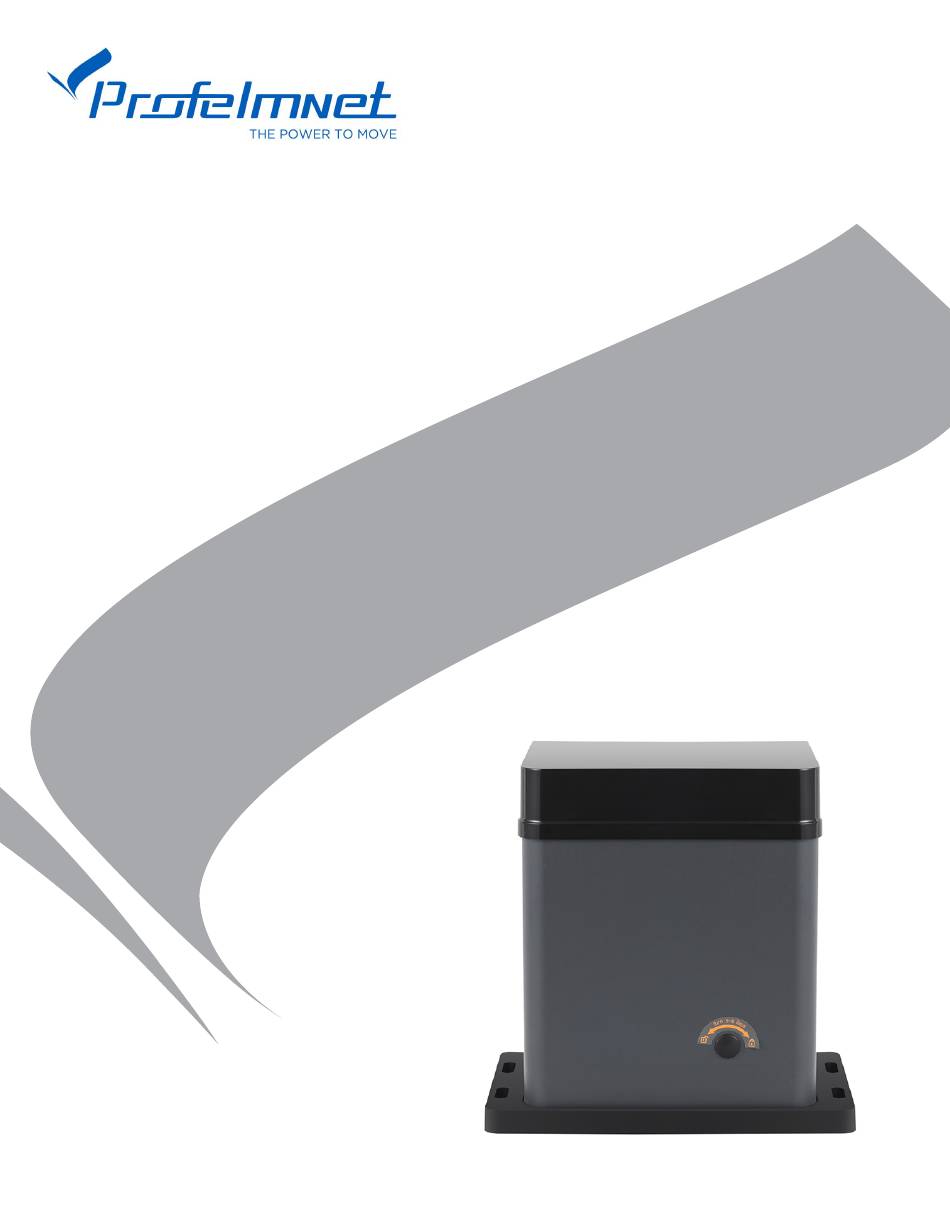

  • Page 1 SLIDING GATE MOTOR UP TO 400 KG 24VDC ERMIS-4...
  • Page 2 ERMIS-4 SLIDING GATE MOTOR UP TO 400KG 1. Important Safety Information Carefully read and follow all safety precaution and warnings before attempting to install and use this operator, incorrect installation can lead to severe injury. The gate operator should be installed by a qualified technician; otherwise, serious ...
  • Page 3 Bolt 54±7mm Installation and Adjustment The ERMIS-4 rack-driven gate operator operates by forcing a drive rack past a drive gear. The entire configuration is shown in Fig.1. The gate operator must be installed on the inside of the gate. Gate preparation Be sure the gate is properly installed and slides smoothly before installing the sliding gate operator.
  • Page 4 ERMIS-4 SLIDING GATE MOTOR UP TO 400KG Infrared photocell Located block Block Infrared photocell Alarm lamp Gate operator Button switch or keypad Conduit In order to protect the wires, use PVC conduit for wires, conduit must be set into the concrete when it is poured.
  • Page 5 ERMIS-4 SLIDING GATE MOTOR UP TO 400KG Installing the rack Manually move the gate to its closing position.  Place the three threaded pawls (in the same package with rack) on the rack element.  Lay the first piece of rack on the gear and weld the first threaded pawl on the gate.
  • Page 6 ERMIS - 4 SLIDING GATE MOTOR UP TO 400KG Spring limit switch Install the block as shown in Fig.5. Release the gear clutch with the key and push the sliding gate manually to pre-determine the position, screw the block to the rack and then tighten the gear clutch with the key.
  • Page 7 In accordance with Annex II B of Machinery Directive 2006/42/CE , the importer L.PSARROS AND SIA OE With the present we declare that the following products: ERMIS-8 / ERMIS-4 εis according to European Directives requirements of EMC 2006/42/EC and LVD Directive...
