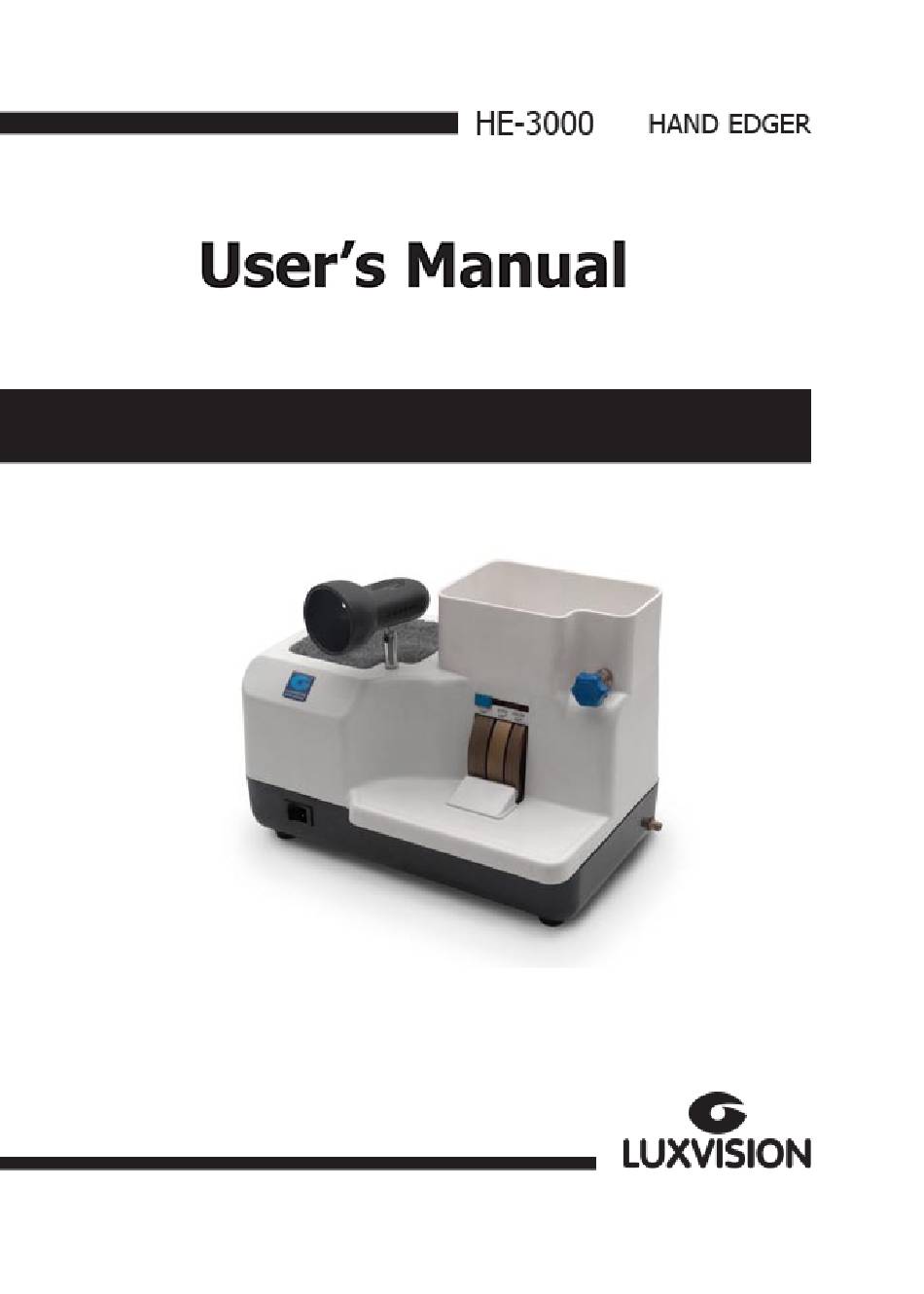

luxvision HE-3000 User Manual

Hand edger

Table of Contents

Need help?

Do you have a question about the HE-3000 and is the answer not in the manual?

Page 2 Notification Dear Users, Thank you for your purchase of HE 3000 Hand Edger Manual. Please take time to read our user’s manual carefully before use. This guarantees you to make full use of this unit and prolongs the operation life of this unit.
Page 3 Content Name of Parts ....................4 Accessories ....................4 Operation .......................5 Precaution .....................5 Common trouble Shooting ................5 Specifications ....................6...
Page 4 1. Name of Parts Water can Tools table Water valve Working lamp Adjustable valve of water level Motor switch Three-in-one combinative grinding wheel Lamp switch Sponge Low hose adaptor 2. Accesories one hose one lamp one piece of sponge one oilstone stick...
Page 5 3. Operation Open the carton and take out the foamed plastic cover. Then take the machine out carefully and place it on a big enough and quite stable desk. Please check the accessories, connect the exhaust hose, pour clean water into water can, adjust the adjustable valve of water level, open the water valve, turn on the working lamp and the motor switch.
Page 6 6. Specifications Dimensions (L*W*H) Net.Weight 395*245*295mm 7.8kg Specification Timer Power Requirement 1-5min AC KXM20V/60HZ AC 200-240V/50Hz...
Page 7 LUXVISION, Inc. shall not be liable for any errors or for incidental or consequential damages in connection with the furnishing, performance, or use of this manual or the examples...
