Summary of Contents for ArcTiv Technologies EDGE Series

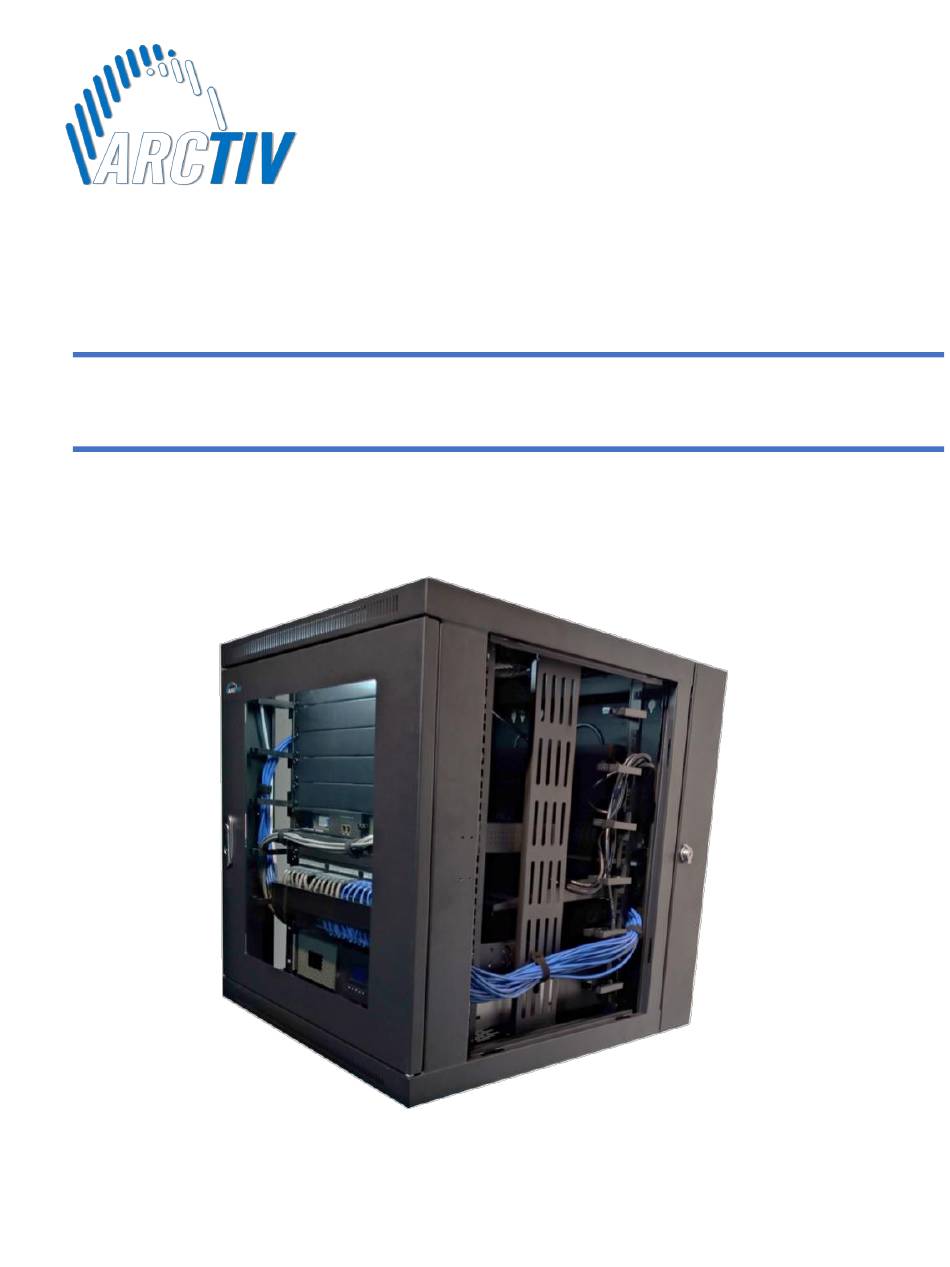

- Page 1 OWNER’S MANUAL: EDGE-SERIES – SWING GATE WALL MOUNT CABINETS ™ OWNER’S MANUAL EDGE-SERIES CABINETS Swing Gate Wall Mount Cabinet © 2018 ArcTiv Technologies, LLC ATSGWM-MANUAL-01...
-
Page 2: Table Of Contents
High-capacity fans and isolation accessories support higher-powered equipment Flexible Mounting Wall mounting kit, castors and mounting feet to place on the wall, floor or desktop Greater RMU Capacity 4-post mounting rails and rear 2U mounting provide front and rear equipment installation © 2018 ArcTiv Technologies, LLC ATSGWM-MANUAL-01... -
Page 3: Safety Instructions
• Do not reship the enclosure with additional equipment. The combined weight of the enclosure and installed equipment must not exceed the load capacity of the pallet. ArcTiv Technologies is not responsible for any damage that occurs during reshipment. -
Page 4: Specifications
ATLESHELF Light Equipment Shelf ATFSHELF350 Fixed Shelf, 350mmD ATSSHELF350 Sliding Shelf, 350mmD Other ATLEDLIGHT LED Light AT2CASTOR 2" Castors (2 w brake, 2 w/o brake) Pack of 4 ATMTFEET Mounting Feet Pack of 4 © 2018 ArcTiv Technologies, LLC ATSGWM-MANUAL-01... -
Page 5: Shipping & Packaging
WARNING: The individual user should take care to determine prior to use whether this device is suitable, adequate or safe for the use intended. Since individual applications are subject to great variation, the manufacturer makes no representation or warranty as to the suitability or fitness of these devices for any specific application. © 2018 ArcTiv Technologies, LLC ATSGWM-MANUAL-01... -
Page 6: Cabinet Installation
Use standard hand tools to remove prior to installation on the wall. To open the back gate, there is a rear-lever which can be unlocked. This lever is a locking device which can be released by the common key as the front door handle. © 2018 ArcTiv Technologies, LLC ATSGWM-MANUAL-01... - Page 7 (vented or solid). Remove the side panel by unlocking the small round lock and pressing on the quick releases. Once removed, this will provide open access to the equipment and cables for easy servicing. Lock Quick Release Keys © 2018 ArcTiv Technologies, LLC ATSGWM-MANUAL-01...
-
Page 8: Equipment Installation And Servicing
The individual D-Rings can rotate in order to allow a smooth transition of cables from the horizontal manager to the vertical channel. This is easily completed by slightly loosening the mounting screw with a Philips screwdriver, rotating the D-Ring and then tightening to the desired position. © 2018 ArcTiv Technologies, LLC ATSGWM-MANUAL-01... - Page 9 Mounting Feet Installation Each cabinet can support a pack of 4 mounting feet (not included) which can be used for floor or desktop mounting. Each kit can be installed with a Philips screwdriver. © 2018 ArcTiv Technologies, LLC ATSGWM-MANUAL-01...
- Page 10 If you have questions about this product or need technical support, please contact us or visit our website. ArcTiv Technologies, LLC 30 N Gould St Ste R, Sheridan, WY 82801 sales@arctiv-tech.com www.arctiv-tech.com ™ Copyright (c) 2018 All Rights Reserved Latest Revision: November 30, 2018 © 2018 ArcTiv Technologies, LLC ATSGWM-MANUAL-01...
