motor:bit Introduction
Introduction

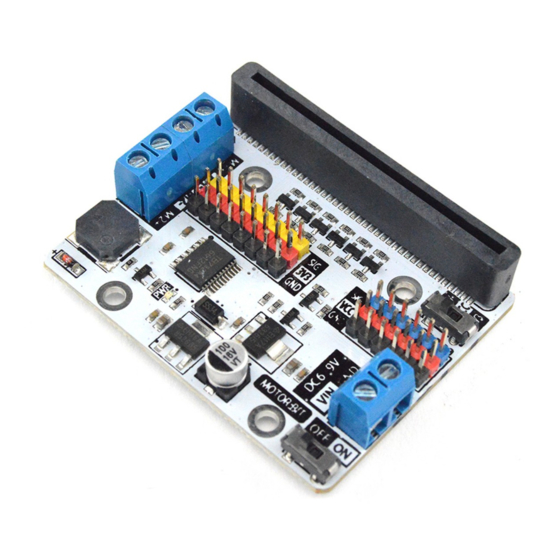

Motor:bit is a motor driving board based on micro:bit. It has integrated a TB6612
motor driving chip, which is used to drive two motors with maximun 1.2A DC single
channel current. It has also integrated 12 GVS ports(for connecting OCTOPUS series
of electric bricks) and 1 IIC communication port. These ports allow you to extend
with various sensors and electric modules. On the board, P3-P7, P9-P10 are IO ports
for directly driving 3.3V devices; P13-P16, P19-P20(IIC port) support 3.3V/5V
voltage switch. Sliding the voltage switch onboard, it is available to drive 3.3V or 5V
devices. Besides, you can play music with the buzzer on motor:bit. Motor:bit is
totally designed for DIYers. You can use it to create your own smart car or more
funny projects.
https://www.elecfreaks.com/learn-en/motor_bit_v16/
motor:bit Introduction - ElecFreaks Learn-en
1/16
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Elecfreaks Motor:bit
Summary of Contents for Elecfreaks Motor:bit
- Page 1 Introduction Introduction Motor:bit is a motor driving board based on micro:bit. It has integrated a TB6612 motor driving chip, which is used to drive two motors with maximun 1.2A DC single channel current. It has also integrated 12 GVS ports(for connecting OCTOPUS series of electric bricks) and 1 IIC communication port.
- Page 2 3/1/2019 motor:bit Introduction - ElecFreaks Learn-en Features Support 2 DC motors and the max driving current of each single channel is 1.2A. Extend 14-channel IO ports and lead out it by GVS pins. Among it, 6 ports support 3V/5V voltage switch.
- Page 3 3/1/2019 motor:bit Introduction - ElecFreaks Learn-en Dimension https://www.elecfreaks.com/learn-en/motor_bit_v16/ 3/16...
- Page 4 3/1/2019 motor:bit Introduction - ElecFreaks Learn-en De nition of Pins https://www.elecfreaks.com/learn-en/motor_bit_v16/ 4/16...
- Page 5 3/1/2019 motor:bit Introduction - ElecFreaks Learn-en Introduction of Major Components M1-M2 Motor Connector https://www.elecfreaks.com/learn-en/motor_bit_v16/ 5/16...
- Page 6 3/1/2019 motor:bit Introduction - ElecFreaks Learn-en M1 and M2 can separately connect a DC motor with max current of 1.2A. Passive Buzzer https://www.elecfreaks.com/learn-en/motor_bit_v16/ 6/16...
-
Page 7: Power Switch
3/1/2019 motor:bit Introduction - ElecFreaks Learn-en Once a passive buzzer is connected to the P0 port on micro:bit, it can play music. Power Switch https://www.elecfreaks.com/learn-en/motor_bit_v16/ 7/16... -
Page 8: Power Connector
3/1/2019 motor:bit Introduction - ElecFreaks Learn-en Slide the switch to ON, power is connected; slide the switch to OFF, power is disconnected. Power Connector https://www.elecfreaks.com/learn-en/motor_bit_v16/ 8/16... - Page 9 3/1/2019 motor:bit Introduction - ElecFreaks Learn-en Power connector is available to connect with 6-12V DC power. VCC Voltage Switch https://www.elecfreaks.com/learn-en/motor_bit_v16/ 9/16...
- Page 10 3/1/2019 motor:bit Introduction - ElecFreaks Learn-en Slide the switch to 5V, then VCC supply 5V power; slide the switch to 3.3V, then it provide 3.3V power. This switch is valid to 6 IO ports only: P13, P14, P15, P16, P19, P20.
- Page 11 3/1/2019 motor:bit Introduction - ElecFreaks Learn-en It contains 4 (P13-P16) GPIO ports and 1 IIC communication connector (P19-P20). You can connect 3.3V/5V devices to it according to the voltage change of VCC. G-3V3-S Standard GVS Port https://www.elecfreaks.com/learn-en/motor_bit_v16/ 11/16...
- Page 12 3/1/2019 motor:bit Introduction - ElecFreaks Learn-en You can connect 8 devices working under 3.3V power supply. Among it, P3, P4, P10 can be used as analogue signal input connectors. micro:bit Golden Finger Socket https://www.elecfreaks.com/learn-en/motor_bit_v16/ 12/16...
-
Page 13: Quick Start
3/1/2019 motor:bit Introduction - ElecFreaks Learn-en You can plug your micro:bit into this socket. Quick Start Hardware Assembly Connect two TT motors to micro:bit as the picture showed below. https://www.elecfreaks.com/learn-en/motor_bit_v16/ 13/16... - Page 14 3/1/2019 motor:bit Introduction - ElecFreaks Learn-en Programming Click Add Package in the code drawer of makecode [https://makecode.microbit.org/], then search for the key word in the motorbit dialogue box and click on the searching result to download this package. https://www.elecfreaks.com/learn-en/motor_bit_v16/ 14/16...
- Page 15 3/1/2019 motor:bit Introduction - ElecFreaks Learn-en Write your code to make two TT motors rotate in turns. Click the link here to see the whole program: https://makecode.microbit.org/_LsPT31WPH1JD [https://makecode.microbit.org/_LsPT31WPH1JD] You can also download it from the page below: https://www.elecfreaks.com/learn-en/motor_bit_v16/ 15/16...
- Page 16 3/1/2019 motor:bit Introduction - ElecFreaks Learn-en Simulator Blocks JavaScript Edit on start forever left wheel speed pause (ms) 2000 Download Download Microsoft MakeCode Terms of Use Privacy Download left wheel speed ...
