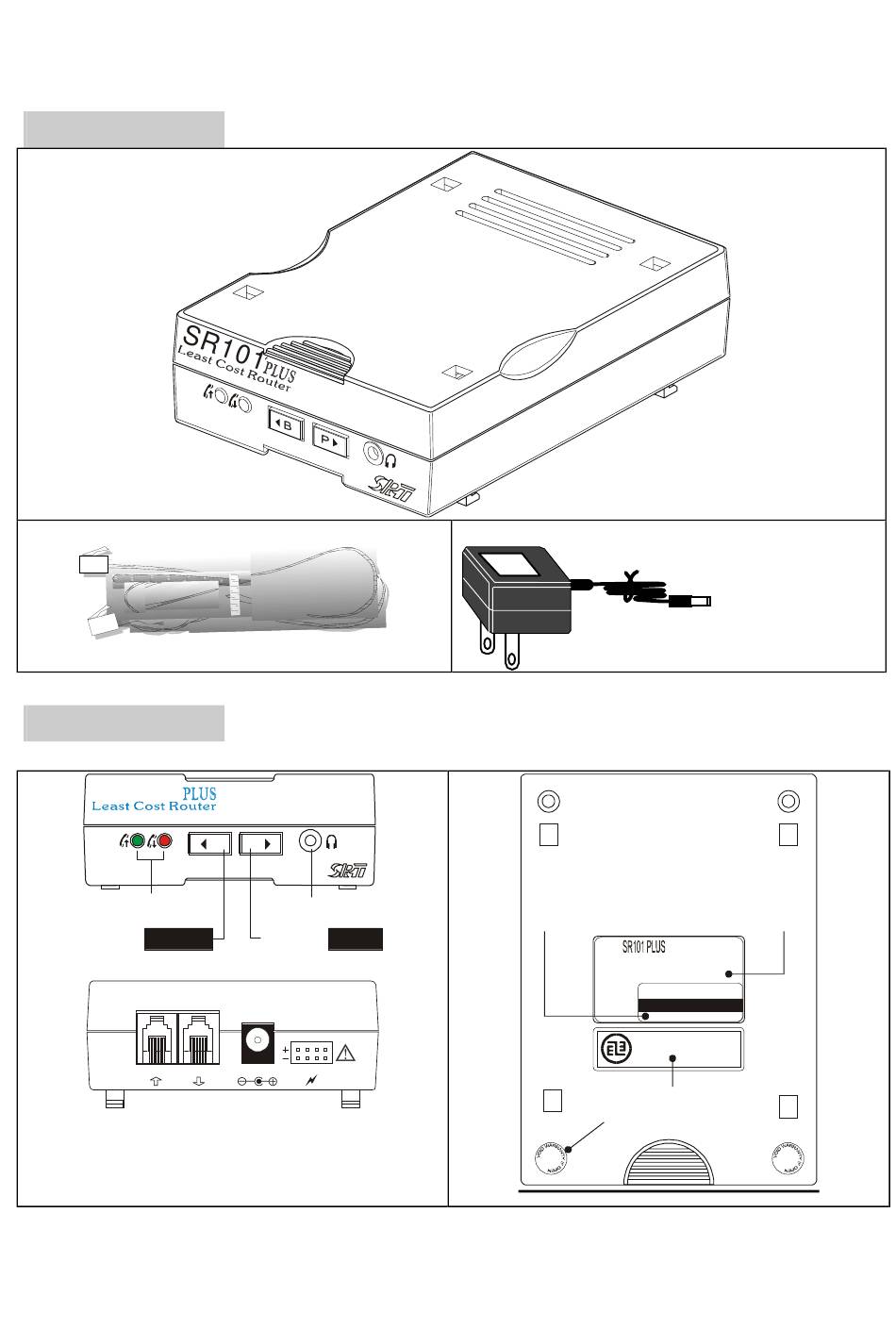

PACKING

2 wires line cord 1PCs

FEATURES

Front&Back:

SR101

Status LED

ABCD/Bypass

LINE PHONE

SR101

PLUS

INSTRUCTION

Release version 1.0 (Beta)

Monitor out

Pause/Prog.

AUX

DC24V

Least Cost Router

SR101 PLUS 1PCs

DC 24V/150mA adapter 1 PCs

BUTTON:

Firmware

型號

製造廠商: 冠旭通訊有限公司

製造序號:

DATE:

VER :

DGT Approvied sticker

Warranty stickers

拆開

保証

無效

Firmware Ver:1.03

Serial No.

撥接器

廠牌SRT

000001

0133 WDT/DIRECT

1.03/010816

N. S

交通部電信總局

審定合格標籤

號碼： T90-M013-0

拆開

保証

無效

Table of Contents

Need help?

Do you have a question about the SR101 PLUS and is the answer not in the manual?

Questions and answers

Summary of Contents for Sunrise Telecoms SR101 PLUS

Page 1 SR101 PLUS Least Cost Router Firmware Ver:1.03 INSTRUCTION Release version 1.0 (Beta) PACKING SR101 PLUS 1PCs 2 wires line cord 1PCs DC 24V/150mA adapter 1 PCs FEATURES Front&Back: BUTTON: SR101 Monitor out Status LED Firmware Serial No. ABCD/Bypass Pause/Prog. 型號...
Page 2: Installation
INSTALLATION SR101 PLUS This installation is suitable for 2 wires of analog PABX only LINE PHONE DC24V C.O. line LINE PHONE DC24V Extension terminal of PABX Plug in power RJ11 If dialer received divert call, . Send system access no.
Page 3 Test After Install Dialer’s LED Test Step Telephone 1. Plug in power 2. Hang up and non-ringing, then dialer into standby mode. Green and red led light alternately Hear dial tone or 3. Lift handset or press hands- any sounds send free bottom from line Green led...
Page 4 Connect monitor speaker (Optional) To hear the dialing sounds is not necessary. However if your divert call failed, you can connect a speaker to listen and help you to understand what thing wrong. Also for program beep. 3.5 mm Earphone Speaker Build-in amplifier so, you can direct...
Page 5: Aux Connector
AUX connector Use espect copy cable otherwise may cause SR101 burn out. Function 1: FAST COPY data to an empty SR101 Don’t copy data each other that version before Ver:1.02 and after Ver:1.03 SR101 2. Plug in power 4. Place new dialer on it SR101 Copier...
Page 6: Remote Programming
Remote Programming 1. Have SR101 Remote Programmer or prepare a line with caller ID support (Client need too) and preset the line numbers to Item *5. 2. Must installed SR101 while other dialer not support. 3. Have the client’s TEL. No. and Security password (Same as local programming used). Remote Programmer and caller ID can be used together, in case of CID failed.
Page 7: International Call
Notice before Programming 1) Per digits have to be dial within 3 seconds after item No., otherwise you will hear beep then finished. In case item finished but desired numbers are not complete. Please re-program by dial the item number. 2) Press the item number only then waiting 3 seconds for a long Beep, If you want clear it.
Page 8: Programming Table
Programming Table Ver:1.03 Connect a Single-Line Phone and hang up. Press and hold on [P] key then plug in power 2 LED Blinking slowly. Lift handset (or press [HOOK] key if have). 2 LED keep light and waiting for a long Beep. Input security Password(Default is 1234) 2 LED keep dark waiting for a long Beep..
Page 9 Multi-Routing Programming Item *XY: X= Which system, 1=1 system, 2=2 system….., (but for 1 system no need *1) Y= Which item Just clear the related trigger (clear Item *X2) to disable the diversion if you want. ITEM Description Actual data Digits Second system’s Trigger code.
Page 10 Special Parameter Programming(All changed and new) ITEM Description Actual data Digits Force to dial user’s password or not if item 1 defined? 1=Not, 0=yes must to dial password (Digit 5) (Digit 6) (Digit 7) (Digit 8) Prefix Prefix Total digits of prefix Send just received P: None P: None...
Page 11 More Descriptions Item 2/7 This is trigger code, all divert actions decided by these items. If data with * means accept any number. E.g. input 00* will accept from 000-009 as trigger code. But long distance call has to input 0P. Item 8 When install on fax machine, please take care that any non-fax signals will caused fax machine hang up.
Page 12 Glossaries ‘Phone’ means any single-line phone, cordless, fax machine, or PABX of C.O. terminal that connect to SR101 PLUS of PHONE port. Lift handset (Off hook) means any phone set connect to SR101 of PHONE port is looped, include lift handset, press hook key, auto-answer, even direct shot the 2 wires.
Page 13: Examples Of Application
Examples of Application ALL divert to value add network only Application 1: Divert if dialed 00X… Item DATA Item DATA Item DATA Item DATA 4378371 987654210#(Account) *24 002(prefix) #(Suffix) Application 2: Divert to first system if dialed 002…, and divert to second system if dialed 003… Item DATA Item...
Page 14 Examples of Application Application 5: This example for Singapore Divert to first system if dialed 00X/01X/021, but divert to second system if dialed 011 and divert to third system if dialed 020 Item DATA Item DATA Item DATA Item DATA *41 1111 *22 011 *32 020...
Page 15 Test After Programmed Dial a call as before which you want divert it. Wait for connect, and if call success then means the programming is correct. In case of failed, please monitor by add speaker or decoder to know what is wrong.(Normally is wrong programming) When you monitor the call progress from added speaker, then the dialing sounds may echo to the microphone on phone set.
Page 16 User’s Guide Just dial as you did before install dialer, but if want to force bypass call to PTT: 1. Press [#] (depends on item *# of digit 1) before you dial any numbers. 2. Press [B] key on dialer before sizes line. Remote monitor (advance feature) Purpose: You want leave but have kids or old man at home, this feature let you to listen sounds around your house to know what happen.
Page 17: Electronic Specification
Electronic Specification DTMF receiver: (Signal send by user’s equipment) Level : -24dBm~+2dBm Frequency Tolerance: +/- 1.5% Distortion: Less than 2% Duration time: 40mS (min.) term :without dial tone Inter-Digit Pause: 40mS(min.) Pulse receive: Speed:10 or 20PPS, M/B: 33/66 or 40/60 DTMF Sender: Level :HF -7dBm, LF -5dBm, @0KM Frequency Tolerance: less than 0.8%...
Page 18: Trouble Shouting
Trouble shouting Phenomenon Other Condition Possible Cause Solution Silent after lift Right 1 led does Wrong wiring Check wiring handset not light(keep Power volt is not enough Check power & adapter scanning) Dialer burn out or RJ-11 Replace dialer connector is bad Tip: Pull out power, if work well that means dialer is bad, otherwise...
Page 19 Phenomenon Other Condition Possible Cause Solution Have incoming call Right 2 LED does Dialer out of order Replace dialer but non-ringing not light Ringing volt <27Vrms No solution Have incoming call Right 1 LED is Dialer out of order Replace dialer but can not speak to lighting.
Page 20: Warranty
In case of dialer does not work due to system changed by user or provider, you may need to modify firmware to solve the trouble. However update firmware will charge and has to return dialer to factory. Please contact us, SUNRISE TELECOMS CO., LTD. No.12, Lane 717, Long-Hsing Rd., Jungli ,Tao Yuan , Taiwan TEL: 886-3-4360077 FAX: 886-3-4360400...
