Summary of Contents for Wildix Wizyconf

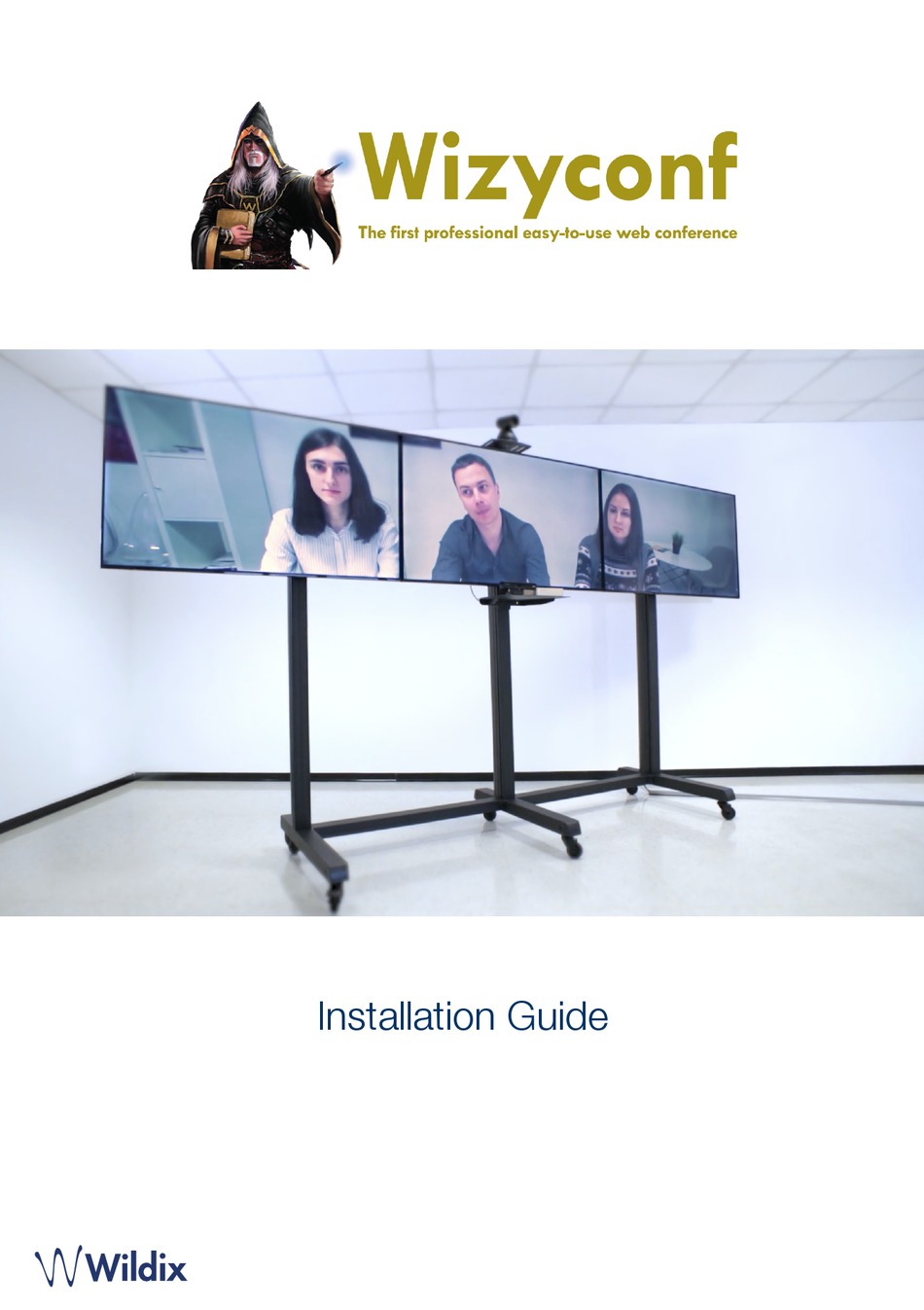

  • Page 1 Installation Guide...
  • Page 2 Wizyconf-Core Box bottom level - View from the top Accessories charging adapter for Wizyconf- Remote Wizyconf-Mics with their - 2 soft, 4 rigid cables for Wizyconf- mount brackets Mics 2 x 4 screws for mounting Wizyconf-Mics Power supply unit for...
  • Page 3 2 x rigid cable (50cm) 2 x rigid cable (20cm) 2 x soft cable (53cm) Wizyconf-4kCam 2 x 4 screws for mounting 1 x package of 4 support legs for Wizyconf- Array 1 x package of 8 support legs for Wizyconf- Wizyconf-PTZCam Mics...
  • Page 4 Port Name Description DC 12V Connect to the power supply. Microphone analog connection. Connect to Wizyconf-Core using audio control cable. Ref-audio Reference audio analog connection. Connect to Wizyconf-Core using audio control cable. Connect to Wizyconf-Mic 1. Connect to “! Mic”...
  • Page 5 Attach four legs to each Wizyconf-Mic (package of 8 support legs) Wizyconf-Array - Front view Wizyconf-Array - Back view Important! Attach the four legs to Wizyconf-Array (package of 4 support legs) Audio control cable Ref-audio (included) Wizyconf-Core - Back view Audio control cable Mic (included)
  • Page 6 Wizyconf - Installation Guide " " Wizyconf-4kCam & Wizyconf-PTZCam Wizyconf-Core - Back view Wizyconf-4kCam - Back view USB cable (included) Wizyconf-PTZCam - Back view USB cable (included) Fasten Wizyconf-PTZCam on Wizyconf- Stand using the mounting screw Wizyconf-Core - Back view...
  • Page 7 Wizyconf-Mic 1 - Back view Wizyconf-Array - Front view RJ45 Ethernet cable (not included) Wizyconf-Mic 2 - Back View RJ45 Ethernet cable (not included) Follow instructions inside Wizyconf-Stand box to assemble the stand. Refer to the Wildix website www.wildix.com for provisioning instructions. " www.wildix.com...
