- Page 1 KOSA CONVERTIBLE CRIB Made in Vietnam...
- Page 2 Please read these instructions before use of this product. Failure to follow these warning and the assembly instructions could result in injury or death. Please save manual for future use as it contains important information. Read all instructions before assembling crib. KEEP INSTRUCTIONS FOR FUTURE USE. Do not use this crib if the instructions cannot be strictly followed.
-
Page 3: Maintenance, Cleaning And Storage
Toddler Bed Warnings FAILURE TO FOLLOW THESE WARNINGS AND ASSEMBLY INSTRUCTIONS COULD RESULT IN SERIOUS INJURY OR DEATH FROM ENTRAPMENT OR STRANGULATION. DO NOT place bed near windows where cords from blinds or drapes may strangle a child. READ INSTRUCTIONS BEFORE assembling bed. KEEP INSTRUCTIONS FOR FUTURE USE. Do not use this bed if the instructions can not be strictly followed. - Page 4 (C) Side Panel (B) Footboard (A) Headboard (2 pcs) (1 pcs) (1 pcs) (F) Drawer Side (E) Drawer Front (D) Rails (2 pcs) (1 pcs) (2 pcs) (I) Drawer Back (H) Drawer Bottom Panel (G) Drawer Divider (1 pcs) (2 pcs) (1 pcs) (L) Large Barrel Nut (J) 57mm Bolt...

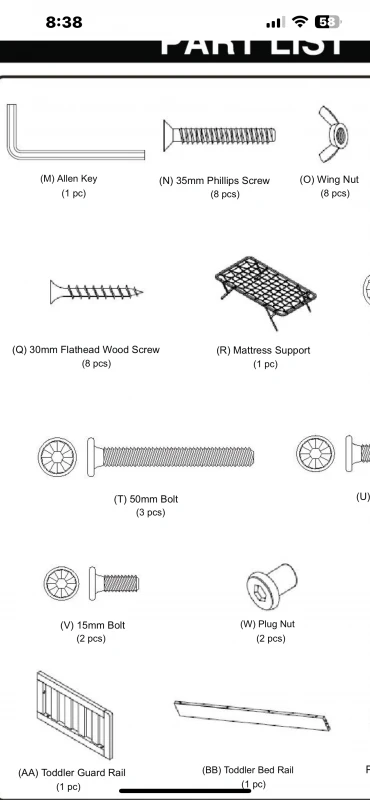

- Page 5 (M) Allen Key (O) Wing Nut (P) Nylon Corner Fixture (N) 35mm Phillips Screw (1 pc) (8 pcs) (2 pcs) (8 pcs) (Q) 30mm Flathead Wood Screw (S) 15mm Bolt (R) Mattress Support (8 pcs) (6 pcs) (1 pc) (U) 38mm Bolt (T) 50mm Bolt (8 pcs) (3 pcs)
- Page 6 Using Eight (8) 35mm Phillips Screws (N) and Wing Nuts (O), attach the Mattress Support (R) to the Rails (D). Using four ( 4 ) 57mm Bolts (J) and Large Barrel Nuts (L), attach the Headboard (A) and Footboard ( B) to the assembly completed in Step 1. Tighten Bolts using Allen Key (M) . Page 6 of 12...
- Page 7 Using eight (8) 38mm Bolts (U) attach one Side Panel ( C ) to the Headboard ( A ) and Footboard ( B ) . Repeat for the other Side Panel (C). Using four (4) 30mm Flathead Wood Screws (Q), attach the Drawer Sides (F) to the Drawer Front (E).
- Page 8 Slide the Drawer Bottom Panels (H) into the grooves along the bottom of the drawer. Align the Drawer Back (I) into the dowels of the Drawer Divider (G) making sure that the Drawer Bottom Panels (H) sit in the grooves of the Drawer Back (I). Using four (4) 30mm Flathead Wood Screws (Q), attach the Drawer Sides (F) to the Drawer Back (I).
- Page 9 Complete the assembly by sliding the drawer into the rails along the underside of the crib. CONVERTING TO A TODDLER BED Remove the front Side Panel (C) by unscrewing the four (4) bolts as shown above . Page 9 of 12...
- Page 10 Place the two (2) Small Barrel Nuts (X) into the Toddler Bed Rail (BB). Align the dowel pins of the Toddler Bed Rail (BB) into the holes in the Headboard (A) and the Footboard (B). Complete the rail assembly with two ( 2 ) 57mm Bolts ( J ) and two ( 2 ) Lock Washer (K) as shown below.
- Page 11 CONVERTING TO A DAY BED Remove the Toddler Guard Rail (AA) by removing the three (3) 50mm Bolts (T). Store the Toddler Guard Rail for future use.Plug the remaining three holes in the top of the Toddler Bed Rail ( BB ) and Headboard (A) with 15mm Bolts ( S ) Remove Guardrail Page 11 of 12...
- Page 12 We strive to create a Oggi product that will be of lasting value to both you and your child. This product was constructed with high quality materials and is held to the highest safety standards.
