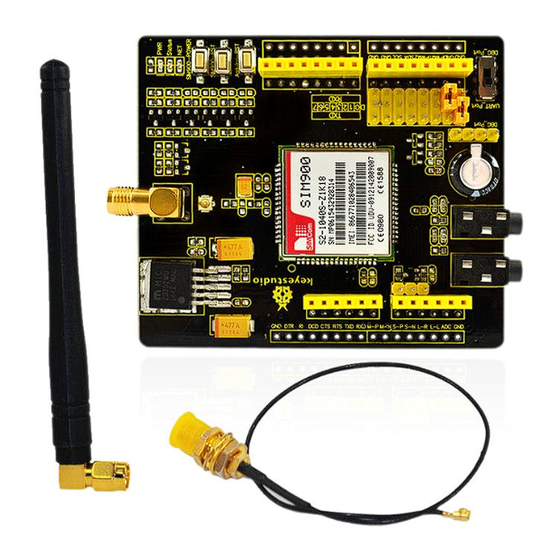

keyestudio SIM900 GSM/GPRS Module Shield
Introduction
SIM900 GSM/GPRS shield is based on Quad-Band SIM900 GSM/GPRS module. It
provides Arduino with GSM/GPRS function. This shield allows you to make voice
calls, send SMS or make connections to the Internet network.
On the shield, there is a serial port toggle switch for you to select either software
serial port or hardware serial port to be connected to GPRS Shield. If you choose
software serial port, you need to use the Software UART; otherwise, you need to use
the Hardware UART. The shield includes a high capacitor dedicated to RTC (Real
Time Clock).
If you toggle the switch to DBG-Port, you can connect the port to Arduino or connect
the port to PC by Arduino to proceed the debugging.
