CONTENTS
Introduction .........................................................1
Select Mounting Location ......................................1
Remove Backplate ................................................1
Connect Ethernet Cable .........................................2
Install Cover ........................................................2
Configure ............................................................2
Software and Firmware Requirements ..................2
Convert and Configure the Sensor Object .............3
Add Sensors ....................................................3
Configure Value and Programming Objects ...........4
Use of HPO-9001 Distribution Module ......................5
Troubleshooting ...................................................5
Maintenance ........................................................6
Important Notices .................................................6
INTRODUCTION
Complete the following steps to:
• Mount a KMC Conquest™ HPO-9007NW or HPO-
9007DW gateway
• Connect it to a KMC Conquest BAC-59xx/9xxx
controller
• Discover wireless sensors
NOTE: The HPO-9007s only receive signals
from sensors. They do not transmit
signals to devices.
NOTE: See the data sheet at
com
for specifications and other
information.
SELECT MOUNTING LOCATION
For the RF signal, the maximum theoretical
straight-line distance between the gateway
and sensors is about 100 feet (30 meters).
KMC Controls, 19476 Industrial Drive, New Paris, IN 46553
HPO-9007 Series Gateways Installation Guide
HPO-9007 Series Gateways
kmccontrols.
NOTICE
OBSERVE PRECAUTIONS
FOR HANDLING
ELECTROSTATIC
SENSITIVE DEVICES
However, in practice, the maximum distance will
be substantially reduced by obstacles in the
path, the shape of the room, sources of radio
interference, and placement/orientation of the
sensors and gateway!
See the application guide
Sensors
for important information about proper
placement of sensors and their gateway.
NOTE: KMC STW-6010, STW-6014, and
THW-1102
optimizing installation locations
for adequate RF range to the
gateway, adequate light for sensor
charging, AND accurate temperature
measurement. These factors may
require repositioning the gateway
from its original intended location to
optimize RF range to the sensors.
Testing operation before permanent
mounting is recommended. See the
sensors
information.
REMOVE BACKPLATE

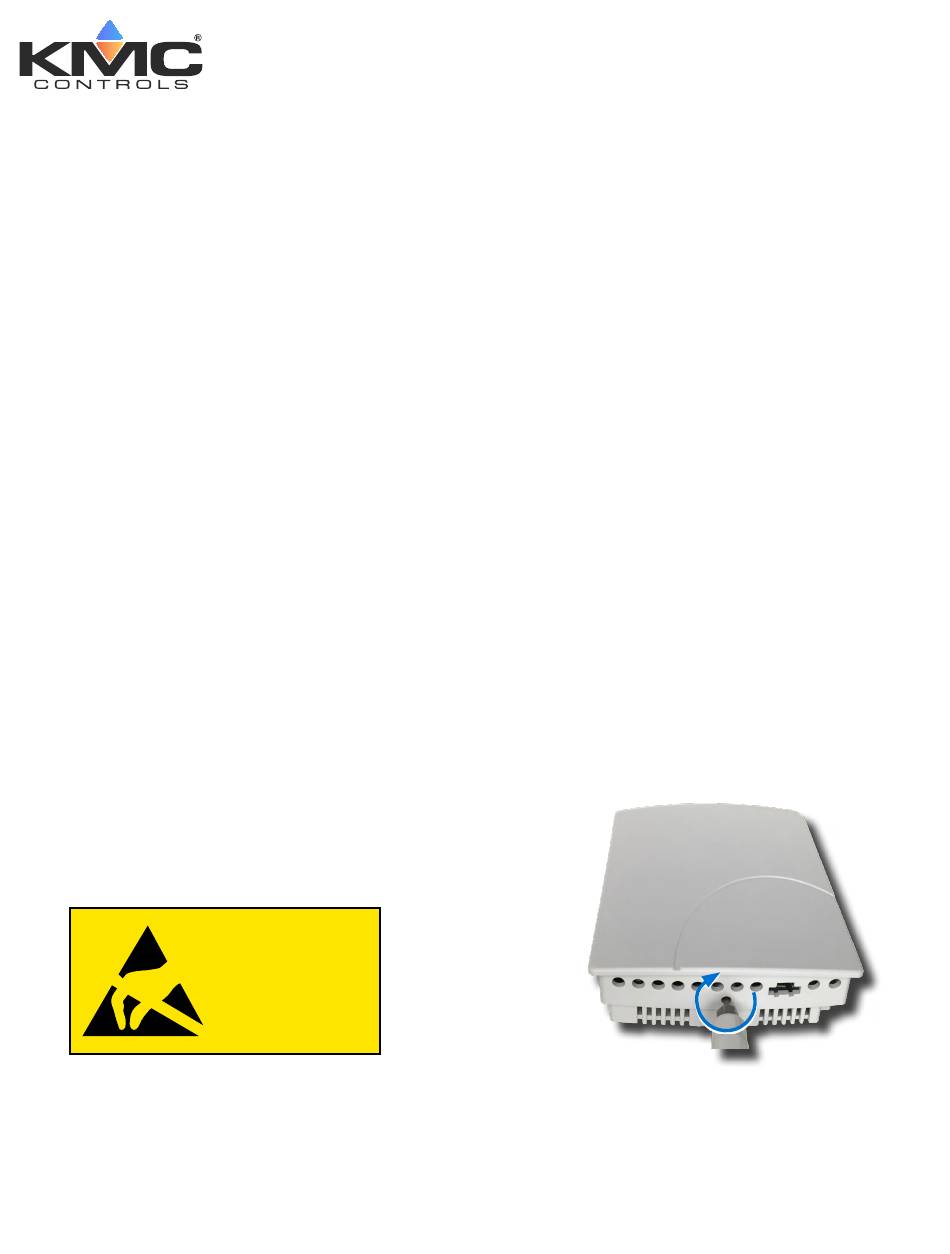

1. Turn the hex screw clockwise into the
backplate until the screw clears the cover.
NOTE: The hex screw should remain in the
backplate.
/
877.444.5622
/
Fax: 574.831.5252
1
Installation Guide
Planning for Wireless
wireless sensors require
installation guide
for more
/
www.kmccontrols.com
923-019-05B
Advertisement
Table of Contents
Summary of Contents for KMC Controls Conquest HPO-9007 Series
- Page 1 SELECT MOUNTING LOCATION backplate. For the RF signal, the maximum theoretical straight-line distance between the gateway and sensors is about 100 feet (30 meters). KMC Controls, 19476 Industrial Drive, New Paris, IN 46553 877.444.5622 Fax: 574.831.5252 www.kmccontrols.com HPO-9007 Series Gateways Installation Guide...
- Page 2 INSTALL COVER Screw 6. Place the cover over the top of the backplate and swing it down. NOTE: Be careful not to pinch the Ethernet cable. 2. Pull the cover off the backplate. CONNECT ETHERNET CABLE 3. Feed the Ethernet patch cable from the Conquest controller through the center of the backplate.
- Page 3 with up to 8 total HPO-9007s and STE-9000 series Add Sensors NetSensors), see Use of HPO-9001 Distribution (Method 1) Automated KMC Sensor Discovery Module on page Sensor and gateway points that can be mapped to NOTE: For devices other than KMC STW/THW BACnet objects (AVs) are: sensors, use Method 2.
- Page 4 3. Click in the EEP field and select the EnOcean Equipment Profile (EPP) number for the desired device from the drop-down box. 5. Click in the Object column and select the 4. Click in the Object column and select the relevant AV object(s) in the drop-down relevant AV object(s) in the drop-down box(es).
- Page 5 5. View the Value of FIRMWARE_REVISION. If to conserve power, allow at least the firmware version is earlier than 0.1.0.0, 30 minutes for transmissions to be contact KMC Controls for assistance. received and all the relevant object values to be updated when verifying TROUBLESHOOTING normal operation.
- Page 6 KMC Controls, Inc. makes no representations or warranties with respect to this document. In no event shall KMC Controls, Inc. be liable for any damages, direct, or incidental, arising out of or related to the use of this document.
