Summary of Contents for Gomax MS-5005BP

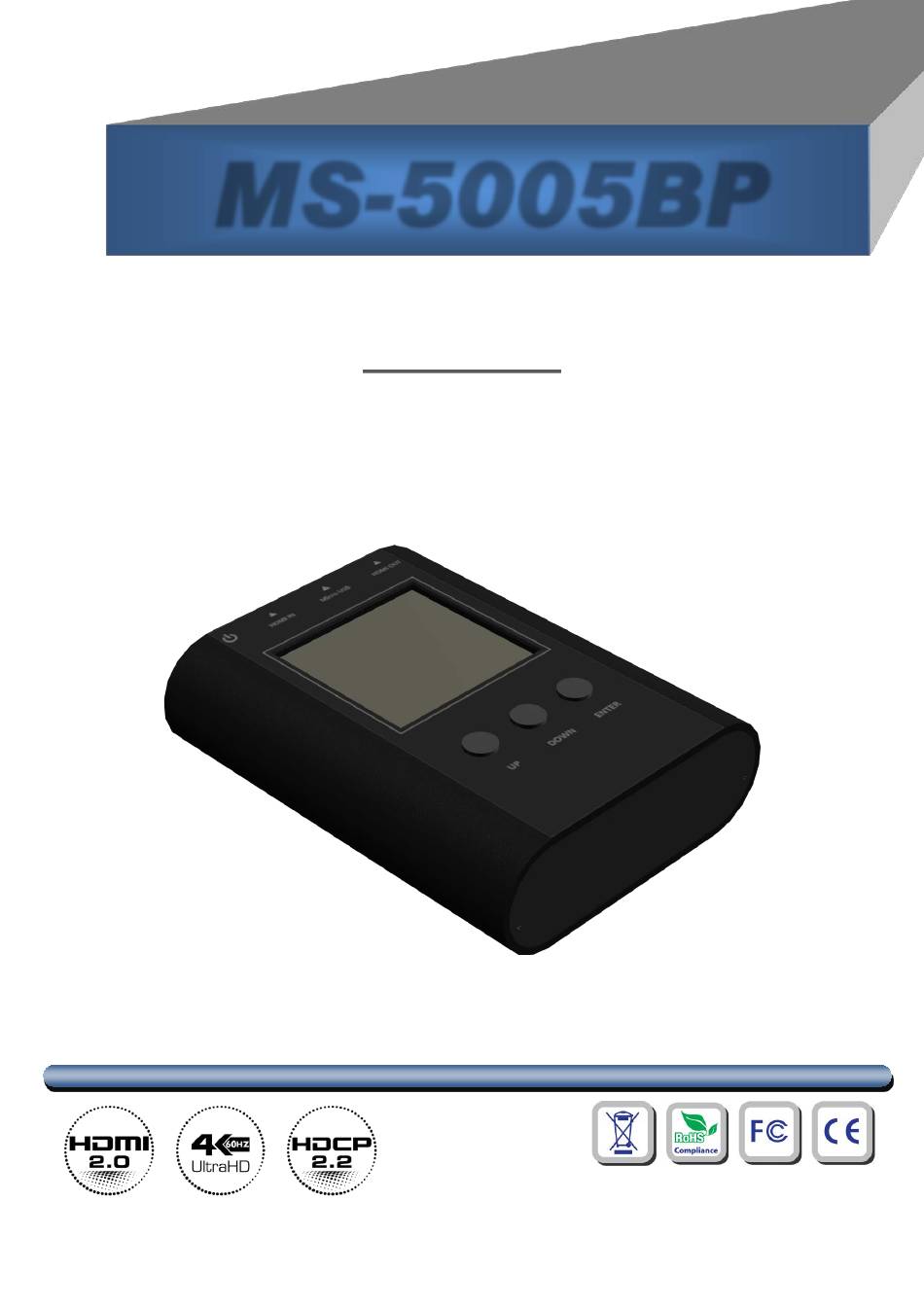

- Page 1 MS-5005BP HDMI 2.0a Installation Gear User Manual rev: 170810 Made in Taiwan...
-
Page 2: Table Of Contents
However, like all electronic equipments, the MS-5005BP should be used with care. Please read and follow the safety instructions to protect yourself from possible injury and to minimize the risk of damage to the unit. -
Page 3: Introduction
HDMI signals, detect important HDMI features, and examine cable quality. With the help of MS-5005BP, installer can easily and quickly setup up and setup HDMI equipment in seconds. -
Page 4: Specifications
SPECIFICATIONS Model Name MS-5005BP Technical Role of usage HDMI 2.0a Installation Gear Video bandwidth Single link 600MHz [18Gbps] HDMI compliance HDMI 2.0 and below HDCP compliance HDCP 2.2 and below Video Support up to 4K60 4:4:4 8bit, 4K2K60 4:2:0 16bit (HDR) ESD protection Human body model —... -
Page 5: Connection Diagram
CONNECTION DIAGRAM... -
Page 6: Panel Descriptions
MS-5005BP will automatically enter battery saving mode after 1 minute idle. During battery saving mode, if user would like to get MS-5005BP back to work, please push any button. Notice that when plugging in an active HDMI input, MS-5005BP will NOT enter battery saving mode. -
Page 7: Menu Operation
MENU OPERATION Menu Items Remark Resolution Color space Color depth SOURCE MODE HDCP provide three test patterns for user to use Pattern (Ramp, Toggle, Color Bar) Resolution Color space Color depth read the HDMI information from input SINK MODE source HDCP AUDIO EDID... -
Page 8: Operation Approach
OPERATION APPROACH Source Mode When MS-5005BP is treated as a source, it can generate different test patterns to the display under test. How to run Source Mode: Make sure the connection between the MS-5005BP HDMI output port and the display. - Page 9 Sink Mode When MS-5005BP is in sink mode, it can read the HDMI source’s information and in addition, the input HDMI can be passed through to HDMI capable display if needed (as shown below). How to run Sink Mode: ...
- Page 10 Use buttons to select MODE category and enter CABLE mode. Keep pressing ENTER button for about 5 seconds to start the link test. The MS-5005BP will evaluate the HDMI signal quality based on HDMI 2.0 specification and provide a result, PASS or NG. Please notice that during testing, MS-5005BP will NOT take any commands from buttons except ENTER.
-
Page 11: Warranty
SELLER will NOT be liable for direct, indirect, incidental, special, or consequential damages resulting from any defect or omission in this manual, even if advised of the possibility of such damages. Also, the technical information contained herein regarding the MS-5005BP features and specifications is subject to change without further notice.
