How To Program a "PP-TESC**AU ESC (E
This guide will go through the steps to program your PP-TESC**AU (Green Heatshrink) ESC.

How to program a "PP-TESC**AU ESC using the programming card

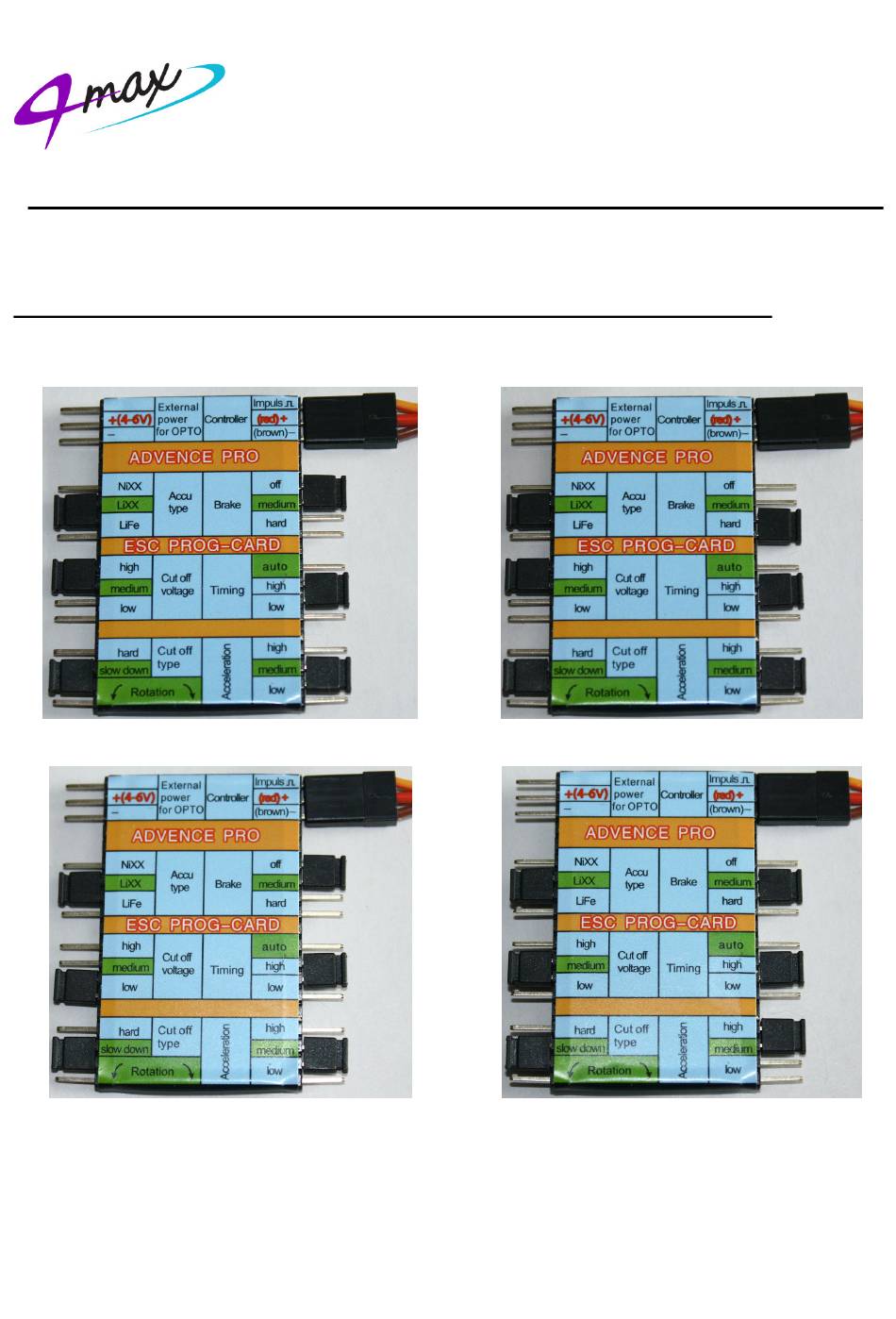

Position the black jumpers on the pins on the programming card (They simply pull off
•
and push on) in your desired positions. Suggested places are shown below.
Sport and basic aerobatic models
Multi motored models
Connect the servo type plug from the ESC to the top 3 pins on the right hand side.
•
Paying close attention to the polarity. Do not connect anything to the top left pins.
Please see connection photo.
This is a guide only Without prejudice . 4-Max Models Ltd does not accept any liability whatsoever with regards to any injury or damage caused by
advice contained within or not contained within this guide.
Gliders with folding propellers
October 2018 Rev2.
www.4-Max.co.uk
S
lectronic
peed
3D aerobatic models
www.4-Max.co.uk
C
)
ontroller
