Summary of Contents for E-Ace M308

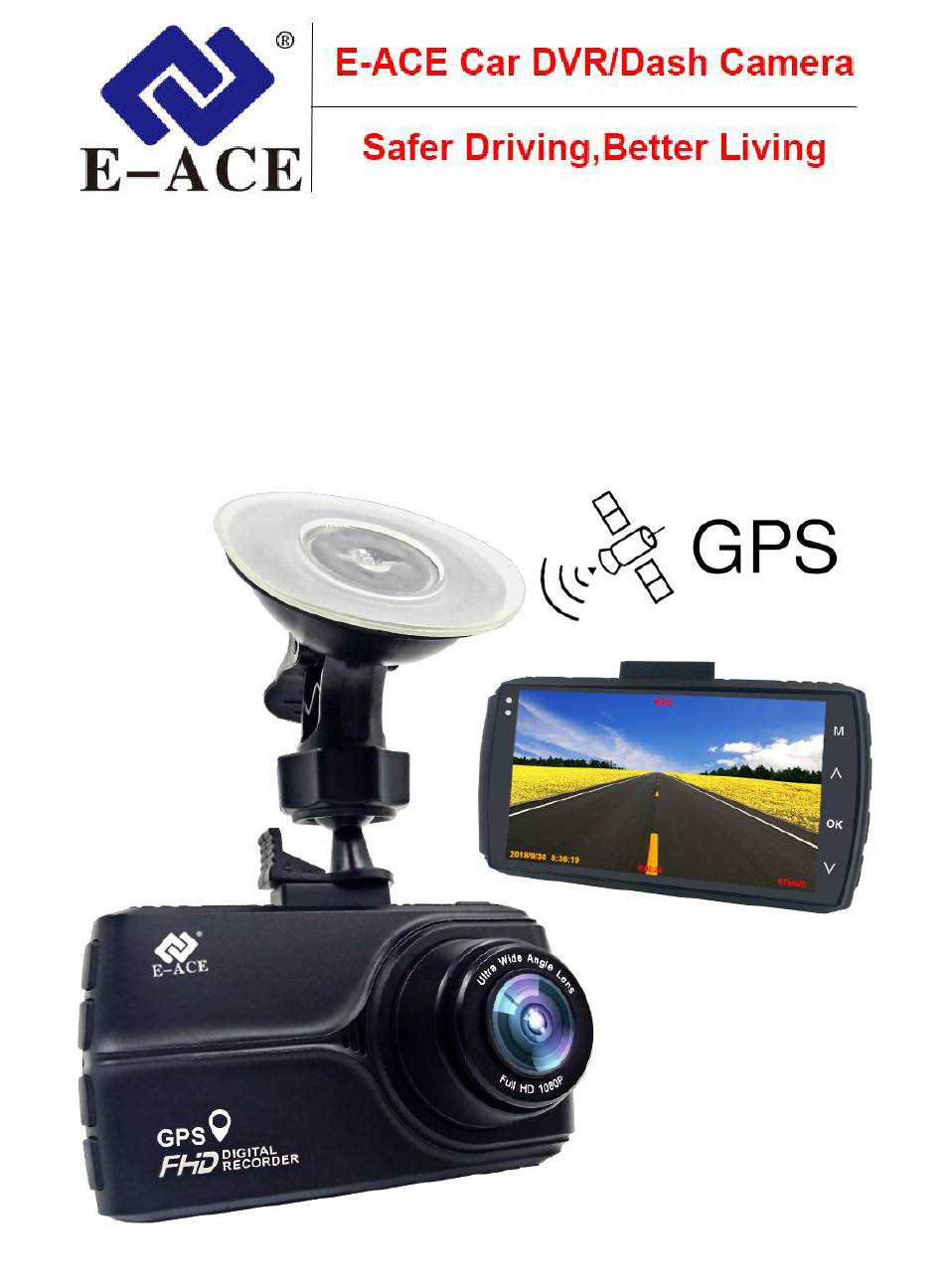

- Page 1 GPS Car Dash Camera M308 User Manual...
- Page 2 Ⅰ.Button function description Button diagram 1、Power 2、GPS socket 3、Mini USB port 4、Menu/Mode 5、Up 6、OK 7、Down 8、TF card slot 9、Reset Button function introduction Power Power on/off Press power button for 3 seconds to power on/off device. Close the screen Press power button once to turn off the screen, press again to open the screen.
- Page 3 Lock file function At being recording status, press Menu button once to lock current file, this file will not be overwritten. Mode function At status of suspending recording, long press Menu button to enter into Photo mode, then long press again enter into Playback mode. Up page function At menu setting and playback mode, it is for up page function.
- Page 4 Ⅱ.Operation guide 1.Shut down the car engine. 2.Insert the TF card into the card slot (Attention)Please use the high-speed TF card (class 10 )and the capacity is 8G to 64G. 3.Fix the recorder in front of windshield by holder . 4.Insert the car charger into the car cigarette lighter.
- Page 5 3)At photographing function, press Menu button once to enter setting of photograph. 3.Lock file function At status of being recording, press Menu button once to lock present file. 4.G-sensor function The dash cam is built in G-sensor ,if a serious vehicle collision happens,recorders will lock current video file immediately at accident, the locked video is saved as a special file, which never can be covered.
- Page 6 to setting of photograph, Finally press Menu button until to be pause recording status. 【Remark】“FILE” means normal video. “EMER” means files locked(including parking monitoring files) “IMG” means photos. 8.Parking monitoring(Optional) At status of suspending recording, enter menu setting to open parking monitoring function.
- Page 7 0min,5sec,30sec,1min,3,min. 13.Back to factory default setting If you want to restore the factory settings, please press Menu button then long press Menu button, find Reset Setup in General setting,then press OK button to reset. Ⅳ.Specification Chipset Mstar_8328P Imaging sensor AR0238 Night Vision Sensor Aperture F 1.8 Viewing angle...
- Page 8 Ⅴ.Q&A If have problems when using,please try these methods below: Q:How many capacity memory cards are supported? A:Its maximum supported memory card capacity is 64G, and the dash cam only supported class 10 memory card. Q:I opened the loop recording, but the memory card is still full. A:Because the dash cam locks important files without being overwritten, you need to remove the memory card and format the memory card with your computer.
- Page 9 Q:My dash camera GPS can't work A:Please make sure your connect with original GPS antenna tightly, and in outside road because the GPS antenna can't find satellites successfully if at enclosed environment. Ⅵ.GVPlayer Installation Guide 1.Please download “GVPlayer” Installation File via the link https://drive.google.com/open?id=1vsezW3bVJLQo9QzPOJdL7Ir8VsjmYC 2.Uncompress the the download file: “GVP V1.0.2.6_English_Google_OneWin”...
- Page 11 4.After Installation incomplete, please click “Close” to finish installation. 5.Please go to your “Installation Folder”(Such as C:\Program Files (x86)\GVPlayer\), find and run “GVP” software 6.Please open video file, then can playback the recorded videos...
- Page 12 Ⅶ.Installation Display Tips: There are 2 positions to put GPS Antenna, please put it at your want.
- Page 13 Please fell free to contract with us if still have any questions/problems, we will help you solve all in 24 hours normally. Our email is e-ace.china@hotmail.com Please don't return it back to Amazon without contract with us, thanks very much ahead.
