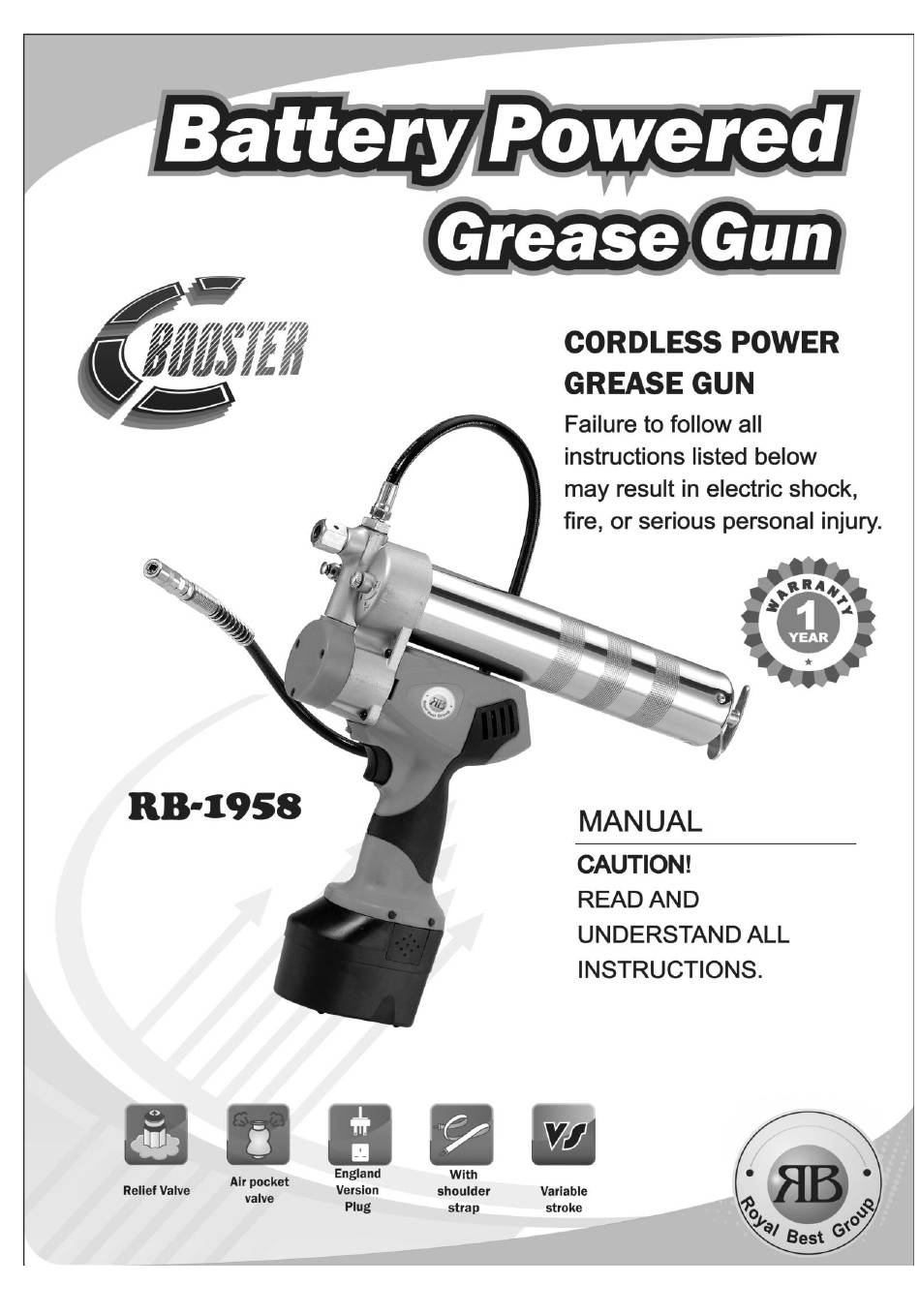

Summary of Contents for RB RB-1958
-
Page 2: Table Of Contents
Index Parts Description …………………………………………………………………………………………………….. Specifications ………………………………………………………………………………………………………… General Description …………………………………………………………………………………………………. Appropriate Use ……………………………………………………………………………………………………… Grease Gun Use and Care …………………………………………………………………………………………. Service ………………………………………………………………………………………………………………… Use Equipment Safely ………………………………………………………………………………………………. Safety Warnings ……………………………………………………………………………………………………… Guidelines for Using Extension Cords …………………………………………………………………………… Grounding Instructions …………………………………………………………………………………………… Inspection ……………………………………………………………………………………………………………… Getting Started ……………………………………………………………………………………………………… Charger Operation ……………………………………………………………………………………………………... -
Page 3: Parts Description
Ref. Description Grease Tube High Pressure Hose Pressure Relief Valve Air Pocket Valve Pressure Adjustable Switch Coupler LED Light Trigger 18 Volt Battery Pack Plunger Handle Strap Hole Lock Lever... -
Page 4: Specifications
Specifications Operating Power, Volt DC Dual Flow: High Volume Low Pressure 5.000 PSI (350 Bar), 250 g/min Low Volume High Pressure 10.000 PSI (690 Bar), 55 g/min Grease Reservoir Capacity, oz. (g) 14 (400) Lubricant (Grease) Up to NLGI#2 Working Temperature, F(C) 32~104(0~40) Battery Capacity, mAh 1.500... -
Page 5: Use Equipment Safely
Safety Warnings Safety Instructions for Charger and Batteries 1. Before using a battery charger, read all instructions and cautionary markings on the Battery Charger, Battery Pack, and the Grease Gun. 2. CAUTION: To reduce the risk of injury, the RBG charger should only be used to charge the RBG battery pack. -
Page 6: Guidelines For Using Extension Cords
Guidelines for Using Extension Cords PROPER EXTENSION CORD IS CRITICAL. It is vital to use only good conditioned extension cords that are not damaged in any fashion. When using an extension cord, be sure to use one that is hefty enough to carry/support the current your product will draw. Any cord that is not sufficient enough or is undersized will cause overheating and possibly cause electrical shock. -
Page 7: Charger Operation
Charger Operation 1. Make sure the power source voltage for connecting the battery charger is the same as that shown on the charger specification plate. Connect the charger to the power source. 2. Place the battery in the charger. Don not force – The slot on the battery and the charger base must be aligned. -
Page 8: Installing Grease Cartridge
Installing Grease Cartridge 1. Pull back on the plunger handle until the plunger rod is fully extended. It may be necessary to loosen container to break vacuum. 2. Remove the plastic cap from the grease cartridge and insert the cartridge into the container tube. -
Page 9: Filling Gun With A Filler Pump
Filling Gun with a Filler Pump 1. Pull back on the plunger handle until the plunger rod is fully extended. 2. Insert the gun filler nipple into the filler pump socket. 3. Operate the filler pump to fill the container. 4. -
Page 10: Safety Valve Protection
Safety Valve Protection This kind of grease gun equipped with safety valve protection, when the current exceed the standard setting, the protection will function and the power will interrupt. When the protection resume operate, the grease gun will keep working. Grease Gun Operation 1. -
Page 11: Expelling Air Pockets
Expelling Air Pockets CAUTION: Air pockets in the cartridge lubricant cause the gun to lose its prime. 1. Withdraw the plunger rod from grease tube assembly cap and engage it with the plunger by rotating the plunger handle. Exert force on the plunger handle while holding down the vent valve. - Page 12 ROYAL BEST GROUP www.rbg.tw RB-1958...
