Summary of Contents for S&T Kontron KISS 2U Short V3

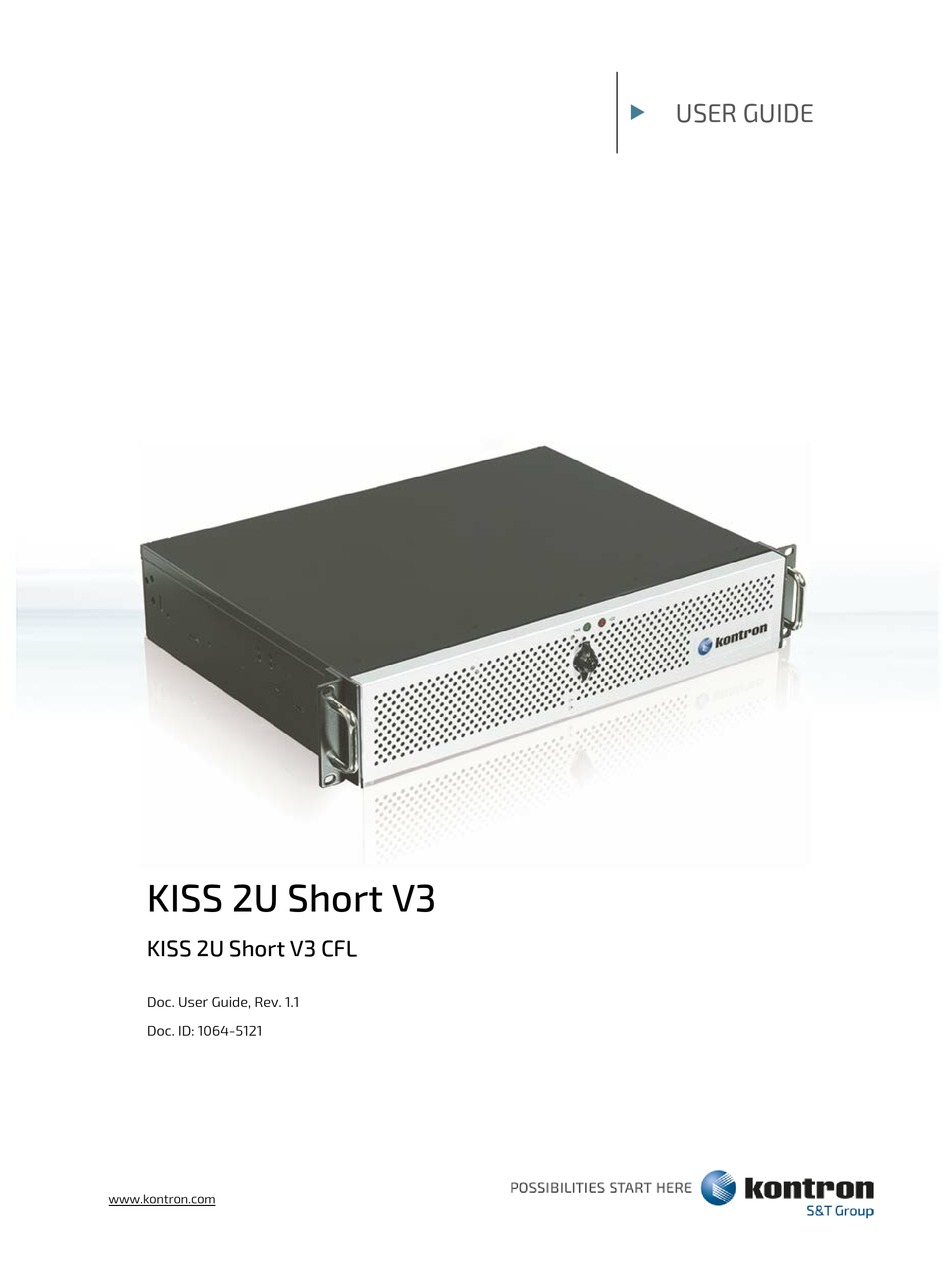

- Page 1 USER GUIDE KISS 2U Short V3 KISS 2U Short V3 CFL Doc. User Guide, Rev. 1.1 Doc. ID: 1064-5121 www.kontron.com // 1...
- Page 2 KISS 2U Short V3 - User Guide, Rev. 1.1 This page has been intentionally left blank www.kontron.com // 2...
- Page 3 KISS 2U Short V3 - User Guide, Rev. 1.1 KISS 2U SHORT V3 - USER GUIDE Disclaimer Kontron would like to point out that the information contained in this user guide may be subject to alteration, particularly as a result of the constant upgrading of Kontron products. This document does not entail any guarantee on the part of Kontron with respect to technical processes described in the user guide or any product characteristics set out in the user guide.
- Page 4 KISS 2U Short V3 - User Guide, Rev. 1.1 Intended Use This product, sold by Kontron, is also intended for the use in harsh industrial environments. The product can operate in a temperature range from 0°C to plus 50°C; the storage elements can withstand temperatures from minus 20°C to plus 70°C, and a humidity of 10 to 93 percent does not affect the function of the Product.
- Page 5 KISS 2U Short V3 - User Guide, Rev. 1.1 Revision History Revision Brief Description of Changes Date of Issue Author/ Editor Initial version 2019-Feb-13 Removed noise data. Added No Legacy UEFI Only info, Temperature 2020-April-06 Sensors and 9 Gen. Proc. Changed EN/ IEC 60950-1 to EN/IEC 62368, the Mechanical Dimensions Link, Type label and the Block Diagram.
-
Page 6: Symbols
KISS 2U Short V3 - User Guide, Rev. 1.1 Symbols The following symbols may be used in this user guide DANGER indicates a hazardous situation which, if not avoided, will result in death or serious injury. WARNING indicates a hazardous situation which, if not avoided, could result in death or serious injury. -
Page 7: For Your Safety
KISS 2U Short V3 – User Guide, Rev. 1.1 For Your Safety Your new Kontron product was developed and tested carefully to provide all features necessary to ensure its compliance with electrical safety requirements. It was also designed for a long fault-free life. However, the life expectancy of your product can be drastically reduced by improper treatment during unpacking and installation. -
Page 8: Lithium Battery Precautions
KISS 2U Short V3 - User Guide, Rev. 1.1 Lithium Battery Precautions If your product is equipped with a lithium battery, take the following precautions when replacing the battery. Danger of explosion if the battery is replaced incorrectly. Replace only with same or equivalent battery type recommended by the manufacturer. ... -
Page 9: Table Of Contents
KISS 2U Short V3 - User Guide, Rev. 1.1 Table of Contents Symbols ..........................................6 For Your Safety ........................................7 High Voltage Safety Instructions .................................. 7 Special Handling and Unpacking Instruction ............................7 Lithium Battery Precautions ..................................8 General Instructions on Usage ..................................8 Quality and Environmental Management .............................. - Page 10 KISS 2U Short V3 - User Guide, Rev. 1.1 6.3. Minimum System Clearance ................................33 6.4. Third Party Components ..................................33 Assembly ......................................34 7.1. Opening and Closing the Cover ................................34 7.2. Accessing Internal Components ................................. 35 7.2.1. Installing and Removing Riser Card Expansion Cards ......................36 7.2.2.
-
Page 11: List Of Tables
KISS 2U Short V3 - User Guide, Rev. 1.1 List of Tables Table 1: Scope of delivery ....................................16 Table 2: Accessories and spares parts..............................16 Table 3: Power LED and HDD LED activity description ......................... 21 Table 4: Drive bays ......................................23 Table 5: Mass storage devices .................................. -
Page 12: 1/ General Safety Instructions For It Equipment
KISS 2U Short V3 - User Guide, Rev. 1.1 1/ General Safety Instructions for IT Equipment Read and observe the instructions within this chapter that have been compiled for the operator’s safety and to ensure accordance with regulations. If the following General Safety Instructions for IT Equipment are not observed, it could lead to injuries to the operator and/or damage to the product. -
Page 13: Operation Of Laser Source Devices
KISS 2U Short V3 - User Guide, Rev. 1.1 Additional safety instructions for DC power supply circuits To guarantee safe operation of products with DC power supply voltages larger than 60 volts DC or a power consumption larger than 120 VA, observe that: ... -
Page 14: Electrostatic Discharge (Esd)
KISS 2U Short V3 - User Guide, Rev. 1.1 1.2. Electrostatic Discharge (ESD) A sudden discharge of electrostatic electricity can destroy static-sensitive devices. Proper packaging and grounding techniques are necessary precautions to prevent damage. Always take the following precautions: Transport ESD-sensitive products in ESD-safe containers such as boxes or bags. Keep electrostatic sensitive parts in their containers until they arrive at the ESD-safe workplace. -
Page 15: 2/ Introduction
KISS 2U Short V3 - User Guide, Rev. 1.1 2/ Introduction This user guide focuses on describing the special features of the KISS 2U Short V3 made by Kontron. New users are recommended to study the instructions within this user guide before switching on the power. The KISS 2U Short V3 is a scalable 2U rackmount system equipped with a micro-ATX mainboard, using Intel’s®... -
Page 16: 3/ Scope Of Delivery
KISS 2U Short V3 - User Guide, Rev. 1.1 3/ Scope of Delivery Check that your delivery is complete, and contains the items listed in Table 1: Scope of delivery. If damaged or missing items are discovered, contact the dealer. Table 1: Scope of delivery Part Qty. -
Page 17: 4/ Product Description
KISS 2U Short V3 - User Guide, Rev. 1.1 4/ Product Description The KISS 2U Short V3 expands the Kontron KISS computer line. KISS 2U Short V3 is a scalable 2U rackmount system equipped with a micro-ATX mainboard. The flexible customer-specific hardware system configuration and the robust construction with excellent mechanical stability offers the superior qualities of a computer designed for operation in harsh industrial environments. -
Page 18: Front Side
KISS 2U Short V3 - User Guide, Rev. 1.1 4.1. Front Side The front side consists of two handle brackets for installation in a 19” Industrial rack and a front access panel with two front access panel side-plates attached via the handle brackets. Figure 7: Front side with front access panel closed Handle brackets Key lock for the front access panel... -
Page 19: Figure 9: Front Side With Front Access Panel Open
KISS 2U Short V3 - User Guide, Rev. 1.1 The power button, LED Indicators, two USB 2.0 ports, filter pad holder and the integrated drives are located on the front side of the product behind the front access panel. Figure 9: Front side with front access panel open Bump stop for the front access panel D2: 3.5”... -
Page 20: Usb Ports
KISS 2U Short V3 - User Guide, Rev. 1.1 4.1.1. USB Ports The two USB 2.0 ports are located on the front side of the product (Figure 9, pos.11 and Figure 10, pos. 2), behind the front access panel. Figure 10: Power button and USB 2.0 ports Power button USB (2.0) ports If USB devices are connected to the USB ports on the front side, the front access panel door... -
Page 21: Front Access Panel
KISS 2U Short V3 - User Guide, Rev. 1.1 4.1.2.2. Power LED and HDD Activity LED The indicators (Figure 9, pos. 5 and Figure 11) of the KISS 2U Short V3 are located on the front side, behind the front access panel. -
Page 22: Fan Assembly
KISS 2U Short V3 - User Guide, Rev. 1.1 4.1.4. Fan Assembly The Fan assembly consists of two system fans (Figure 12, pos. 3) integrated in a user-friendly, replaceable fan assembly (hot-swap) mountable in a fan compartment on the front side of the product. The two system fans are temperature controlled via temperature sensors, to provide adequate airflow for optimal active cooling. -
Page 23: Filter Pad And Filter Pad Holder
KISS 2U Short V3 - User Guide, Rev. 1.1 4.1.5. Filter Pad and Filter Pad Holder The filter pad and the filter pad holder (Figure 9, pos. 3) are located behind the front access panel (Figure 7, pos. 3). The filter pad protects the product from dust and dirt and will over time become soiled by pollution. If heavily soiled, the filter pad can cause excessive heating of the product. -
Page 24: Rear Side
KISS 2U Short V3 - User Guide, Rev. 1.1 4.2. Rear Side The rear panel includes the external interfaces of the integrated mainboard, any expansion cards interfaces/ports, power supply unit (PSU) socket , and air exhaust ventilation holes. The positioning and number of interfaces varies depending on the system configuration. Figure 13: Rear side with micro-ATX mainboard with riser card Input power socket Slot brackets for expansion cards... -
Page 25: Figure 14: Rear Side With Micro-Atx Mainboard With Low Profile Cards
KISS 2U Short V3 - User Guide, Rev. 1.1 Figure 14: Rear side with micro-ATX mainboard with low profile cards Input power socket Slot brackets for expansion cards Power Supply Unit (PSU) ventilation holes Cut-outs for optional interfaces routed to the rear (9-pin D-SUB type) Card cage external fastening screws (for the mainboard board and expansion cards) -
Page 26: Interfaces On The Rear Side
KISS 2U Short V3 - User Guide, Rev. 1.1 4.2.1. Interfaces on the Rear Side Depending on the installed mainboard, the following external interfaces are available for peripherals. 4.2.1.1. External Interfaces KISS 2U Short V3 CFL Figure 15: External mainboard interface panel KISS 2U Short V3 CFL Mouse LAN2 Keyboard... -
Page 27: Power Supply Unit
KISS 2U Short V3 - User Guide, Rev. 1.1 4.2.3. Power Supply Unit The Power Supply Unit (PSU) is located on the rear side of the product and supplies the required internal 12V, 5V and 3.3V voltages using standard certified cabling. The KISS 2U ShortV3 supports a 400 W PSU with a nominal voltage range 100 V to 240 V. -
Page 28: Sides (Left And Right)
KISS 2U Short V3 - User Guide, Rev. 1.1 4.3. Sides (Left and Right) On the left and right sides of the KISS 2U Short V3 there are four M4 tapped screw holes (Figure 17, Figure 18, pos. 1) used for installation in a 19" industrial rack with slide rails. Figure 17: Left side Figure 18: Right side 4x M4 tapped holes (on both sides) -
Page 29: Cover
KISS 2U Short V3 - User Guide, Rev. 1.1 4.4. Cover Energy hazards-240 VA present inside the chassis! Before removing the top cover. Switch off the product properly by using the power switch on the front side and disconnecting the power cable from the mains power supply. Recommended intended used is closed and locked Only when the cover is secured is it ensured that the operator does not have access to the internal parts, loaded with hazardous energy. -
Page 30: System Configuration
KISS 2U Short V3 - User Guide, Rev. 1.1 4.5. System Configuration 4.5.1. System Configuration – Mainboard with Low Profile Expansion Cards Figure 20: Configuration with micro-ATX mainboard and low profile expansion cards Cover retaining plate on the front side Fastening screws for the slot brackets or expansion card slot brackets D1, D2 and D3: drives bays (stacked one above... -
Page 31: System Configuration -Mainboard With Riser Expansion Cards
KISS 2U Short V3 - User Guide, Rev. 1.1 4.5.2. System Configuration -Mainboard with Riser Expansion Cards Figure 21: Configuration with micro-ATX mainboard and riser expansion cards Cover retaining plate on the front side Retaining bracket for riser cards (not provided for system configuration with low profile cards) D1, D2 and D3: drives bays (stacked one above the other into a drive cage) -
Page 32: 5/ System Extension
KISS 2U Short V3 - User Guide, Rev. 1.1 5/ System Extension Due to the limited lifespan of expansion devices, Kontron recommends checking the condition of any installed expansion devices regularly and to pay attention to the manufacturer’s lifespan specifications. 5.1. -
Page 33: 6/ Thermal Considerations
KISS 2U Short V3 - User Guide, Rev. 1.1 6/ Thermal Considerations 6.1. Active Cooling The KISS 2U Short V3 is forced air-cooled using two internal system fans that force air to flow from the front to the back of the chassis. The processor and expansion cards have integrated cooling solutions or are equipped with corresponding cooling devices. -
Page 34: 7/ Assembly
KISS 2U Short V3 - User Guide, Rev. 1.1 7/ Assembly No special tools are required to open the KISS 2U Short V3. Before opening the KISS 2U Short V3 observe the instructions within this chapter. Energy hazards-240 VA present inside the chassis! Before removing the top cover. -
Page 35: Accessing Internal Components
KISS 2U Short V3 - User Guide, Rev. 1.1 Pulling the cover out slightly as shown in Figure 24, releases the cover’s centering and fixing brackets (Figure 19 pos.3 and pos. 4) from the retaining brackets of the chassis (Figure 20, pos. 1). Figure 24: Pull and release the cover Lift the cover up (on the rear edge) to remove the cover as shown in Figure 25. -
Page 36: Installing And Removing Riser Card Expansion Cards
KISS 2U Short V3 - User Guide, Rev. 1.1 7.2.1. Installing and Removing Riser Card Expansion Cards The mainboard with riser card is mounted on a card cage. To access the slot bracket or expansion card screws, the card cage must be pulled-out slightly. To install or remove a riser card expansion cards, proceed as follows: Switch off and disconnect the product from the mains power supply. -
Page 37: 8/ Installation
KISS 2U Short V3 - User Guide, Rev. 1.1 8/ Installation The KISS 2U Short V3 is designed for horizontal installation in a 19” industrial rack cabinet with the top cover facing upwards. There are no ventilation holes on the top and bottom side of the product, enabling installation directly on top of or below other systems in the 19”... -
Page 38: Removing The Handle Brackets And Front Access Panel Side-Plates
KISS 2U Short V3 - User Guide, Rev. 1.1 8.2. Removing the Handle Brackets and Front Access Panel Side-Plates The two handles brackets are removable. To remove the handles brackets, proceed as follows: Loosen and remove the two screw (Figure 8, pos. 5) that fasten the handles bracket and front access panel side-plates to the chassis (left side and right side). -
Page 39: Installing As A Desktop
KISS 2U Short V3 - User Guide, Rev. 1.1 8.4. Installing as a Desktop Before installing the KISS 2U Short V3 in a desktop environment, install the rubber feet as described in Chapter 8.1: Installing the Rubber Feet, to avoid scratching the installation surface. Additionally, observe the general instructions and any safety warnings within this chapter. -
Page 40: Installing Slide Rails (Option)
KISS 2U Short V3 - User Guide, Rev. 1.1 Verify secure mounting Mount using the slides rails on the left and right sides and ensure the front handle brackets are fastened to the left and right sides of the 19” Industrial rack cabinet. Due to possible access restrictions, before installing the KISS 2U Short V3 install all expansion card and connect required peripherals to the corresponding system ports. -
Page 41: Figure 28: Slide Rail Inner Part Fastened To Chassis
KISS 2U Short V3 - User Guide, Rev. 1.1 Figure 28: Slide rail inner part fastened to chassis Figure 29: Slide rail in pulled-out position Figure 30: Slide rail in pushed-in position Legend for Figure 28, Figure 29 and Figure 30 Side view of the KISS 2U Short V3 Locking/unlocking lever Screws attaching slide rail to the chassis... -
Page 42: 9/ Starting Up
KISS 2U Short V3 - User Guide, Rev. 1.1 9/ Starting Up Before staring up observe the instructions in Chapter 1: General Safety Instruction for IT Equipment and read the instructions and warnings in this chapter. Easy Access to Power Cable and Power Connectors The power cable must always remain easily accessible. -
Page 43: Operating System And Hardware Component Drivers
KISS 2U Short V3 - User Guide, Rev. 1.1 9.2. Operating System and Hardware Component Drivers The KISS 2U Short V3 is operational when switched on for the first time with pre-installed Operating System (OS) Windows 10 IOT 64-bit or Linux Ubuntu 64-bit and with all required drivers. Drivers are available from Kontron’s EMD customer section. -
Page 44: 10/ Maintenance And Prevention
KISS 2U Short V3 - User Guide, Rev. 1.1 Maintenance and Prevention Kontron systems only require minimal maintenance and care to maintain correct operation. Wipe the product with a soft dry cloth if required Remove persistent dirt using a soft, slightly damp cloth (only use a mild detergent). ... -
Page 45: Figure 34: Front Side Without Filter Pad
KISS 2U Short V3 - User Guide, Rev. 1.1 Do not wring out the filter pad, allow the filter pad to air dry. After cleaning and drying the filter pad, place the filter pad in the filter pad holder (Figure 36). Reattach the filter pad holder to the front side of the fan assembly by inserting the filter pad holder’s positioning latches (Figure 35, pos. -
Page 46: Replacing The Fan Assembly
KISS 2U Short V3 - User Guide, Rev. 1.1 10.2. Replacing the Fan Assembly Before replacing the fan assembly, read the following instructions: Operation is permitted only with a functional fan assembly! Replace a defective fan assemble only with an original fan assembly. Fan assembly replaceable during operation Replace fan only by qualified personnel or a suitably instructed persons aware of the associated dangers. -
Page 47: Replacing The Lithium Battery
KISS 2U Short V3 - User Guide, Rev. 1.1 Figure 39: Fan compartment without fan assembly Fan power control socket Fan compartment To replace with a new functional fan assembly, align the fan assembly with the fan compartment. Push the fan assembly carefully into the fan compartment until the fan assembly’s control connector (Figure 12, pos2) is firmly inserted into the internal fan power control socket (Figure 39, pos. -
Page 48: 11/ Technical Data
KISS 2U Short V3 - User Guide, Rev. 1.1 11/ Technical Data This chapter lists the main KISS 2U Short V3 technical specifications. 11.1. Block Diagrams Figure 40: Block diagram KISS 2U Short V3 CFL Low Profile KISS 2U Short V3 CFL Low Profile micro-ATX Mainboard 1x PCIe x1 Gen 3 1x PCIe x16 Gen 3 (4 lanes) -
Page 49: Figure 41: Block Diagram Kiss 2U Short V3 Cfl Riser Card
KISS 2U Short V3 - User Guide, Rev. 1.1 Figure 41: Block diagram KISS 2U Short V3 CFL Riser Card KISS 2U Short V3 CFL Riser Card micro-ATX Mainboard 2280 2x System Fans Audio 2x LAN (GbE) 2x USB 3.1 Gen 1 2x USB 2.0 2x USB 3.1 Gen 2 Power Switch... -
Page 50: Technical Specification
KISS 2U Short V3 - User Guide, Rev. 1.1 11.2. Technical Specification KISS 2U Short V3 CFL Board Mainboard D3641-S (micro-ATX) Processor Type Intel® Core™ i7, i5, i3 series 7 Or Intel® Xeon® E-21XX series Chipset Intel® C246 Express Memory 4x DDR4 2666 UDIMM/ ECC support only with Xeon E Max. -
Page 51: Power Specification
KISS 2U Short V3 - User Guide, Rev. 1.1 KISS 2U Short V3 CFL Software Operating System MS Windows 10 IoT x64 Linux Ubuntu 1804 LTSB Desktop 64 bit BIOS AMI UEFI BIOS 5.x Only UEFI BIOS is supported. UEFI only! No legacy support and no Master Boot Record (MBR) installation. 11.3. -
Page 52: Ce Directives And Standards
KISS 2U Short V3 - User Guide, Rev. 1.1 Environment Description Altitude Operating 5,000 m (16,400 ft.) Max. Storage & Transit 10,000 m (32,810 ft.) Max. Shock Operating 15 g, 11 ms, duration Storage & Transit 30 g., 11 ms, duration Vibration Operating 10 Hz –... -
Page 53: 12/ Standard Interfaces- Pin Assignments
KISS 2U Short V3 - User Guide, Rev. 1.1 Standard Interfaces- Pin Assignments 12.1. Keyboard Connector Pin Assignment Signal Name Keyboard Connector Data Clock Keyboard_On fuse protected low asserted pulse 12.2. PS/2 Mouse Connector Pin Assignment Signal Name PS/2 Connector Data Clock Keyboard_On... -
Page 54: Display Port Pin Assignment
KISS 2U Short V3 - User Guide, Rev. 1.1 12.4. Display Port Pin Assignment Signal Name Signal Name DP (V1.2) Connector TX0+ TX3- TX0- DVI dongle detect/ GND TX1+ GND / CEC for HDMI AUX+ TX1- TX2+ AUX- Hotplug detect TX2- TX3+ +3.3 V... -
Page 55: Lan Connector Pin Assignment
KISS 2U Short V3 - User Guide, Rev. 1.1 12.7. LAN Connector Pin Assignment Signal Name (10/100/1000) Signal Name (10/100) RJ45 (female) Connector MX1+ Link/Activity Speed MX1- MX2+ MX3+ MX3- MX2- MX4+ MX4- 12.8. USB 3.0 and USB 3.1 (Gen1/Gen2) Port Pin Assignment Signal Name Signal Name USB 3.0/3.1 Type A Connector[2]... -
Page 56: 13/ Technical Support
KISS 2U Short V3 - User Guide, Rev. 1.1 Technical Support In order to request technical support, send an email with the information below to support@kontron.com Product name Product model number Serial number of the unit Brief problem description ... - Page 57 KISS 2U Short V3 - User Guide, Rev. 1.1 Sent the product to the following delivery address: Kontron Europe GmbH RMA Support Lise-Meitner-Str. 3-5 86156 Augsburg Germany Phone: +49 (0) 821 4086-0 Fax: +49 (0) 821 4086 111 Email: service@kontron.com After Kontron Europe GmbH receives the product, a confirmation of the order is sent via email to the address named on the RMA sheet.
-
Page 58: 14/ Storage And Transportation
KISS 2U Short V3 - User Guide, Rev. 1.1 Storage and Transportation 14.1. Storage If the product is not in use for an extended period time, disconnect the power plug from the mains power source .If it is necessary to store the product then re-pack the product as originally delivered to avoid damage. The storage facility must meet the products environmental storage requirements as stated within this user guide. -
Page 59: 15/ Warranty
KISS 2U Short V3 - User Guide, Rev. 1.1 Warranty Kontron defines product warranty in accordance with regional warranty definitions. Claims are at Kontron’s discretion and limited to the defect being of a material nature. To find out more about the warranty conditions and the defined warranty period for your region, following the steps below: Visit Kontron’s Term and Conditions webpage. -
Page 60: 16/ Disposal
KISS 2U Short V3 - User Guide, Rev. 1.1 Disposal Final disposal of this product after the product’s service life must be accomplished in accordance with the applicable country, state, or local laws or regulations. Kontron manufactures products to satisfy environmental protection requirements where possible. -
Page 61: Appendix A: List Of Acronyms
KISS 2U Short V3 - User Guide, Rev. 1.1 Appendix A: List of Acronyms Table 7: List of Acronyms Advanced Technology eXtended Management Engine Interface NCSI Active Management Technology Network Communications Services Interface Application Program Interface Operating System BIOS Basic Input Output System Plastic Circuit Board Command-Line Interface Peripheral Component Interconnect... -
Page 62: About Kontron
KISS 2U Short V3 – User Guide, Rev. 1.1 About Kontron Kontron is a global leader in embedded computing technology (ECT). As a part of technology group S&T, Kontron offers a combined portfolio of secure hardware, middleware and services for Internet of Things (IoT) and Industry 4.0 applications.
