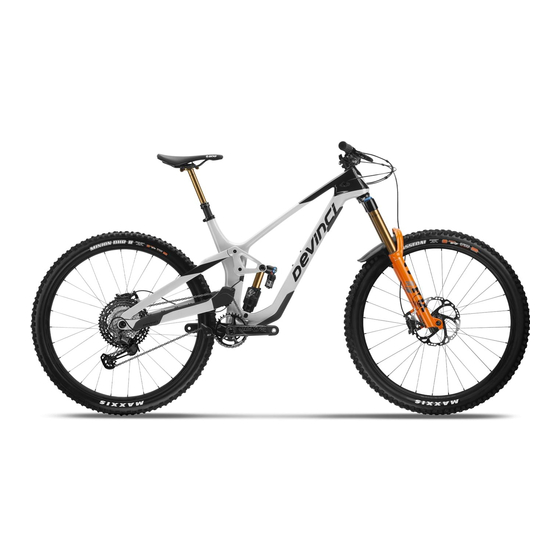

Summary of Contents for devinci Spartan Carbon
- Page 1 Spartan Carbon 27/09/2016...
- Page 2 KFC18003 BEARING KIT SPARTAN 2018 KFC18018-01 SPLIT PIVOT SHAFT SPARTAN BLACK KFC11051 DERAILLEUR HANGER SPLIT PIVOT 12X142/148 KFC18001-01 SPARTAN CARBON SHOCK BOLT BLACK KFC18005 CABLE GUIDE KIT SPARTAN CARBON KFC18007 CARBON SKIDPLATE/BOLT KIT SPARTAN PROTECTOR KIT SPARTAN CARBON KFC18009 FOAM FOR INTERNAL ROUTING...
- Page 3 ASSEMBLY INSTRUCTIONS: OF THE BEARINGS. CARBON FRAME ALUMINIUM FRAME POSTION MARKS ON THE BACK. POTENTIAL CONTACTS. CLEANING INSTRUCTIONS: RevA SPARTAN CARBON 2018...
- Page 4 ELECTRONIC TRANSMISSION AND SEATPOST Seatpost cable Rear derailleur cable Rear brake cable Cable outside the frame Cable inside the frame Step 1 Pass the seat cable into one of the two holes in the right cable guide and exit the end by the seat post.
- Page 5 CABLE TRANSMISSION AND SEATPOST Seatpost cable Rear derailleur cable Rear brake cable Cable outside the frame Cable inside the frame Step 1 Pass the seat cable into one of the holes of the right cable guide. Step 8 Attach the cables with plastic clamps in the holes provided for this.
