Summary of Contents for iJoy Solo Mini
- Page 1 Solo Mini MANUAL...
- Page 2 Parameter 1*Solo Mini Device Product Introduction: 1*USB cable IJOY Solo Mini 75W VW/TC Box Mod W/O Battery, an upgraded version of Asolo. 1*Warranty Card It comes much cuter and more fashionable appearance and new integrated 1*Manual magnetic battery cover based on interchangeable 18650,which is the first...

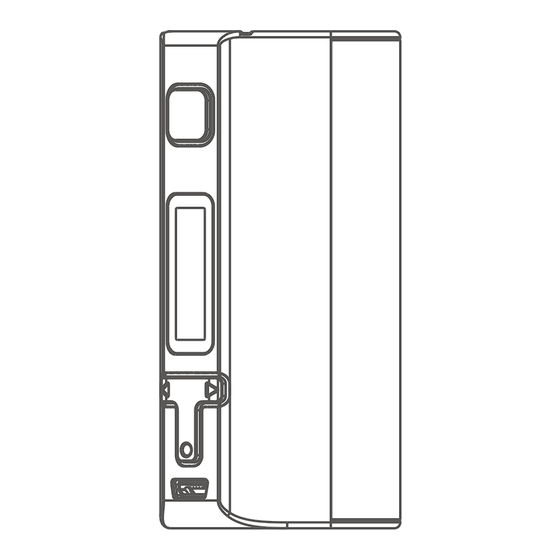

- Page 3 Specifications 23.4mm 40.4mm Screen size: 0.91"OLED. ● Size: 84*40.4*23.4mm ● Output Wattage: 5watts-75watts. ● Output Voltage: 0.5Volts-8.5Volts. ● Output Current: 1.0A-20A. ● Temperature Range(Ti/Ni): 300-600°F/ 150-315℃ ● Temp Control mode on Nickel and Titanium wire Resistance ● Range: 0.08ohm-1.5ohm SoloMini SoloMini...
- Page 4 Taste Control mode on regular wire Resistance Range: 0.1ohm-2.5ohm. Fire method: Stainless steel metal stretch button. ● ● Taste Control mode on Kanthal wire Resistance Range: 0.5ohm-2.5ohm. Adjust power method: up and down button. ● ● Wattage control mode wire Resistance Range: 0.08ohm-3.0ohm. GUI operate: YES.
- Page 5 Charging way: user can use charging port to charge Solo Mini, or take out How to use: ● the battery and charged it by 18650 charger. 1.Installing The Batteries The Solo Mini is a single 18650-battery mod that features a quick-access Slide down the battery cover and put one 18650 cell into the battery body.
- Page 6 Press the fire button 5 times in quick succession to turn the device on After ● switch on , OLED display”IJOY Solo Mini” at stand by mode. Voltage Press the fire button 5 times in quick succession to turn the device off.
- Page 7 When a new atomizer is directly connected in TC mode, the screen will ● display "TC SETUP NEED TO LEARN MORE THAN 2’S”. Then the device needs E-liquid Indicator Temp wattage to go back to VW mode to learn. Atomizer Temp percentage Keep pressing the "T"...
- Page 8 For better Taste Control, please make sure the atomizer base is well- ● Press up button to increase temp percentage 100% to 101%-102%-...-110%, connected to Solo Mini. and engineers suggest to learn before entering means the working wattage is increased by percent too. either TC mode.
- Page 9 Keep pressing the "T" button, the screen will go back to VW mode. ● UP" and "Down" buttons and “T" button to confirm. Press up and down to choose Ni/Ti mode, then wait 2 seconds and Solo Mini When the resistance changes more than 0.15Ω, the screen will show "NEW ●...
- Page 10 3 times) How to reset? (Keep pressing Pls shutdown the Solo Mini device, Press the fire button first then along with T button) the “T” button, the screen will show "reset ok.“So it means having cleared the memories of the before used atomizers.
- Page 11 When you power on the device ,it will show "New Atomizer". device will stop working 15 seconds. Refill the e-liquid and go back to wattage mode to learn again. Fire button 2. If E-liquid is enough, but keep flashing that means the learning time was Down T button not enough and the device needs to go back to wattage mode to learn again.
- Page 12 Low power alert : When battery voltage is below 3.2V , 6.Malfunction Indication And Protection ● LOW BATTERY the device shows “ LOW BATTERY”. Time out protection : When the button is pressed for ● PCB temperature overheat protection: ● over10 seconds, the output will shut off and the OLED TIME OUT When the temperature of device is too high, the output...
