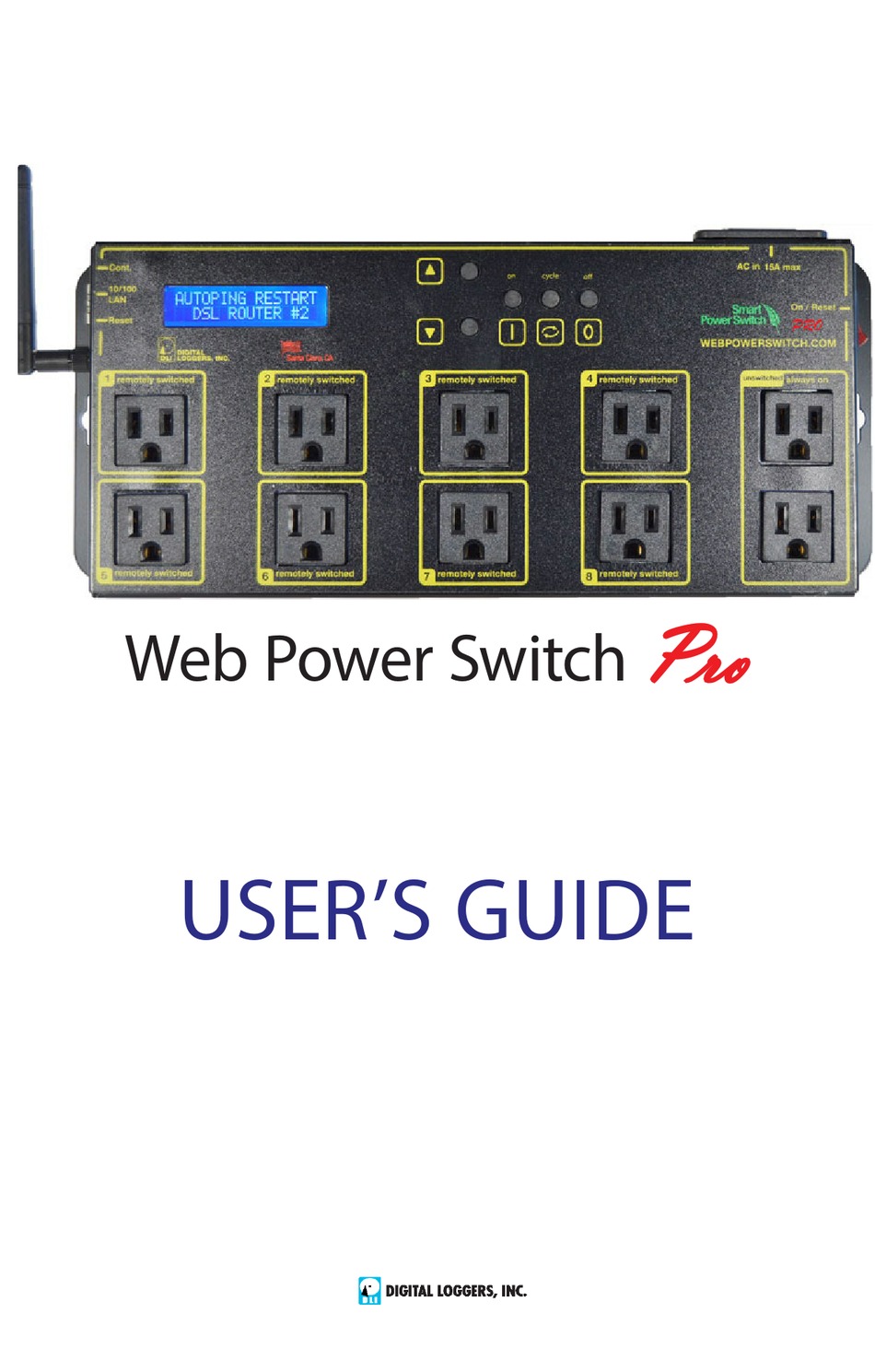

- Page 1 Web Power Switch USER’S GUIDE...
- Page 2 AutoPing continuously monitors an IP address. If a server, router, or other peripheral goes down, AutoPing can automatically reboot it without user intervention. The Pro can monitor several devices and multiple IPs simultaneously. 8 Switched Duplex Outlets + 2 Unswitched Outlets Eight individually switched control circuits are provided.
-
Page 3: Package Contents
• Compatible rack mount and DIN mount relay versions are in stock Inspection Please contact the freight carrier immediately if your package appears opened or damaged in transit. Call DLI at (408) 330-5599 for tech support, service, and hardware upgrades. The product performs a brief self-test when first powered up. -
Page 4: Quick Setup
If you don’t receive a response, proceed to the IP Setup section below. • Log in to the Pro using the default user name admin and the password 1234 Note: “admin” must be entered in lower case. - Page 5 Properties. Proceed to step Windows Step 2 The second step is adding an IP such as 192.168.0.50 Temporarily disable DHCP while configuring the Pro Select: Internet Protocall TCP/IP V4 Properties and click Properties.
-
Page 6: Network Configuration
Enter a compatible static IP such as: 192.168.0.1 Click Apply and close windows. Ping the Pro to confirm the connection. Point your browser to 192.168.0.100 Log in. Detailed instructions are at digital-loggers.com/ip_setup Mac OS X Turn AirPort off temporarily. Click the Apple logo, then System Preferences, then Network. - Page 7 The IP address of the controller needs to initially match the “class C” of your system. In other words, the first three bytes (192.168.0) must match the IP on your computer to access the Pro. Using a ping utility is a good way to confirm a valid network configuration. An “unreachable”...
- Page 8 The OFF time for a power cycle (ie. 10s OFF before turning ON) is adjusted here on the web UI setup page: • Holding ON or OFF down for a few seconds has a locking effect. For example, if an outlet is currently in the ON state, it can be locked in this state by long-pressing ‘1’.
- Page 9 IP addresses are comprised of four octets per page. Select an octet with ‘UP’ (next) or ‘DOWN’ (previous). Press ‘1’ to increment the octet, or ‘0’ to decrement. HTTP Port Press ‘1’ to increment the port, or ‘0’ - to decrement. Same Subnet Restriction Press ‘1’...
- Page 10 Reset-to-Defaults Press the reset button gently to enter the reset menu: Please be gentle. Mashing it with a screwdriver could damage it. Consider exporting a backup of your settings first. The LCD displays an overview of reset options on the second line. Use UP and DOWN buttons to select a reset option: Clear Lock Bits Clears protection bits only.
- Page 11 Scripting The Lua language lets you easily customize the Pro. Scripts may be started manually, automatically on power-up, by external http commands, or by AutoPing events. Find a list of commands and examples at: digital- loggers.com/scripts.html...
- Page 12 The keypad may be disabled on the Setup page. You may want to Cycle a device which is connected to the Pro. This feature is useful for rebooting Ethernet devices which may interrupt the web link to the controller.
-
Page 13: Setup Page
Power-On Sequence Delay When a time value is entered in the All ON Sequence Delay field, the Pro will pause for a period of time before switching each outlet on in sequence. This delay helps prevent power surges and blown circuit breakers which can occur when multiple devices are switched on simultaneously. - Page 14 Use the Protect button to lock the network settings. Once protected, the network settings cannot be changed except by pressing the physical reset button on the side of the Pro. AutoPing AutoPing Operation and Settings AutoPing is an automatic system for rebooting IP equipment without human intervention.
- Page 15 during normal Ethernet operation, between 5 and 10 pings is suggested. Times to Attempt Reboot If you have an unreliable target device, or one that may be damaged be excessive power cycling, you can limit the number of times it will be rebooted here.
-
Page 16: Internet Access
Safety Shutdown The Pro uses a UL rated thermal circuit breaker for safety. In the event of an overload, the breaker will trip. Correct the situation by removing excessive load, then allow a minute or two for the breaker to cool. -
Page 17: Open Source Code
In compliance with the spirit of the GNU public license, most source code is provided for reference. Purchasing a TLA and signing an NDA from Atheros are highly recommended before attempting any custom development. DLI can’t provide warranty or offer tech support for modified units. Technical Support & FAQs Please register. - Page 18 Latest Manual FAQs AutoPing Rack Mount Model Scripting DLI Homepage digital-loggers.com Web Power Switch...
-
Page 19: Specifications
Specifications Applications Test equipment. Commercial, industrial, and residential remote power control and reboot Indoor use only Audio Alert 73dBa at 12” programmable Circuit Breakers Manual reset, 15A Thermal Supplemental, UL Clock / RTC 15 year Li battery, under 2 grams Controls / Display Reset -to-factory-default switch, 2x16 Backlit LCD w/ PowerSave, 5 button keypad, manual reset... -
Page 20: Limited Five Year Warranty
WARRANTY. Warranty service requires an original invoice from DLI and an RMA number provided by technical support. RMA material must be shipped prepaid to DLI. RMA numbers are valid for 15 days from date of issue. This warranty does not cover products which are modified (including firmware modifications), subjected to rough handling, or used in applications for which they were not originally intended. -
Page 21: Compatible Products
Compatible Products: 90-240VAC Smart PDU DIN Relay 2x50A, 8x15A DC Smart Switch (+12,+24, or -48) Smart PoE Injector Call (408) 330-5599 Web Power Switch... - Page 22 2695 Walsh Ave, Santa Clara, CA 95051 (408) 330-5599 digital-loggers.com...
