- Page 1 HT36 User manual Copyright HT ITALIA 2019 Release EN 2.00 - 16/12/2019...
- Page 2 1. PRECAUTIONS/SAFETY MEASUREMENTS This instrument complies with safety standards related to electronic measuring instruments. For your own safety and to avoid damaging the instrument follow the procedures described in this instruction manual and read carefully all notes preceded by this symbol ...
-
Page 3: General Description

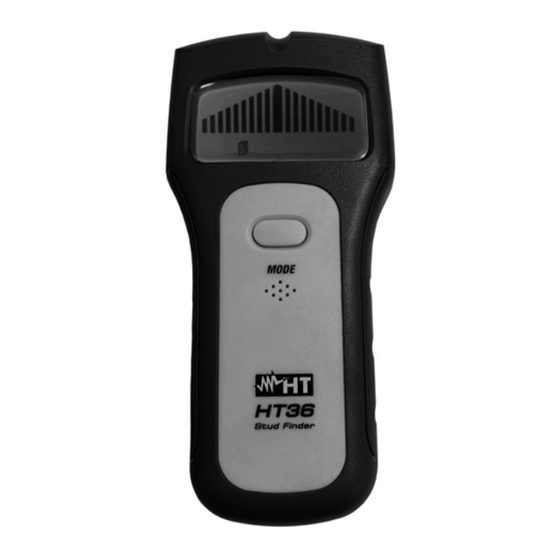

2. GENERAL DESCRIPTION The instrument is able to detect:: Presence of wooden studs and hidden conductive objects Presence of hidden metal objects Presence of hidden AC live wires inside walls, ceilings, concrete walls and other common materials. - Page 4 3.2. Supply voltage The instrument is powered by 1x9V battery type IEC 6F22 included on meter. When battery is low the symbol " " is displayed. To replace/insert the batteries follow the instructions indicated in § 6. 3.2. Storage After a period of storage under extreme environmental conditions exceeding the limits mentioned in §...
- Page 5 5. OPERATIVE INSTRUCTIONS 5.1. Wooden/conductive objects and metals detection 1. Switch on the instrument by pressing the TEST key for 2s 2. Press the MODE key to select the detection of wooden studs or conductive objects (symbol shown on the display) or the detection of metal objects (symbol shown on the display 3.
- Page 6 7. Repeat the previous steps several times in order to accurately locate the hidden object 8. Long press the MODE key to switch off the instrument CAUTION The instrument is able to detect any material with a minimum of conductivity, but is NOT able to detect the presence of plastic materials The calibration must be performed on a...
- Page 7 5.2. AC live wires detection 1. Switch on the instrument by pressing the TEST key for 2s 2. Press the MODE key to select the detection of AC voltage live wires (symbol shown on the display) 3. Place the instrument on the surface that encloses the object being searched and press the TEST key in order to perform a first calibration.
-
Page 8: Battery Replacement
9. Perform a new scan as indicated in the previous points by slowly moving the instrument from left to right in the space between the 1st and 2nd marker 10. Mark the surface with the 3rd marker and the 4th marker (see Fig. -
Page 9: Technical Specifications
7. TECHNICAL SPECIFICATIONS General specifications Conductive objects sizes: min 30x30mm (1.2x1.2in) Conductive objects depth: max 18mm (0.7in) Metal objects diameter: max 25mm (1in) Metal objects depth: max 30mm (1.2in) AC voltage live wires: 90V ÷ 250V / 50-60Hz AC voltage live wires depth: max 50mm (2in) Power supply Battery type:... - Page 10 Transportation costs are charged to the Customer. HT ITALIA SRL Via della Boaria, 40 48018 – Faenza (RA) – ITALY Tel: +39-0546-621002 Fax: +39-0546-621144 Web: www.ht-instruments.com...
