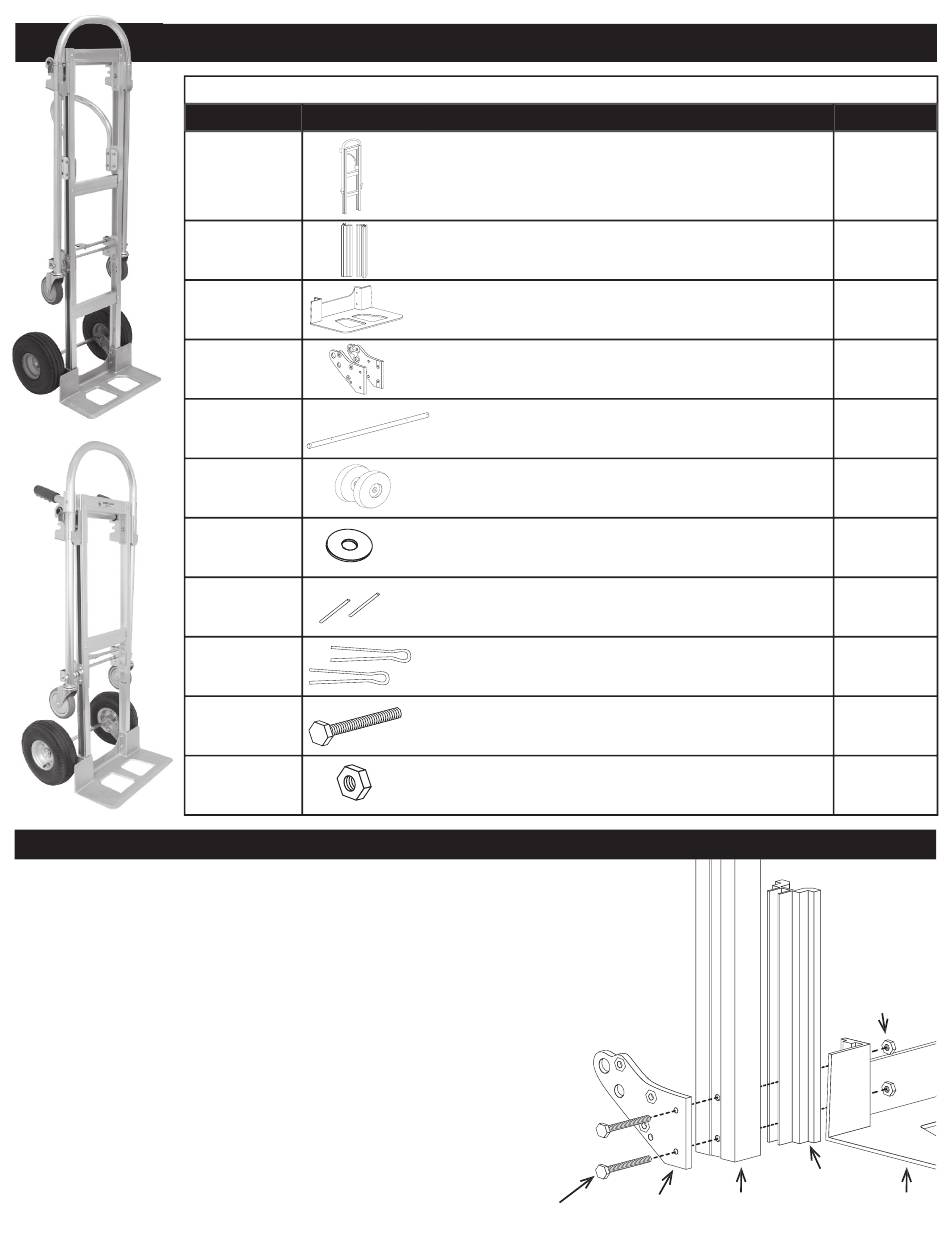

RWM Casters RWM CONVERTIBLE HAND TRUCK Assembly Instructions

Advertisement

REFERENCE

STEP 1

• Remove supplied Hex Bolts (J) and Lock Nuts (K) from
Frame Assembly
• Remove and discard white nylon ties from Wheel Brackets (D)
• Working from outside in, reinstall Hex Bolts (J) through
Wheel Brackets (D), Frame (A), Frame Reinforcements (B)
and Nose Plate (C).
• Align Wheel Brackets (D) so that the integrated bosses fit into the
recesses on the outside of the Frame (A).
• The curvatures of the brackets point toward the top of the Frame
(A) and the protrusion is on the same side of the frame as the blue
handle.
• The Nose Plate (C) protrudes from the opposite side of the blue
handle
• Reinstall the Locking Nuts (K). DO NOT TIGHTEN.
RWM CONVERTIBLE HAND TRUCK ASSEMBLY INSTRUCTIONS
A
B
C
D
E
F
G
H
I
J
K

PART LIST

PART
HC1 Large Convertible Frame
Frame Reinforcements
CA2 Nose Plate
BRK Wheel Brackets
A1 Axle
10" Wheels
5/8" Flat Washers
3/16" x 1-7/8" Roll Pin
1/8" x 1" Cotter Pin
5/16" x 2-1/4" Hex Bolts
5/16" Lock Nuts
Wheel Bracket
Hex Bolts
(J)
Frame
Reinforcement
Frame
(B)
(A)
(D)
QTY
1
2
1
1 Pair
1
2
2
2
2
4
4
Lock Nuts
(K)
(K)
Nose Plate
(C)
