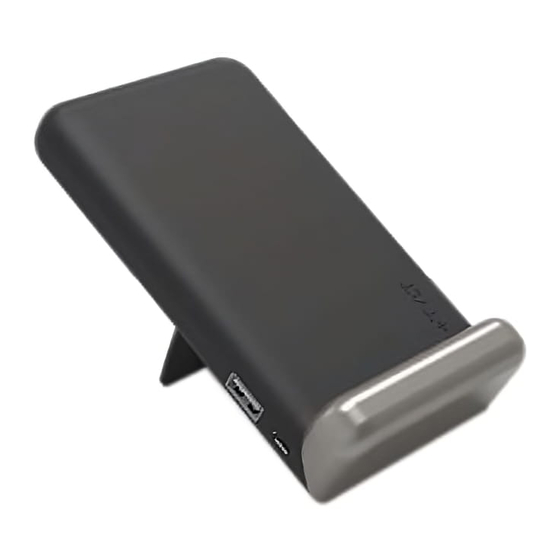

- Page 1 User manual Customer Name：TYLT, inc. Manufacturer Name：SHENZHEN GOODWIN TECHNOLOGY CO.,LTD Product Model： QIPVTPPBK-T Product Type： Wireless charger Pivot Page 1 of 9...
- Page 2 Revision History Rev. No. Details Date Changed by Approved by Initial version issue 10/30/2018 Page 2 of 9...
-
Page 3: Table Of Contents
TABLE OF CONTENTS 1. Description……………………………………………………………………………Page4 2. Input Characteristics…………………………………………………………………Page4 3. Key function description……………………………………………………………Page4 4. Output Characteristics………………………………………………………………Page4 haracteristics……………………………………........Page5 5. Battery 6. Protection Characteristics…………………………………………………………..Page5 7. LED Indication…………………………………………………………………………Page5 8. Product Appearance Drawing………………………………………………………Page6 9. Product Pictures………………………………………………………………………Page7 10. Reliability Test……………………………………………………………………….Page8 11. Certifications………………………………………………………………………….Page9 Page 3 of 9... -
Page 4: Description
1. Description. This is a portable product of mobile power + wireless transmitter, which uses cost-effective integrated chip, high-quality ultra-thin polymer lithium-ion battery, cost-effective products that meet safety standards. 2. Input Characteristics. 2.1.Lightning Input voltage: 5V When the Lightning input is charged, the priority Qi wireless charging works, the wireless charging is 5W, and the input maximum current is 1.5A (the wireless charging conversion rate is ≥61%). -
Page 5: Battery Characteristics
charging is no load, the output is turned off around 30S .(Note: USB port output conversion rate ≥ 90%) 5. Battery characteristics. 5.1. Lithium-ion battery, nominal capacity (3.7V/5000mAh), in line with UL certification standards. 6. Protection Characteristics. 6.1. Product with overcurrent protection, overcurrent range (2.4-2.8A). 6.2. -
Page 6: Product Appearance Drawing
8. Product Appearance Drawing. Page 6 of 9... -
Page 7: Product Pictures
9 . Product Pictures. Page 7 of 9... -
Page 8: 10.Reliability Test
10.Reliability Test . 10.1. (High-Low Temp)： Place products into 70℃±5℃temperature test chamber in 8 hours, Then to have products recover to normal temp in normal room temperature. Place products into -20℃±5℃temperature test chamber in 8 hours, Then to have products recover to normal temp in normal room temperature. 10.2. -
Page 9: 11. Certifications
11. Certifications. 11.1. EMC Standards: FCC ID (FCC CFR47 PART 15C:2017) EMC：FCC ID（FCC CFR47 PART 15C：2017） 11.2.Wireless charging standard: WPC Qi V1.2.4 WPC Qi V1.2.4 11.3.CEC Standards：CEC-400-2017-002A CEC-400-2017-002A 11.4. CB certification： Warning This device complies with part 15 of the FCC Rules. Operation is subject to the condition that this device does not cause harmful interference (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
