Summary of Contents for SYP PU-515PL-WPRX

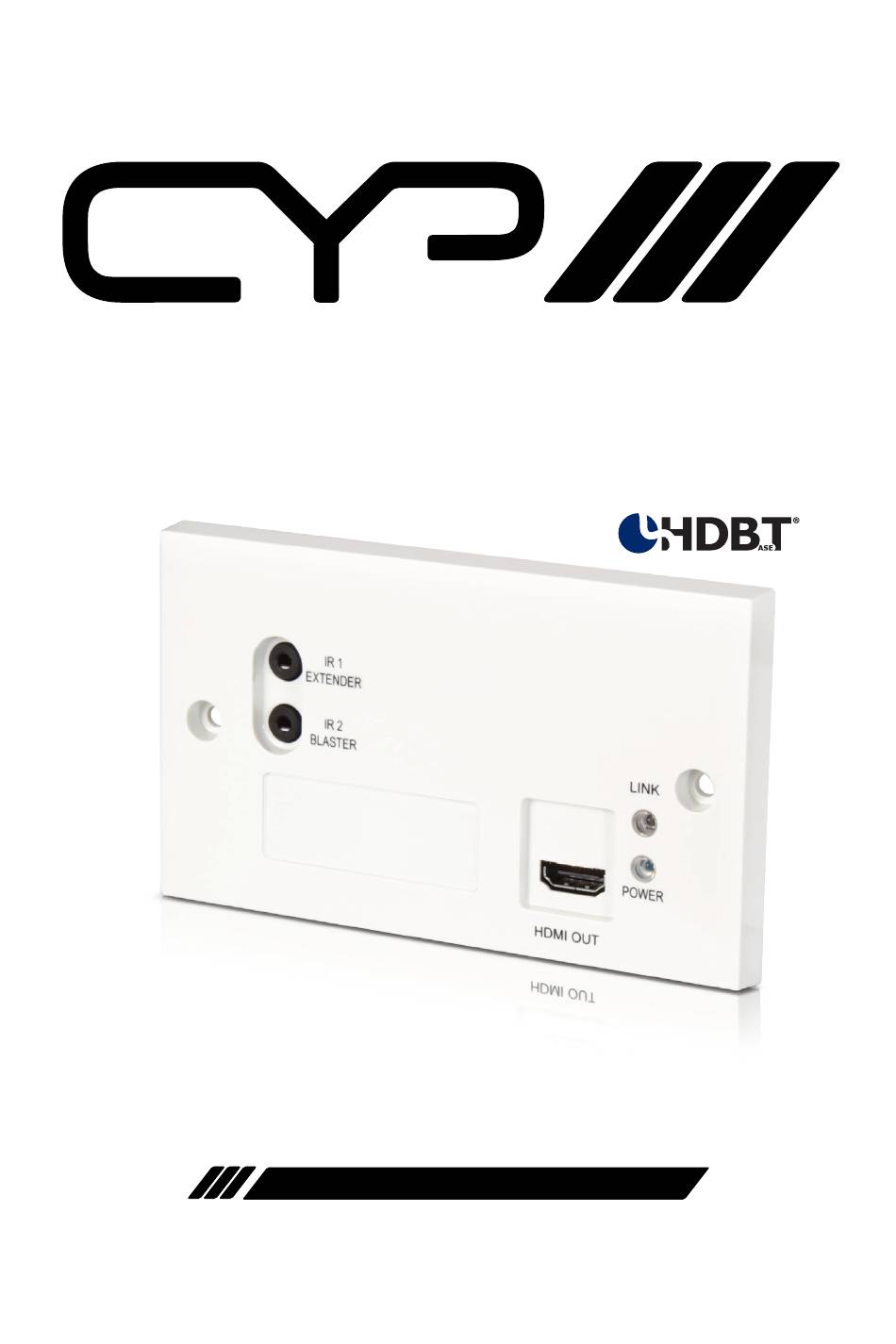

- Page 1 PU-515PL-WPRX HDBaseT™ LITE Wall Plate Receiver with PoC & 2-Way IR (up to 60m) OPERATION MANUAL...
- Page 3 DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. CYP (UK) Ltd assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. CYP (UK) Ltd assumes no responsibility for any inaccuracies that may be contained in this document.
- Page 4 SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons.
-
Page 5: Table Of Contents
CONTENTS 1. Introduction ...........6 2. Applications ...........6 3. Package Contents ........6 4. System Requirements ......6 5. Features ..........7 6. Operation Controls and Functions ..8 6.1 Receiver Front Panel ......... 8 6.2 Receiver Rear Panel ........9 6.3 IR Cable Pin Assignment ......9 7. -
Page 6: Introduction
1. INTRODUCTION The PU-515PL-WPRX allows uncompressed HDMI signals, control and power to be transmitted over a Single CAT5e/6/7 cable. This device allows the distribution of Video, Audio, Power over Cable (PoC) and 2-way IR control functionality over the same CAT5e/6/7 cable. These combined HDMI and control signals can be transmitted up to lengths of up to 70 metres at 1080p or 40 metres at 4K. -
Page 7: Features
5. FEATURES HDMI 1.x and DVI 1.0 compliant HDCP compliant Supports HDMI 3D and 4K x 2K features Supports HDCP repeater and CEC bypass Supports distance up to 70m/229ft at 1080p and 40m/131ft at 4K through CAT5e/6/7 cable HDMI input resolutions up to 4K@60Hz (YUV 4:2:0, 8-bit) or 4K@30Hz ( YUV 4:4:4, 8-bit) Supports pass-through of audio formats including LPCM 2.0/5.1/7.1, and Bitstream over HDMI... -
Page 8: Operation Controls And Functions
6. OPERATION CONTROLS AND FUNCTIONS 6.1 Receiver Front Panel IR 1 EXTENDER IR 2 BLASTER LINK POWER HDMI OUT IR 1 EXTENDER: Connect an IR Extender cable for IR signal reception. Signals received will be transmitted to the transmitter unit. Ensure that the remote being used is within the direct line-of-sight of the IR Extender. -
Page 9: Receiver Rear Panel
6.2 Receiver Rear Panel CAT5e/6/7 IN: Connect to the transmitter unit with a single CAT5e/6/7 cable for transmission of all data signals. 6.3 IR Cable Pin Assignment IR Blaster Power IR Blaster Signal IR Extender IR Signal Power Ground... -
Page 10: Connection Diagram
7. CONNECTION DIAGRAM Option 1: Point to Point DVD/Blu-ray Player 1.5m 60° HDMI 60° Input IR Blaster IR Extender Power Supply IR2 Extender Compatible HDMI In RS232 In IR1 Blaster Transmitter unit with DC 24V Power Link Lite CAT 5e /6 Out Single Note: The receiver is CAT5e/6/7... -
Page 11: Option 2: Matrix System
Option 2: Matrix System TV/Display Extender HDMI 1.5m Output 60° IR Blaster 60° IR 1 EXTENDER IR 2 BLASTER LINK POWER HDMI OUT Single Internet CAT5e/6/7 Router Cable Up to 7 Other Zones HDBaseT IR OUT IR OUT IR OUT IR OUT IR OUT IR OUT... -
Page 12: Specifications
8. SPECIFICATIONS 8.1 Technical Specifications Video Bandwidth 340 MHz/10.2 Gbps Input Ports 1×CAT5e/6/7, 1×IR Extender Output Ports 1×HDMI, 1×IR Blaster IR Frequency 30 – 50kHz (30 – 60kHz under ideal conditions) Baud Rate Up to 115200/sec ESD Protection Human-body Model: ±8 kV (air-gap discharge) ±4 kV (contact discharge) Dimensions... -
Page 13: Cat5E/6/7 Cable Specification
8.2 CAT5e/6/7 Cable Specification 1080p 4K30 4K60 (4:4:4) (4:2:0) Cable Length 8-bit 12-bit 8-bit 8-bit High Speed HDMI Cable HDMI Input HDMI Output Ethernet Cable Cat.5e/6/7 1080p (FHD Video) - Up to 1080p@60Hz, 12-bit colour - Data rates lower than 5.3Gbps or below 225MHz TMDS clock 4K30 (UHD Video) - 4K@24/25/30Hz &... -
Page 14: Acronyms
9. ACRONYMS ACRONYM COMPLETE TERM CAT5e Category 5 Cable CAT6 Category 6 Cable Consumer Electronics Control Digital Visual Interface HDCP High-bandwidth Digital Content Protection HDMI High Definition Multimedia Interface Infrared... - Page 16 CYP (UK) Ltd., Unit 7, Shepperton Business Park, Govett Avenue, Shepperton, Middlesex, TW17 8BA Tel: +44 (0) 20 3137 9180 | Fax: +44 (0) 20 3137 6279 Email: sales@cypeurope.com www.cypeurope.com v1.03...
