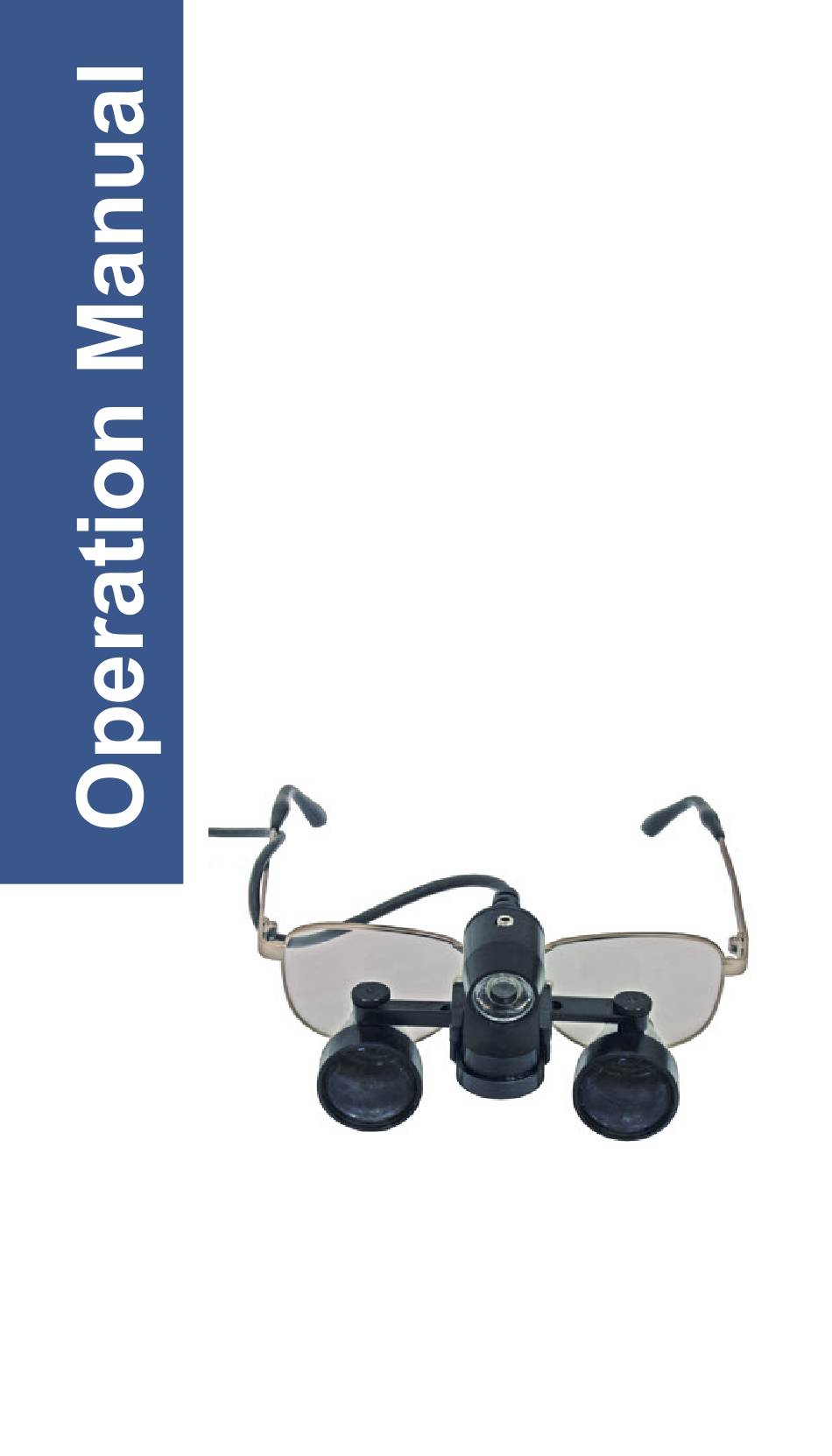

- Page 1 LED Headlight Manual Model P1181...
- Page 2 Owner’s Record Model Number Serial Number Date Purchased Location Purchased...
-
Page 4: Table Of Contents
Contents Symbols Warnings Description Set Up Operation Maintenance Specification Package Contents Warranty Product Support... -
Page 5: Symbols
Symbols Symbols Used in this Manual or on the Device This term contains important information regarding set-up and operation to facilitate ease NOTE: of use and obtain effective results. This term contains critical information regarding safe handling and use of this system. Device malfunction or property damage could result if these instructions are not followed. -
Page 6: Warnings
Warnings Warning - This device presents a risk of burn, fire or explosion Actions To Be Taken/ Hazard Prevented The Li-ION Only attempt to battery may recharge the battery overheat if using the supplied improperly battery charger. recharged. Attach to battery Burn risk to before plugging into personnel. -
Page 7: Description
Description Description The P1181 LED Headlight Illuminator is a high intensity spot light source for use with surgical eyeglass systems. The P1181 system consists of a remote high output LED lamp assembly integrated into a position adjustable aluminum carrier. A single cable supplies the power from the intensity controller. - Page 8 Carefully unpack all components. Inspect all components for any signs of damage, which may have occurred during shipping. If shipping damage is suspected, notify Seiler Inc or your authorized Seiler distributor immediately. Charge the Plug the charger into the unit before plugging unit before into wall.
-
Page 9: Set Up
Setup (cont.) Adjust the LED beam position by tilting the Adjust beam LED module. Tension to maintain position angle and set can be adjusted with the small set screw tilt tension using the supplied tool by tightening clock- wise. Use small adjustments to avoid damage from over tension. -
Page 10: Operation
Operation Power Up Press the On/Off button to power up the LED module. Photo shows LED Controller with On/Off button depressed. Set Intensity Set the output brightness level by depressing the intensity button. There are 4 levels of intensity. The unit will step thru the various intensity levels as illustrated below. -
Page 11: Maintenance
Maintenance Maintenance If the unit should malfunction, and this troubleshooting matrix does not correct the problem, then contact technical assistance. CHECK .... Recharge battery. Won’t CHECK .... Power Up Wires are not damaged. CHECK .... On/Off switch has been pressed ‘ON’. CHECK .... -
Page 12: Specification
Specifications Specifications Battery Charger 100-240 VAC, 50-60Hz, 0.2A@115VAC Run time 8 hours at full charge Charging Time 4 Hours (Approximate) Power Consumption 2 Watts Operating Limits Storage Limits 10˚ to 25˚ C 0˚ to +50˚ C Temperature (50˚ to 77˚F) (32˚ to 122˚F) Relative 30% to 75% 0% to 100% Humidity (Non-Condensing) -
Page 13: Package Contents
Package Contents Package Contents: Foam padded carrying case (1 ea) LED headlight assembly (1 ea) Charging power supply (1 ea) Adjustment tool (1 ea) -
Page 14: Warranty
Seiler Instruments’s obligations under this warranty are limited to the repair, replacement, or reimbursement of the product only, and, in no event, is Seiler Instruments liable for any consequential or special damages, or costs related to the transportation, installation, or any other costs related... -
Page 15: Product Support
Product Support Product Support E-Mail: tleise@seilerinst.com; micro@seilerinst.com Phone 800-489-2282 314-968-2282 314-968-6301 Mailing: 3433 Tree Court Industrial Blvd. St. Louis, MO 63122 Web: www.seilerinst.com... - Page 16 3433 Tree Court Industrial Blvd. St. Louis, MO 63122 Phone: 314-968-2282 Fax:314-968-6301 1-800-489-2282 (toll-free)
