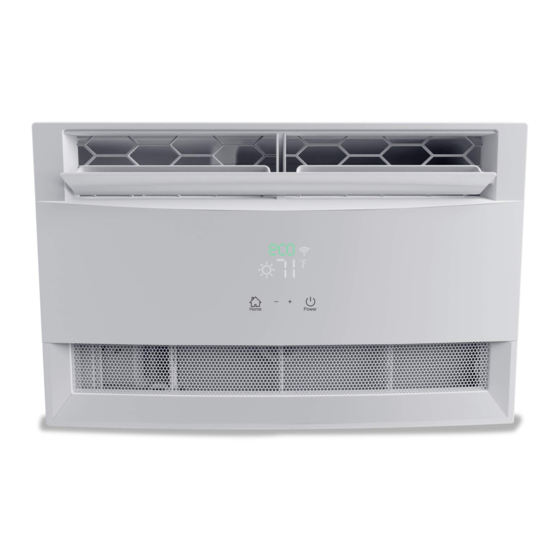

- Page 1 • F R E C!>" • LifeJustGotCOOLER USER MANUAL FHCW0 6 1 ABE • • FHCW0 8 1 ABE FHCW101 ABE • FHCW1 2 1ABE • • • www.FreoHome.com Questions? We're here to help! Contact us: 1-888-894-2755 or Comfort@FreoHome.com...
-
Page 2: Table Of Contents
If, for an reason, you are not completely satisfied, have a general question, or need further guidance on installation, please reach out to the Freo customer service team at 888-894-2755 or Comfort@FreoHome.com. We’re here to... -
Page 3: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS READ THIS MANUAL Inside you will nd many helpful hints on how to use and maintain your air conditioner properly. Just a little preventive care on your part can save you a great deal of time and money over the life of your air conditioner. - Page 4 CAUTION Do not attempt to disassemble this unit. Repairs or maintenance should be handled by an authorized service technician only! Do not attempt to repair or replace the power cord. Repairs or maintenance should be handled by an authorized service technicial only! If you are unsure how to install this unit properly, please contact a licensed installer in your area.
- Page 5 Caution: Risk of fire/ flammable materials (Required for R32 units only) WARNING： (for using R32 refrigerant only) -Flammable refrigerant - R32 is used in air conditioner. Please follow the instruction carefully to avoid any hazard. -Do not use means to accelerate the defrosting process or to clean, other than those recommended by the manufacturer.
-
Page 6: Installation Instructions
INSTALLATION INSTRUCTIONS TOOLS YOU WILL NEED BEFORE YOU BEGIN Read these instructions completely and Screwdriver carefully. Note to Installer- Be sure to leave these Level instructions with the Consumer. Note to Consumer- Keep these instructions Screwdriver for futrue reference. Completion time- Approximately 1 hour. Pencil We recommend that two people install this product. - Page 7 PREPARE AIR CONDITIONER A: Remove the air conditioner from the carton and place on a at surface. B: Remove top rail, insulation foam hardware and weather stripping from the packaging’ material. DO NOT DISCARD WITH STYROFOAM Fig.1 PACKAGING MATERIALS. B. Slide the free endsof the accordion panel directly C: Align the holes on the top rail with those in into the holding slot on the side of the air the tpo of the unit, as shown in Fig.
- Page 8 SECURE THE ACCORDION PANELS A.WIth the help of another person, carefully place the unit into the window so that the bottom of the air conditioner frame is against Fig.7A Fig.7B the window sill (Fig.5A for wood frame windows and Fig.5B for vinyl windows). Carefully close the INSTALL LOCKING SCREWS window into the top rail on the unit.
- Page 9 INSTALL WEATHER STRIPPING In order to minimize air leaks between the room air conditoner and the window opening, trim the weather stripping to the proper length, peel o the protective backing and plug any gaps if needed (Fig .14). Fig.11 Page 9 ...
-
Page 10: Normal Sounds
INSTALLATION WITH STORM WINDOW NORMAL OPERATING SOUNDS If installation of your air conditioner is blocked 1. Sound of Rushing AIr by a storm window, measure the amount of The sound of rushing air might be heard height necessary for the air conditioner to be from the front air exhaust, especially as raised to clear the obstruction. -
Page 11: Air Conditioner Features
AIR CONDITIONER FEATURES ELECTRONIC CONTROL OPERATING REMOTE LED SCREEN INDICATORS INSTRUCTIONS FAN SPEED display Before you begin, thoroughly familiarize yourself Displays selected FAN SPEED: with the control panel as shown below and all its HIGH, MED, functions. NOTE: Some functions of this air conditioner This display is blank when set to AUTO speed. - Page 12 If the air conditioner turns o unexpectedly due FUNCTIONALITY AND FEATURES to loss of power, it will restart automatically with the previously set functions when power is Press POWER button on unit or remote restored. control to turn unit on or o . The unit will start automatically in Cool mode with Energy If frost builds up on the evaporator coils, the unit Saver functionality active.
- Page 13 Function Buttons Before you begin using your new air conditioner, make sure to familiarize yourself with its remote control. The following is a brief introduction to the remote control itself. For instructions on how to operate your air conditioner, refer to the How to Use Basic Functions section of this manual. SHORT CUT ON/OFF Sets and activates your...
- Page 14 Handling The Remote Control TIPS FOR USING REMOTE CONTROL The remote control must be used within 8 NOT SURE WHAT A FUNCTION DOES? feet of the unit. Refer to the How to Use Basic Functions and How to Use Advanced Functions sections The unit will beep when remote signal is of this manual for a detailed description of received.
- Page 15 Setting the TIMER function Your air conditioning unit has two timer-related functions: TIMER ON- sets the amount of timer after TIMER ON TIMER ON which the unit will automatically turn on. TIMER OFF- sets the amount of time after which the unit will automatically turn off. TIMER ON function The TIMER ON function allows you to set a period of time after which the unit will...
- Page 16 TIMER OFF function The TIMER OFF function allows you to NOTE: When setting the TIMER ON or set a period of time after which the unit TIMER OFF functions, up to 10 hours, will automatically turn off, such as when the time will increase in 30 minute you wake up.
-
Page 17: Care And Cleaning
CARE AND CLEANING Cabinet Cleaning CAUTION Clean your air conditioner occasionally to Always unplug the air conditioner before keep it looking new. Be sure to unplug cleaning to prevent shock or re hazard. The the unit before cleaning to prevent cabinet and front can be dusted with an oil-free chock or re hazards. -
Page 18: Troubleshooting Tips
TROUBLESHOOTING TIPS Before calling for service, review this list. It may save your time and expense. This list includes common occurrences that are not the result of defective workman-ship or materials in this appliance. Problem Solution Air conditioner Wall plug disconnected. Push plug rmly into wall outlet. does not start House fuse blown or circuit breaker tripped. - Page 19 Problem Solution Water dripping Improper installation. Tilt air conditioner slightly to the outside to allow water drainage. INSIDE when unit Refer to installation instructions - check with installer. is cooling. Water dripping Unit removing large quantity of moisture from humid room. This is normal during OUTSIDE when excessively humid days.
- Page 20 The design and speci cations are subject to change without prior notice for product improvement. Consult with the sales agency or manufacturer for details. Any updates to the manual will be uploaded to: www.FreoHome.com Please check for the latest version. 2 0200316...
