RISEN ENERGY CO., LTD. (DOCUMENT)
R
ISEN ENERGY CO., LTD. (DOCUMENT)

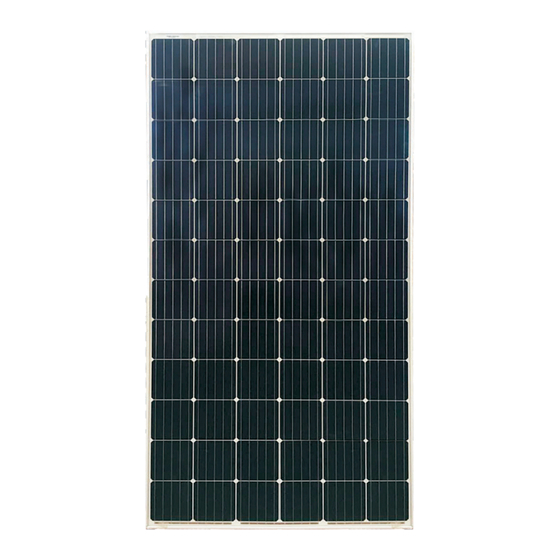

INSTALLATION AND MAINTENANCE
MANUAL
OF BIFACIAL MODULE PRODUCTS
DOCUMENT NO.
COMPILER
RS/03-MTP-016-2019
Pei shichao
EDITION
REVIEWER
A/3[2019]
Zhang shengcheng
DISTRIBUTION NO.
APPROVER
Liu yafeng
STATUS
STAMP
THIS DOCUMENT HAS A TOTAL OF *35* PAGES INCLUDING THE FRONT COVER
ISSUE DATE 2019-05-30
.
IMPLEMENTATION DATE 2019-05-30
2020 .【10G】
