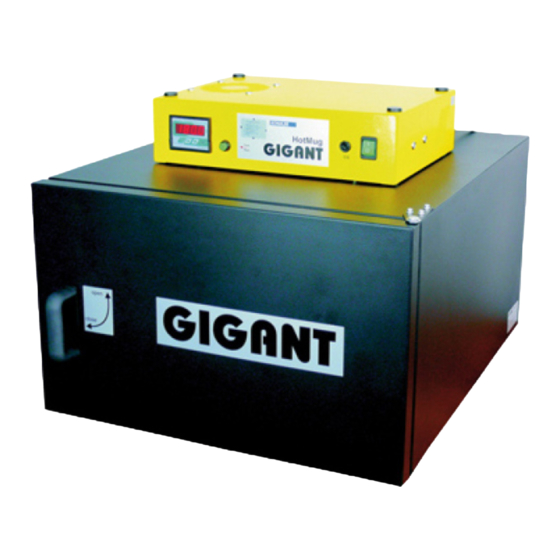

Schulze HotMug GIGANT Instruction Manual
  1. Manuals
  2. Brands
  3. Schulze Manuals
  4. Oven
  5. HotMug GIGANT
  6. Instruction manual

Schulze HotMug GIGANT Instruction Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Instruction manual
Version 11.01
HotMug
GIGANT
Version 11.01
1/11

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HotMug GIGANT and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Schulze HotMug GIGANT

  • Page 1 Instruction manual Version 11.01 HotMug GIGANT Version 11.01 1/11...

  • Page 2: Table Of Contents

    Introduction Content 1. Introduction 1.1 Content 1.2 Construction of the oven 1.3 Technical data 1.4 Safety arrangements of the oven 1.5 Safety precautions at the workplace 2. Preparation activities Remarks regarding transportation Installation of the oven Power supply Installation of the oven 3.

  • Page 3: Construction Of The Oven

    1.2 Construction of the oven 1. Grip 5. Ventilator 2. Oven 6. Top with the electronics 3. Electronics 7. Main fuse 4. Time start-button 8. Main switch Technical data Dimensions of the oven ... 50 x 59 x 72 cm Weight .

  • Page 4: Safety Precautions At The Workplace

    2.3 Power supply The HotMug GIGANT has to be connected to a voltage of 230VAC/ 50Hz. The oven is equipped with a plug. Make sure that the power outlet is in the right condition and that the grounding is connected to the power outlet.

  • Page 5: Installation Of The Oven

    3. Working with the oven 3.1 Programming of electronic devices After switching on the press, the current temperature is indicated on the display and the press heats up. To change the settings, you must: 1. The programming mode shows up when you press Button 1 for about 5 seconds, until the LED1 blinks up.

  • Page 6: Printing On The Caps

    3.3 Printing on the caps Print your photo on the sublimation paper. Then attach the paper with the motif with a heat resistant tape on the cup. Insert the HotMug - SIMPLE on the cup. HotMug-SIMPLE 1. The Hot Mug - SIMPLE on the cups attach - Photo 1 2.

  • Page 7: Maintenance

    4. Maintenance 4.1 Replacing the main fuse If the oven does not work after switching on, check the main fuse of the oven. The main fuse 6A is placed in the upper part of the press (photo 1). To exchange the fuse, switch off the heat press first and pull the plug. There are additional fuses in the manual. Then remove the fuse bracket (photo 1 and 2).

  • Page 8: Replacing The Temperature Sensor

    4.3 Replacing the temperature sensor In the oven is a temperature sensor. Located in the upper part of the oven. The replacement must be done by an authorized person. To replace the temperature sensor, turn off the oven and pull the plug. The oven must be cold. Screw the cap off, as in chapter 4.2 (Photo 1 –...

  • Page 9: Troubleshooting

    4.4 Troubleshooting Problem Cause Debugging main fuse 10 A is defect Exchange main fuse 10 A Green switch blink, but: If main fuse is okay, than check Exchange electronic devices display doesn´t glow oven doesn´t heat thermal fuse on heatplate is defect Exchange thermal fuse oven doesn´t heat up to adjusted temperature even if the red diode glows...

  • Page 10: Connection Diagram

    4.5 Connecting diagram Version 11.01 10/11...

  • Page 11: Testing Report

    EN 292-1 EN 292-2 safety of machines EN 60204-1 electrical equipment of machines Berlin , .._____________________________ Peter Meidinger President All SCHULZE heat presses are exempt from the waste disposal law under reg. no. DE 231060054. Version 11.01 11/11...
