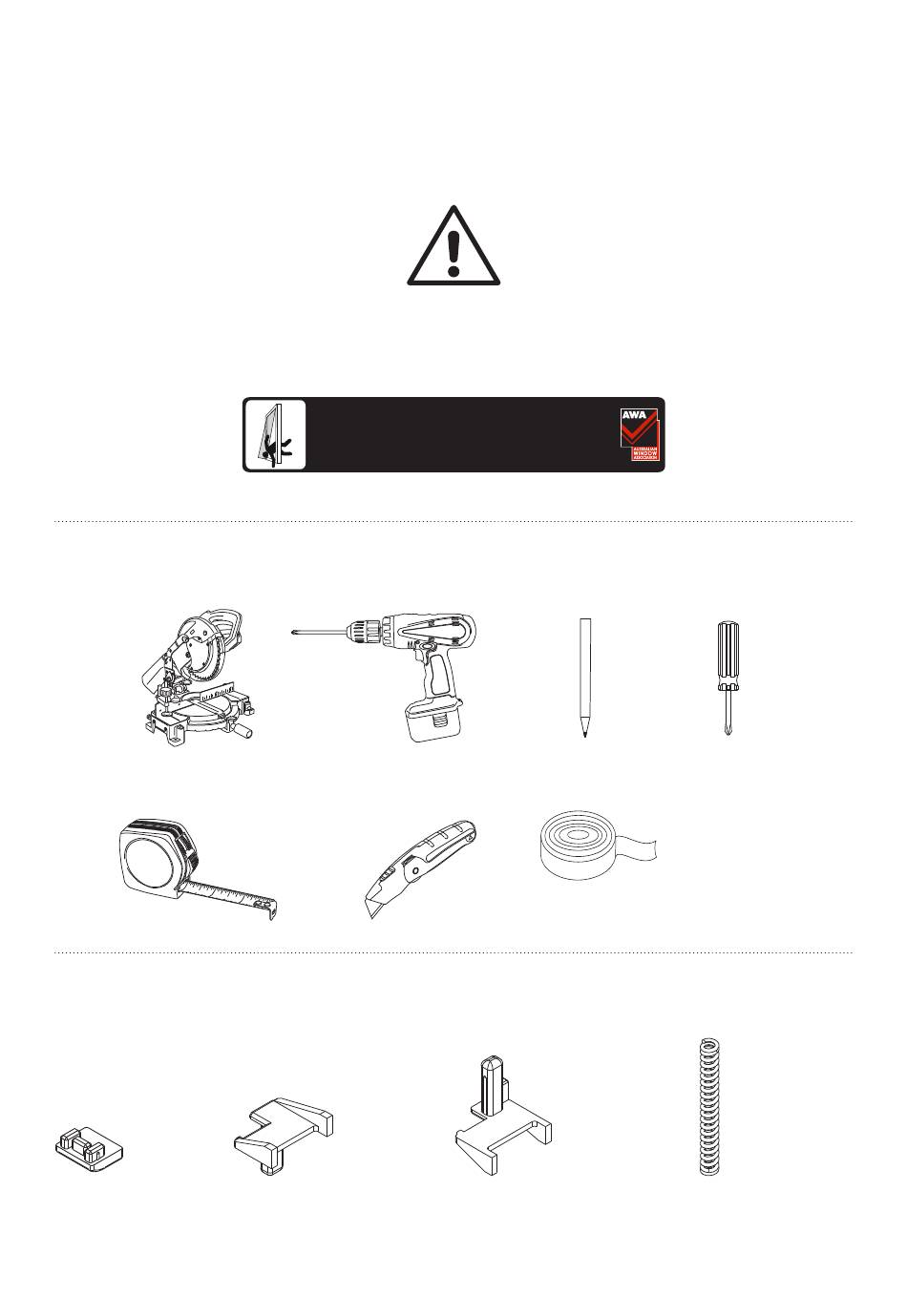

Screen Kit Installation Instructions
Recommended Tools
NOTE: DO NOT USE CIRCULAR SAW
LAMINATE NON-FERROUS METAL BLADE
Screen Kit Components
x2
WS-MS-4
MESH SUPPORT
Retractable Pleated
Read Installation Instructions carefully before
proceeding Ensure that Installation Instructions
.
and Hex Drive
WARNING
Screen will not stop children from falling out window
Keep children away from open window
A safety initiative from the Australian Window Association
All dimensions are in inches (mm)
x1
WS-PK-T
TOP PACKING
BLOCK
Insect
remain with
homeowner.
MASKING TAPE OR
BLUE PAINTERS TAPE
x1
WS-PK-B
BOTTOM
PACKING
BLOCK
Screen
®
x2
WS-CS
COMPRESSION
SPRING
INSTSCREEN | Rev
3
1
C
|
Feb
20
20
|
Advertisement
Related Manuals for BRIO 612
Summary of Contents for BRIO 612
- Page 1 Screen Kit Installation Instructions Retractable Pleated Insect Screen Read Installation Instructions carefully before proceeding Ensure that Installation Instructions and Hex Drive remain with homeowner. WARNING ® Screen will not stop children from falling out window Keep children away from open window A safety initiative from the Australian Window Association All dimensions are in inches (mm) Recommended Tools...
- Page 2 Screen Kit Components WS-GR-2 WS-AB-A WS-FB-4 WS-CEIN HANDLE GRIP ADJUSTMENT FRICTION CASSETTE EXTRUSION BLOCK ASSEMBLY BLOCK RETAINER CLIP Components used for a double screen only WS-AK TEKS-62020CX WS-MP SC3GX7S WS-MST ALLEN KEY 20X6-20 CSK MAGNET 3G X 7 CSK MAGNETIC TEK SCREW PLATE SCREW SS...
- Page 3 1. Cutting screen assembly INTEGRATED SCREEN AFTERMARKET SCREEN DO NOT REMOVE WRAPPING ⁄ ⁄ 30.4 30.4 BEFORE CUTTING Ensure the screen assembly is tightly bound as supplied HEAD HEAD BEFORE CUTTING ensure both “cassette assemblies” and “cords” are located away REBATE from the bottom cut area DO NOT...
-
Page 4: Compression Spring
3. Inserting the Adjustment Block WS-AB-A ADJUSTMENT BLOCK ASSEMBLY INSERT WS-CS COMPRESSION SPRING WS-CS WS-AB-A COMPRESSION ADJUSTMENT SPRING BLOCK ASSEMBLY 4. Inserting the Friction Block 5. Inserting the Mesh Retainer WS-MS-4 MESH SUPPORT WS-MS-4 MESH SUPPORT INSTSCREEN | Rev C | Feb 2020... - Page 5 6. Installing Screen Carefully remove wrapping. JAMB MOUNTING Ensure that the screen assembly EXTRUSION is tightly compressed SNAP MASKING TAPE OR BLUE PAINTERS TAPE SCREEN ASSEMBLY Masking tape or CUT END blue painters tape (BOTTOM) CASSETTE ASSEMBLIES CHANNEL JAMB MOUNTING TRACK (RST or RSTT) EXTRUSION Align all cords...
- Page 6 7. Fitting Bottom Channel Cassette CASSETTE iii. ASSEMBLY TEKS-62020CX 20X6-20 CSK Ensure cords TEK SCREW are on top of the cassette ROTATE CORDS PIVOT CHANNEL CHANNEL CHANNEL 8. Fitting Top Track Cassette Fit WS-CEIN - cassette retainer before TRACK (RST or RSTT) fitting cassette into the top track (RST or RSTT) <...
- Page 7 9. Cord Tensioning Ensure that the screen assembly is tightly compressed. Slide cord anchors to take up the slack and stretch a further ⁄ ( 15 . Remove tape and operate screen to confirm smooth operation (screen will not extend fully until handle bar cover is installed). JAMB TRACK (RST or RSTT) MOUNTING...
- Page 8 11. Fitting the Handlebar Cover Operate the screen before installing the handlebar cover to confirm smooth operation. WS-PK-T Once fitted, check the operation, and it should be as smooth as Step 9 PACKING BLOCK WS-HDCEXP HANDLEBAR COVER Before fitting Handlebar Cover, ensure the WS-HD EX cords are not twisted or...
- Page 9 13. Screen Adjustment ADJUST A TOUCH ADJUST A TOUCH ADJUST A TOUCH ADJUST A TOUCH AT HIGHEST POINT AT HIGHEST POINT AT HIGHEST POINT AT HIGHEST POINT i i i i i i To be adjusted on both To be adjusted on both sides of the handlebar sides of the handlebar ADJUST A TOUCH...
- Page 10 14. Commissioning 1. Ensure Channel (RSC) is free from dirt and debris. Ensure screen slides freely from side to side. Ensure Screen meets at the Jamb or meeting Screen (double or corner applications) without any gaps. (If not Refer to Step 1 Handle Adjustment) Once Screen is operating correctly fit the remaining components (as shown below).
- Page 11 17. Fitting Cassettes for Double Screens meeting point* CASSETTE iii. ASSEMBLY TRACK (RST or RSTT) ROTATE PIVOT JAMB CHANNEL MOUNTING EXTRUSION CHANNEL CHANNEL CHANNEL CASSETTE ANCHOR BLOCKS CASSETTE ASSEMBLY ASSEMBLY Refer to page 6 “Fitting Top Track Cassette” SLIDE SLIDE MEETING POINT 18.
- Page 12 19. Corner Screen Application Cassette Fitting Handlebar and Seal Fitting Open Joint Frame HANDLEBAR ANCHOR WS-HD EX BLOCKS HANDLEBAR COVER PB48850 BRUSH SEAL WOOD FASCIA W1 and W2 Screen Replacement 1. Remove Channel Covers TRACK (RST or RSTT) WS-COVEXP JAMB PIVOT CASSETTE MOUNTING...
- Page 13 Replace with new SCREEN KIT and follow instructions supplied Screen Care and Maintenance The Brio 612 Retractable Pleated Insect Screen is designed to fit a variety of opening sizes and provides an effective barrier against insects entering your home. Once installed, Brio recommends the...
