Mood Media ProFusion iO User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

®
ProFusion
®
iO
User Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ProFusion iO and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Mood Media ProFusion iO

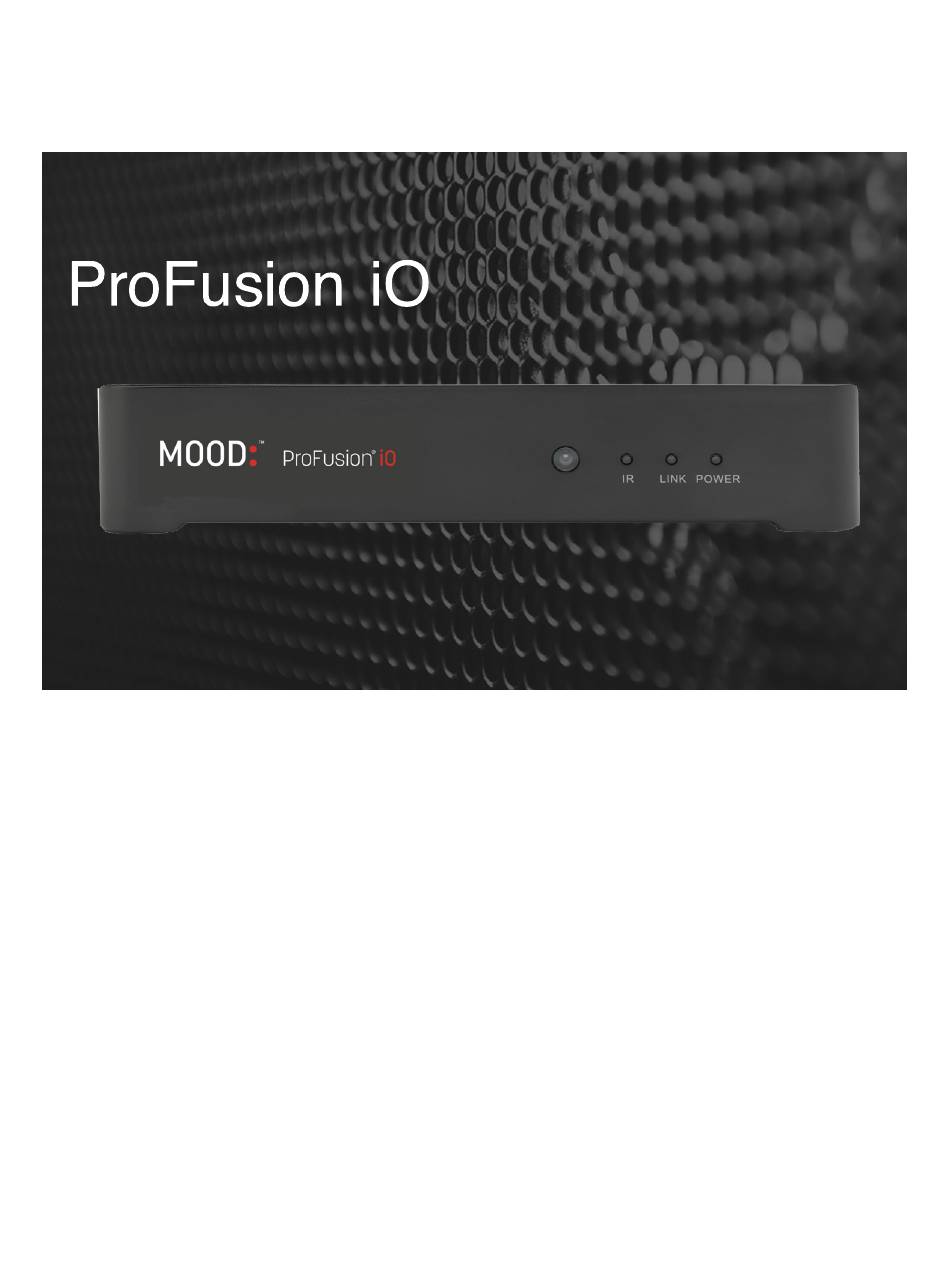

  • Page 1 ® ProFusion ® User Guide...

  • Page 2: Table Of Contents

    Introduction ..............................7 Checking the package contents ........................ 7 Installation and Setup ..........................7 Controls and Functions ..........................9 ProFusion iO On/Off via software ......................10 Managing Audio Zones ..........................11 Administration ............................13 Appendix A: Glossary ..........................16 Appendix B: Troubleshooting ......................... 17 Appendix C: Specifications ........................
  • Page 3 This product was tested and found to be fully compliant with; FCC Part 15 Subpart B/Class A; cTUVus TUV CB Scheme; CE Class A and is RoHS Compliant and WEEE marked. Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Page 3 ProFusion iO User Guide...
  • Page 4 N‘utilisez pas dans des environnements en proie à une chaleur excessive, l’humidité, aux champs magnétiques ou à la poussière. • Place the ProFusion iO only on a stable surface of sufficient size and strength where it will not be exposed to excessive vibration.
  • Page 5 © Mood Media 2019. All rights reserved. ProFusion is a registered trademark of Mood Media All other trademarks are the property of their respective owners Created on 17/06/2019 14:14:00...

  • Page 6: Features

    As one of our leading on-site systems, the ProFusion iO digital audio delivery system provides extensive commercial-free music, engaging message marketing, flexible scheduling, and the ability to play different types of music in various areas of your business. ProFusion iO provides total control over what your customers hear.

  • Page 7: Introduction

    NOTE: Do not plug your ProFusion iO into a switched outlet such as a power strip or other outlets that may be inadvertently turned off. This can lead to improper shutdowns which will likely shorten the life of the equipment.
  • Page 8 Note: If your ProFusion iO is configured for a single mono zone, use only the RCA jack labeled Zone 1/L to feed your amplification equipment. The RCA jack labeled Zone 2/R is active only when the ProFusion iO is configured to provide a single stereo zone or two mono zones.

  • Page 9: Controls And Functions

    Power LED (light): When power to the ProFusion iO is turned on by the power button on the back panel, the far right light on the control panel labeled “Power” will be lit.

  • Page 10: Profusion Io On/Off Via Software

    1 Obtain and record the player’s IP address. Using a paperclip, press the Reset button on the rear panel of the player for one second. Your ProFusion iO will playback its IP address. Write this down. To hear it again, repeat this step. NOTE: You may hear a second IP address identified as the Wireless IP address.

  • Page 11: Managing Audio Zones

    NOTE: Some control features may be disabled by the device account administrator Changing Programs Your ProFusion iO device will play the Program (Mood Zones) that is scheduled to play, changing to the new Program when the predefined schedule calls for a change. However, you can manually change Program playing by selecting a new program in the dropdown.
  • Page 12 Messages If your ProFusion iO is configured to utilize Messaging, the playback of messages will be scheduled to play at specific times and days. Visit the myMood control site to adjust messaging settings, including scheduling. If necessary, the Messages Tab will allow you to suspend a message.

  • Page 13: Administration

    Mac Address. Device ID The Device ID is a unique number specific to your ProFusion iO. It ensures that custom configurations and settings are applied only to your specific ProFusion iO. Note: When calling Mood for assistance, please confirm your Device ID prior to calling.
  • Page 14 Note: If new content is available for download, your ProFusion iO may be updating for a long period of time. It is advisable to check with your network administrator before selecting this menu option.
  • Page 15 Reset button On the back of the Profusion iO, there is a small pin size reset button. Press and hold the reset button for approximately five seconds to restore the user login passwords to their default value. Press and hold the reset button for approximately fifteen seconds to reset the user passwords and network settings to the default (DHCP).

  • Page 16: Appendix A: Glossary

    A unique musical experience referring to a particular type of music such as Jazz, Classic Rock, etc. Zone ProFusion iO has the capability to support up to two independent audio outputs that allow for unique music types for different areas of a business.

  • Page 17: Appendix B: Troubleshooting

    Verify your network firewall is configured to allow FTP traffic from your update is attempted ProFusion iO to its designated server. Web interface displays FTP Verify the Ethernet cable is properly connected to your ProFusion iO and Test Failed after Test your network equipment.

  • Page 18: Appendix C: Specifications

    (range 11.4Vdc - 12.6Vdc) Output Current: 1A Output Watts: 12W Output Ripple: <= 120mVpp @ 1A Dimensions Width: 174 mm (6.85 inches) Depth: 129 mm (5.0 inches) Height: 38 mm (1.5 inches) Weight: 0.45kg (1.0 lbs) Page 18 ProFusion iO User Guide...
  • Page 19 The Netherlands - +31 (0) 36 7470700 Germany - +49 40 69 44 06-0 France - +33 130 79 50 00 For all other countries, please contact your local Customer Services Team by visiting: www.moodmedia.com/office-locations Page 19 ProFusion iO User Guide...
