SCIFIT PRO230 Replacement Manual

Display mounting bracket
Hide thumbs
1
2

Advertisement

Table of Contents

PRO230 Display Mounting Bracket Replacement

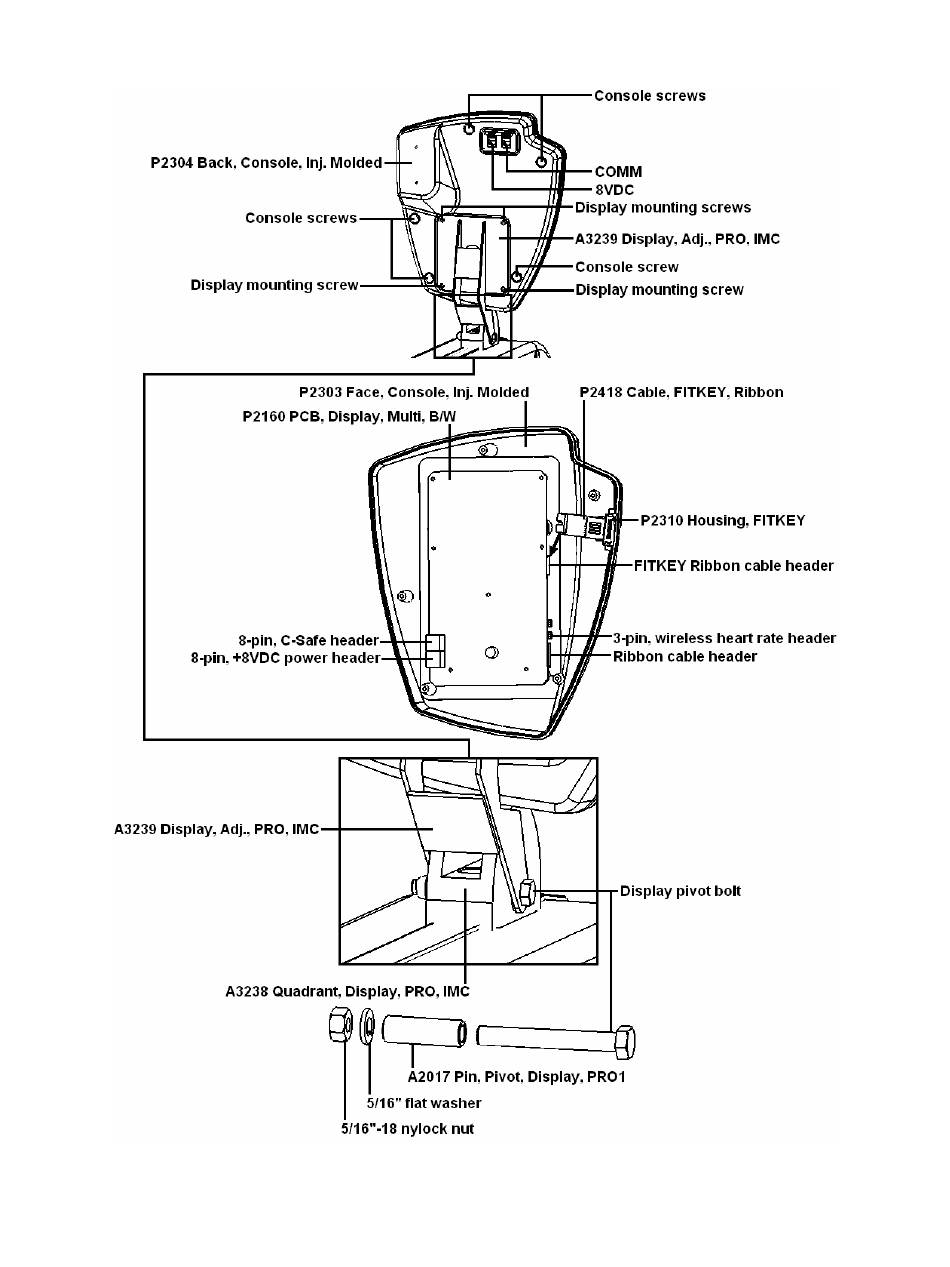

1. Remove the five (5) console screws in the console back (P2304), using a
Philips screwdriver.
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PRO230 and is the answer not in the manual?

Questions and answers

Summary of Contents for SCIFIT PRO230

  • Page 1 PRO230 Display Mounting Bracket Replacement 1. Remove the five (5) console screws in the console back (P2304), using a Philips screwdriver.
  • Page 2 2. Disconnect all cables connected to the display PCB (P2160) and remove console face (P2303) from the unit. Make sure the cables do not fall into the neck of the unit. 3. Using a Philips screwdriver, remove the four (4) display mounting screws that affix the display mounting bracket (A3239) to the console back.
