Summary of Contents for Simniam inskam130

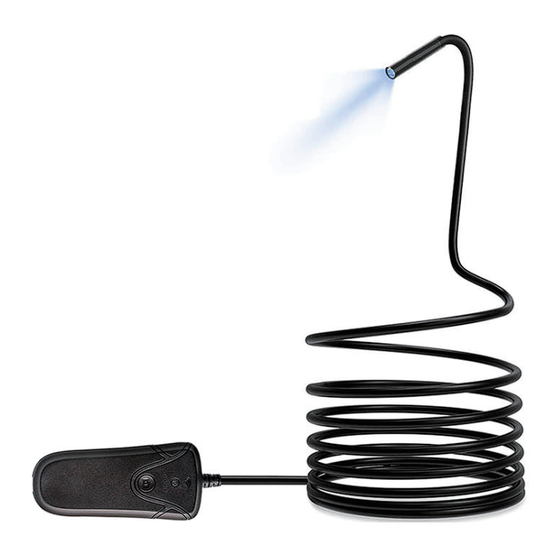

- Page 1 Wi-Fi Endoscope User Manual Model: inskam130 Thank you for purchasing our products. This manual addresses the safety guidelines, warranty and operating instructions. Please review this manual thoroughly before operating your device.
-
Page 2: Safety And Warranty
SAFETY AND WARRANTY Important Safety Instructions • Not for medical use! • Prevent object and liquid entry, which may cause damages to the product. • The unit is not shock-resistant. Avoid dropping the unit from a height. • The lens and the tube are waterproof when the unit is fully assembled, but the Wi-Fi box is NOT waterproof. -
Page 3: Package Contents

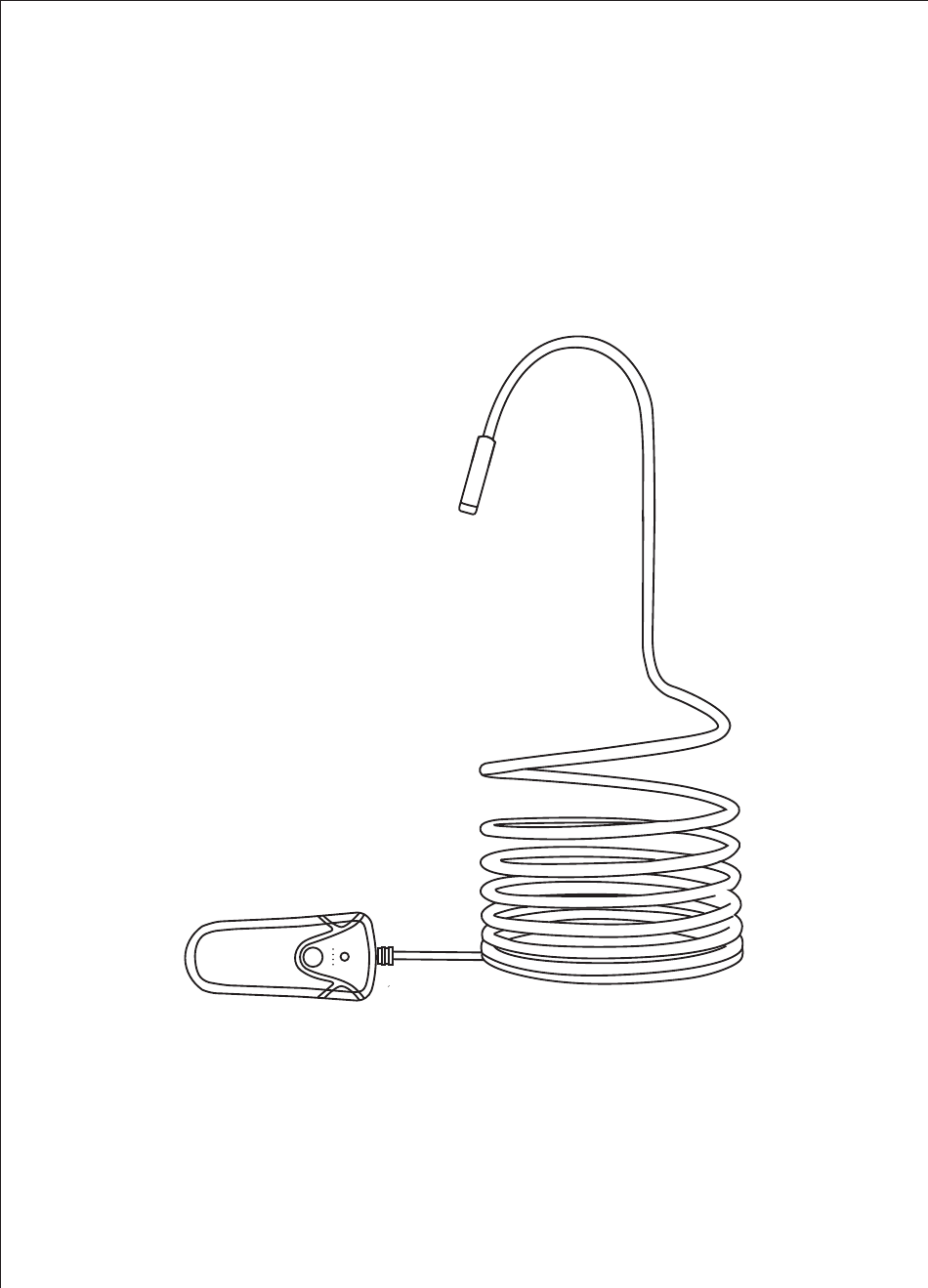

Package Contents Wi-Fi Endoscope User Manual Model: inskam130 Thank you for purchasing our products. This manual addresses the safety guidelines, warranty and operating instructions. Please review this manual thoroughly before operating your device. 1 × User manual 2 × Velcro 1 ×... - Page 4 At a Glance Reset button Wi-Fi indicator LED brightness controller Power switch Power indicator Shoot button Lens / LED lights Micro USB charging port Wi-Fi box - 3 -...
- Page 5 Charging the Endoscope 1. Plug the small end of the USB cable into the Micro USB charging port of the Wi-Fi box. 2. Plug the other end into a USB wall charger or computer (DC 5V 1A) that is powered on. During charging, the power indicator(s) flash(es) blue.
- Page 6 Notes: • If you want to shoot photos/videos underwater, it is recommended to install the waterproof cover. • When using the stainless steel telescopic rod, please clamp the line clamp on the cable instead of the metal tube near the camera lens.
- Page 7 Notes: When the endoscope is successfully connected to your phone, the Wi-Fi indicator flashes green, and you can see the camera’s view through the app. 3. Allow inskam to access to the album if asked. 4.Set the camera resolution, the language of the app, and more in the app according to your needs.
-
Page 8: Specifications
View Photos/Videos • Tap on the shooting interface of the app to view photos and videos. Specifications Network standard IEEE 802.11 b/g/n Antenna Built-in IPEX antenna Operating frequency 2.4 GHz Data rate Up to 300 Mbps Image sensor CMOS System supported iOS 8.0/Android 4.2 and later Operating temperature 0℃(32℉) to 60℃(140℉) -
Page 9: Troubleshooting
Trouble Shooting No image or defects in the image. • Check the Wi-Fi settings of your phone, and make sure the endoscope is successfully connected to your phone (the Wi-Fi indicator flashes green). • Disconnect and reconnect the endoscope to your phone. •...
