Operators Use and Care Manual

Ver. 3/13

Table of Contents

Need help?

Do you have a question about the Peregrine 1800 S and is the answer not in the manual?

Questions and answers

Summary of Contents for Falcon Peregrine 1800 S

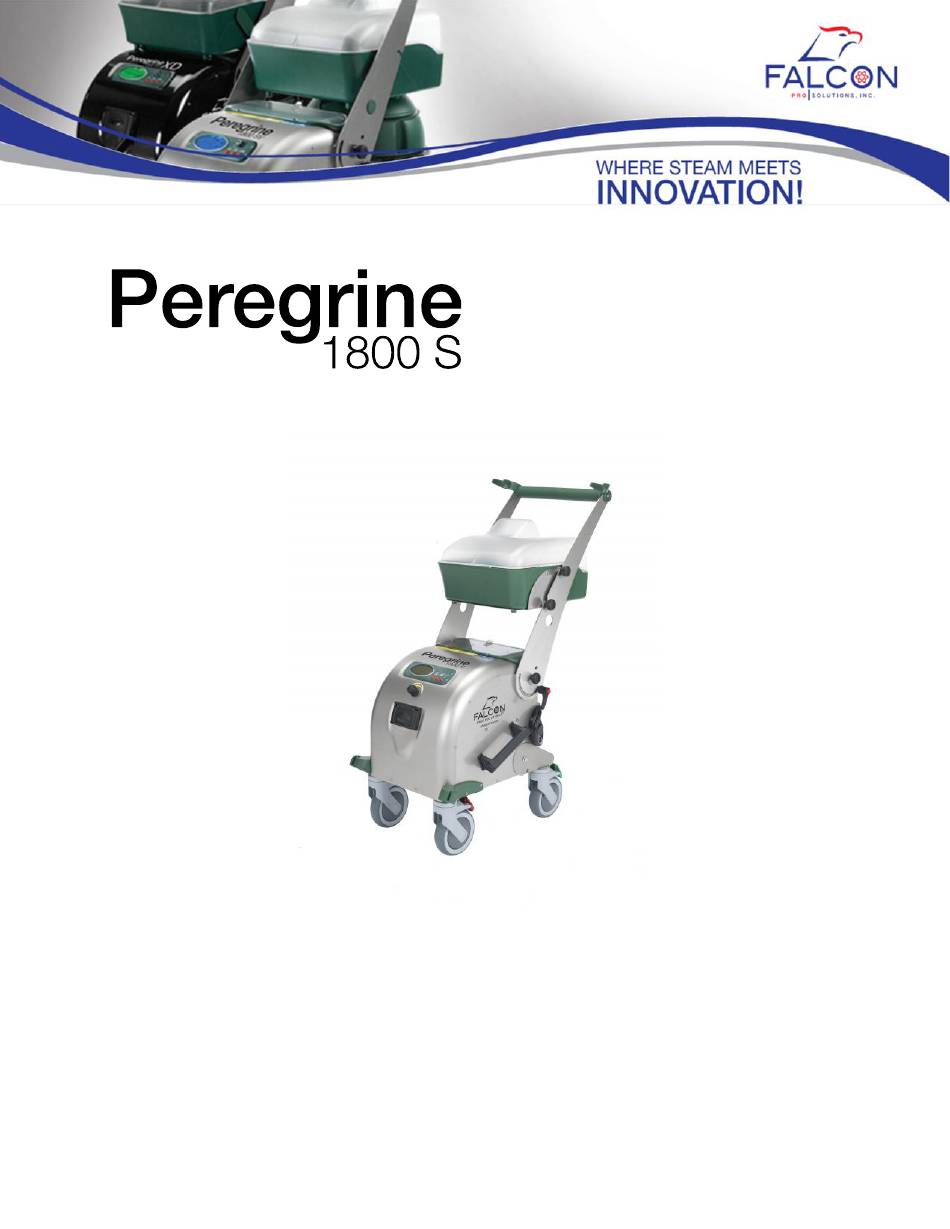

Page 1 Operators Use and Care Manual Ver. 3/13...
Page 2: Table Of Contents
Table of Contents Know your machine Page 3 Control Panel Legend and Functions Page 4 Included accessories and tools Page 5 Safety Instructions Page 6 Assembly Instructions Page 7 Quick Start Guide Page 8 Specifications Page 10 General Maintenance Instructions Page 11 Operating Instructions Page 12...
Page 3: Know Your Machine
Know Your Machine Hand knobs and locking levers for operators handle Control Panel (see next page for panel functions) Steam/Vacuum port Detergent dilution adjustment knob Tool Caddy Water/Detergent reservoir and Boiler cover Ver. 3/13...
Page 4: Control Panel Legend And Functions
Operator Control Panel legend 1. Boiler On/Off Button (red, left) 2. Detergent On/Off Button (red, right) 3. Maintenance Required Icon 4. Water Reservoir Empty Icon (audible alarm sounds) 5. Tank Pressure Indicator 6. Tank Temperature Indicator 7. Boiler Heating Element Icon (blinks when heating) 8.
Page 5: Included Accessories And Tools
Steam Only 1.Steam Hose 2 Two piece extension Wand 3 Floor tool with brush 4 Glider plate for floor tool with brush 5 Detail Cleaning Wand, 3.5" 6 Detail Cleaning Wand, 10.5" 7 Triangular fitted brush 8 Round fitted brush 9 Stainless Steel brush for detail wand, small 10 Brass brush for detail wand, small 11 Nylon brush for detail wand, small...
Page 6: Safety Instructions
Important safety instructions This machine is for commercial use, for example restaurants, educational facilities, factories, hotels, offices, etc. This unit should only be used by individuals who are trained in its operation and who have thoroughly read and understand the instruction manual. When using any electrical appliance, always follow basic safety precautions to reduce the risk of fire, electric shock, and/or injury to persons, including the following: 1.
Page 7: Assembly Instructions
Grounding Instructions This steam generator must be grounded. This steamer is equipped with a cord having an equipment-grounding conductor and grounding plug. The plug must be inserted into an appropriate outlet that is properly installed and grounded in accordance with all local codes and ordinances. WARNING –...
Page 8: Quick Start Guide
Quick Start Guide To begin operating the steamer: 1. Open the water reservoir cap shown in figure 5. Fill the water tank with clean cold tap water. Do not use deionized water or the steamer will not create steam. Close the water tank by re-installing the cap.
Page 9 4. Plug the unit in and turn on the main power switch (fig. 9) 5. Turn on the boiler and wait until boiler icon quits blinking and the unit comes up to temperature (approximately 170°C/330°F) before beginning operations (fig.10) Boiler/Steam Icon Detergent On/Off Detergent Icon No Water Icon...
Page 10: Specifications
Peregrine 1800S Specifications - Dimensions (in) 16 x 21 x 33 in (W x L x H) - Weight 40 pounds - Voltage 120V 60Hz - Maximum power 1800W - Maximum boiler heating element power 1000 + 700W - AISI 304 stainless steel boiler - Steam pressure 87PSI - Steam temperature 316°F - Capacity of water tank .5 gal.
Page 11: General Maintenance Instructions
General Operator Maintenance → ALWAYS disconnect the power cord before performing any maintenance on the unit ← Daily Maintenance To clean the exterior of the steamer, use a damp cloth. Do not use solvents or cleaning agents; these may harm the plastic surfaces and labeling. Clean the exterior of the unit after each use. Check and clean the water and detergent filters at the end of every use (Fig 14).
Page 12: Operating Instructions
Operating Instructions Steamer & Tool Use Note: References to figures refers to pictures in the quick start guide unless otherwise noted Filling water and Detergent Tanks To fill the unit with water, open the cap and fill the water tank (fig. 5) with cold tap water. Use a funnel or other suitable device if necessary.
Page 13 Attachment of Steam Hose Insert the hose connector into the steamers vacuum-steam port as shown (fig. 8) by pressing the plug into the port until button clicks. Check that the connector is firmly positioned by gently pulling backward on it to ensure it is locked in place. Ensure that the hose is firmly connected to the machine! To disconnect the hose from the steamer, press the connector button “A”...
Page 14: Warranty
No detergent When there is no detergent solution in the detergent tank, the detergent icon (fig. 10)) on the display will begin to blink with an audible alarm. To refill the detergent solution tank, follow the “filling water and detergent tanks” instructions above. Cord Care After use, rewind the cord on the cord keepers that are located on the side of the machine.
Page 15: Trouble Shooting Guide
Trouble Shooting PROBLEM CAUSE SOLUTION The steamer does not start The power cord has not been Plug the power cord plug into correctly plugged into the the power supply outlet power supply outlet. correctly. After the boiler has been The water level in the tank is Fill the tank with water and turned on, the no water icon low.
Page 16 Falcon ProSolutions, Inc. 16026 University Oak San Antonio, Texas 78249 (210) 547-2741 Ver. 3/13...
