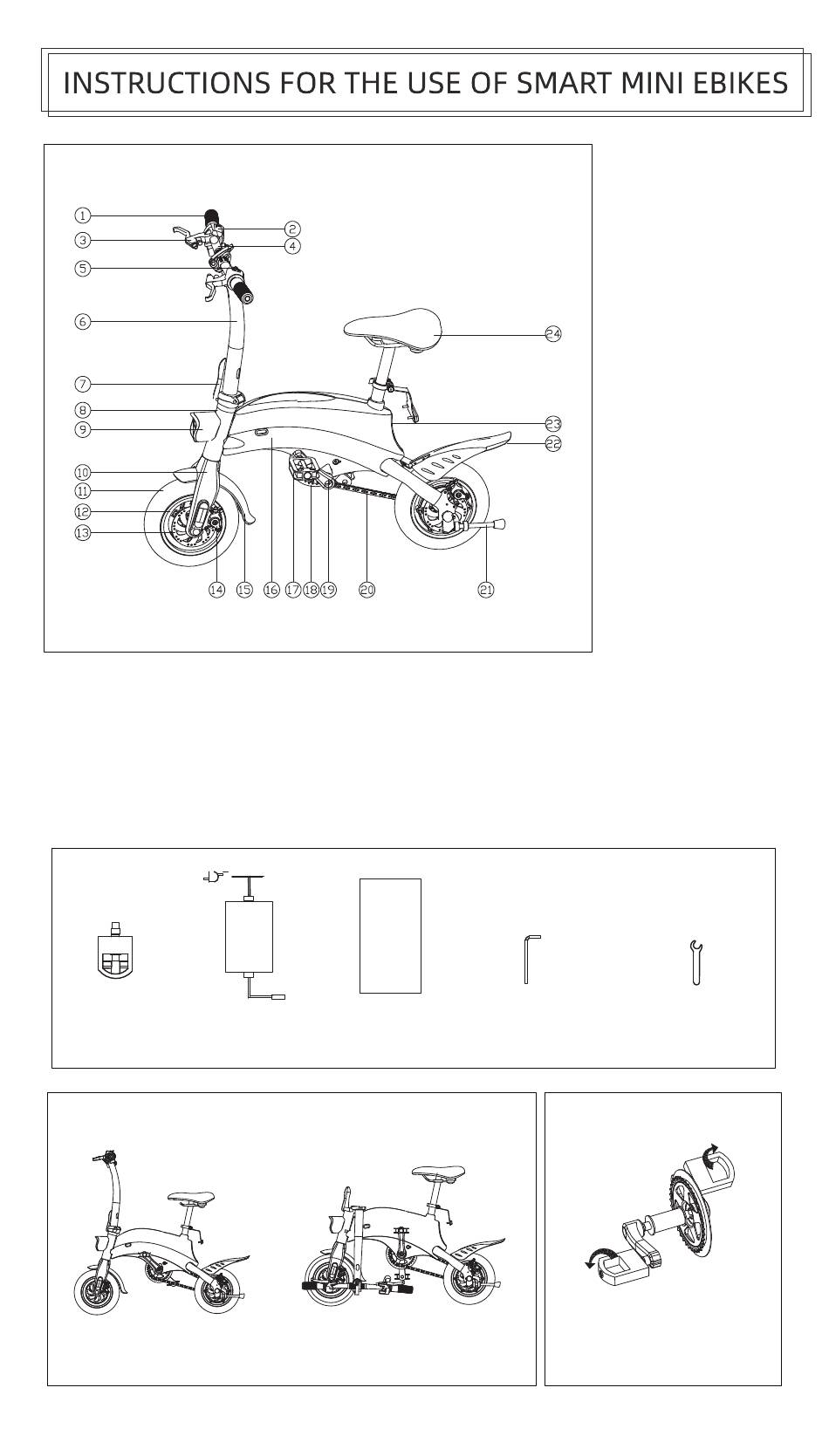

PARTS LIST
Pedal×2
Folding Picture：

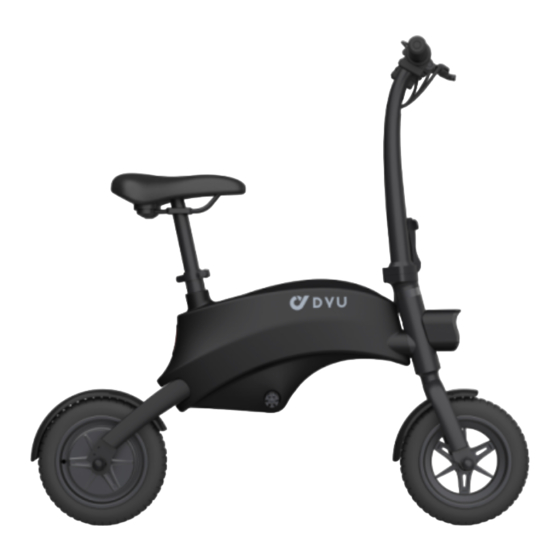

1.Before folding
Charger×1
Manual×1
2.After folding
1.Gear Shift
2.Dashboard
3.Brake handle
4.Handle bar
5.Light Switch
6.Vertical pole
7.Folding buckle
8.Pole Head(where the bike ID
code was engraved)
9.Front light
10.Front fork
11.Tire
12.Front hub
13.Disc brake plate
14.Disc brake device
15.Front fender
16.Battery case(unremovable)
17.Pedal
18.Chain Crank
19.Chain Wheel
20.Chain
21.Stand
22.Back fender
23.Back light
24.Seat Cushion
Allen wrench×2
Install the pedals：
Right foot pedal:
rotate clockwise to install
Left foot pedal:
rotate counterclockwise to install
Hex wrench×1
Advertisement
Table of Contents
Related Manuals for F-Wheel DYU S1
Summary of Contents for F-Wheel DYU S1
- Page 1 1.Gear Shift 2.Dashboard 3.Brake handle 4.Handle bar 5.Light Switch 6.Vertical pole 7.Folding buckle 8.Pole Head(where the bike ID code was engraved) 9.Front light 10.Front fork 11.Tire 12.Front hub 13.Disc brake plate 14.Disc brake device 15.Front fender 16.Battery case(unremovable) 17.Pedal 18.Chain Crank 19.Chain Wheel 20.Chain 21.Stand...
- Page 2 FUNCTION INTRODUCTION 1.Install the handlebar after unpacking, 7. Headlight: ON/OFF on the left side of the handlebar is a light switch. straighten and release the quick-release handle, adjust the horizontal handle to 8.Brakes and back light: The brakes the appropriate direction, then press the cannot be accelerated when the brakes are not fully rebound.
- Page 3 PRODUCT PARAMETERS Model DYU S1 Bike frame material Metal Folding size 960*220*680mm Unfolding size 960*490*915mm Product Packing size 1000*220*550mm Dimension Center distance of front 700mm and rear wheels Foot-off height 130mm Wheel size: 10inch 10inch Produce colors black/white/red Bike weight...
- Page 4 PRODUCT PARAMETERS Model DYU S1 Battery type Lithium battery 6Ah/10Ah Battery capacity DC36V Battery approved voltage DC42V Charging voltage AC220V Charger input voltage Charging time 4H/6H Accessories Motor type Brushless DC motor parameters Motor rated power 250W 460r/min Motor rated speed Motor rated voltage 31±1V...
- Page 5 CIRCUIT SCHEMATIC DC2.1 charging port 100VAC 100VAC Electric lock_36V Dashboard Hall1 36V battery pack Phase line A Brake Left brake Motor Brake Right brake Controller Phase line B Phase line C Light switch Electric lock_36V Hall2 Electric lock_36V Horn switch Front light 3W Phase line Anti-theft...
- Page 6 PRECAUTIONS Battery and charging: Charge at 0°~ 45°, discharge at -10°~ 45°, keep the battery dry The negative pole is reversed, and it is strictly forbidden to destroy, disassemble or disassemble the battery or short-circuit the battery. When charging, please use the original special charger. It is strictly forbidden to use other chargers.
- Page 7 DYU SMART ELECTRIC BIKE S1 INSTRUCTION By F-Wheel...
- Page 8 Responsibility statement: ● The product model, specifications or related information mentioned in this manual, the company reserves the right to modify and final interpretation; ● The functions of the specific model mentioned in this manual are only applicable to the specific model; ●...
