Summary of Contents for Jorc LOCATOR-EV
- Page 1 Instructions 10/2015...
- Page 2 SAFETY AND PROPER USAGE To ensure safe and enduring performance of this product, you must comply strictly with the instructions enclosed herein. Non- compliance with instructions or improper handling of the product will void your warranty! Usage of this product in conditions not specified in this manual or in contrary to the instructions hereby provided is considered IMPROPER.
- Page 3 INSTRUCTIONS Before using this air saving device, make sure it complies with your request and that it suits your application! 1. Unpack the unit and visually inspect for any transport damage incurred after leaving our factory. 2. Connect the battery and attach the sensor cone. 3.

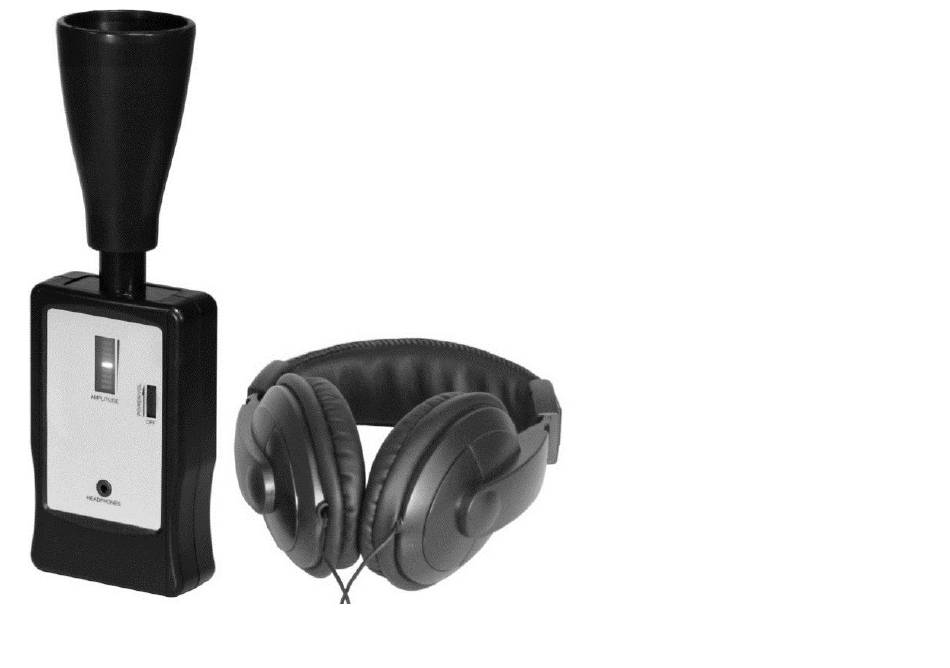

- Page 5 Sensor cone Detector Battery Battery cover Headset...
- Page 6 TECHNICAL SPECIFICATIONS Hand held ABS housing Construction Circuitry SMT/Solid state hybrid heterodyne receiver, ultrasonic processor Frequency Response 36000 - 44000 Hz. Indicator 10 Segment leak indication LED bar Power 9 volt alkaline battery (included) Headset Response time 300 mille seconds Ambient operating temp.
- Page 7 DIMENSIONS (mm)
