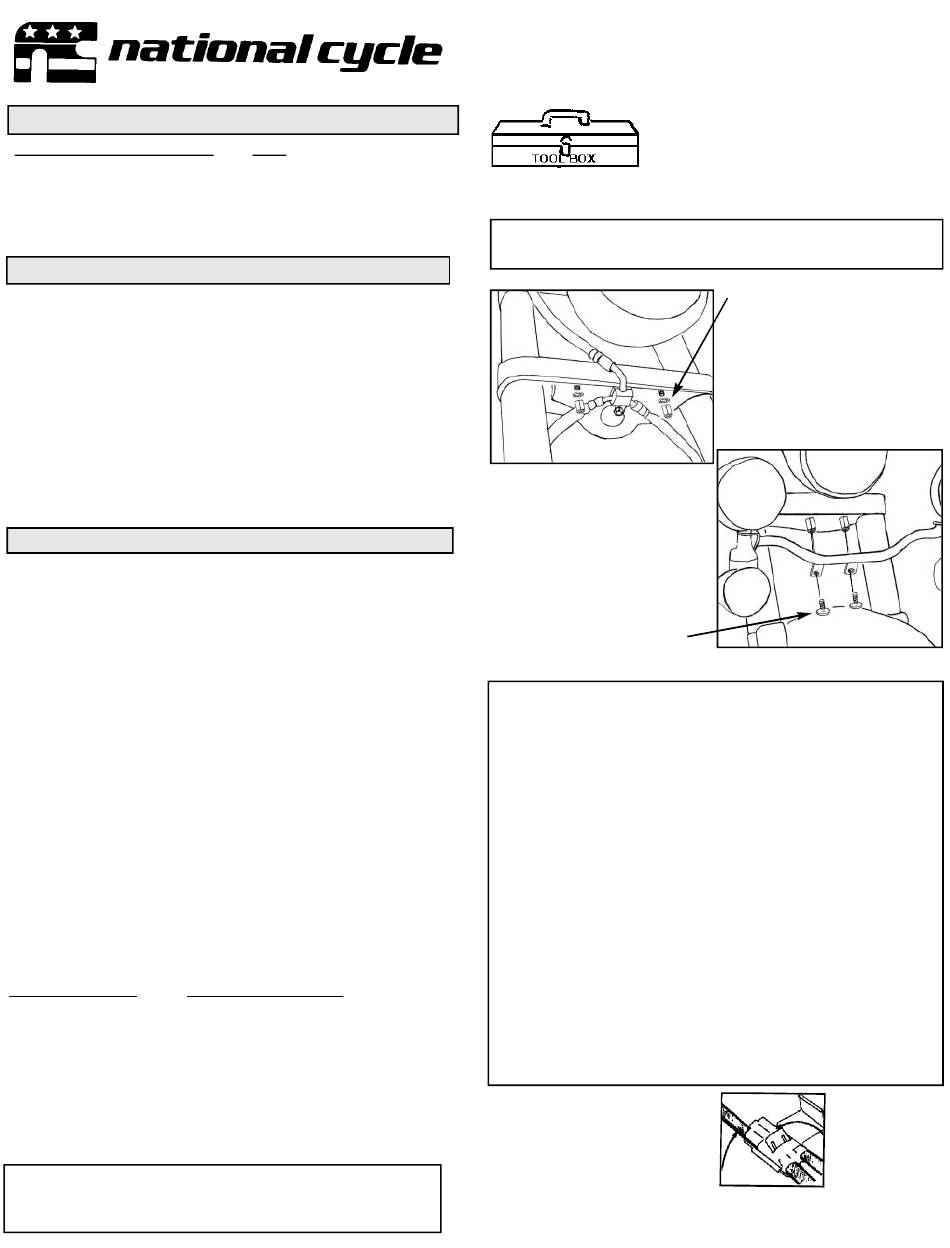

National Cycle N943 Installation And Owner's Manual

PARTS LIST

Description
Lightbar Assembly, N943
Washer, Internal Lock
Coupling Nut
Cap Screw, M8 x 20
Scotchlok Connectors

PREPARATION

1. Make sure bike is securely positioned and disconnect battery.
Place a soft rag on top of fender to avoid scratches.
2. Remove the two screws holding on the headlight ring assem-
bly. Remove the headlight ring assembly by pulling out the bot-
tom first, then down to release the top. Unplug the headlight con-
nector and set the headlight ring assembly safely aside.
3. Inside the headlight shell, unplug the black (right) and green
(left) turn signal connectors.
4. Remove the left turn signal nut and screw (10mm Socket).
Bend up the wire retaining clip found on the headlight bracket and
free the wires inside. Pull the wires out of the headlight shell from
the rear. Remove the turn signal from the bike. Repeat for the
right side.

INSTALLATION

1. Mount the Light Bar Assembly
A. Remove two headlight bracket nuts (12mm socket, 3"
extension and ratchet) from bottom side of lower triple
tree. These will not be re-used.
B. Substitute the two nuts (figure 1) with two Lock
Washers (on top) and two Hex Coupling Nuts - torque
to manufacturer's specifications.
C. Position the National Cycle Light Bar so center brackets
line up with Hex Coupling Nuts.
D. Install a M8 X 20 Socket Cap Bolt through mounting
bracket into one Coupling Nut - do not fully tighten.
Figure 2.
E. Repeat step 4 on other side.
F. Once aligned correctly, torque the two M8 X 20 Socket
Cap Bolts to 15 ft. lbs.
2. Wire the Light Bar assembly
A. Route the Light Bar wires over the lower triple tree into
the rear of the headlight shell. Use the original wire
retainer to secure wires to the headlight bracket.
B. Attach the Light Bar wires per the following list (pliers):

Wire Colors, N943

Blue (Passing Lamps)
Red (Turnsignals)
Black (Running Lamps)
8. Check the operation of the light on the Lightbar, correct the
connections as needed.
9. Reinstall the headlight and ring assembly. Check the lights
again for proper operation.
NOTE: Check local regulations for proper passing lamp
operation. Some states require passing lamps be lit only
with hi-beam.
Qty.
1
2
2
2
6
Wire Colors, VN1500P
to headlight hi-beam (Red/Black)
to Green (left) Gray (right)
to Red/blue (left) Red/Blue (right)
Lo-beam is Red/Yellow
Ground is Black/Yellow
INSTALLATION AND OWNER'S MANUAL
N943 LIGHT BAR for
Kawasaki® VL1500P Mean Streak
NOTE: right and left on the motorcycle are determined from
the rider's position.
Figure 1.
Install Light Bar to
Coupling Nuts
with Cap Screws.
Note, Light Bar Wiring Helpful Hints:
The long Blue wire is the main power wire for the spotlights on
the light bar. Connect that to the main power source from the
headlight. Either the High Beam wire or the Low Beam wire. The
choice is your preference. Turn on bike and Check.
The two short RED wires are for the turn signals. One RED wire
for the Left side turn signal and one for the Right side turn signal.
Turn on bike and check.
The two short BLACK wires are for the running lights. One
BLACK wire for the Left side running light and one for the Right
side running light. Turn on bike and check.
The Light Bar attached to the front fork of the motorcycle serves
as the ground in most cases. A precautionary step to insure prop-
er grounding is to take one of the Ground wires from the existing
turn signals and ground that between the Light Bar Mount and the
Triple Tree Bracket.
Always start by doing one side at a time. Preferably the right side
or high side of the bike first.
Page 1 of 2
3/8" Ratchet, 3/8" x 3" Extension
10mm Socket, 12mm Socket
Hex Key, 6mm
Wrench 10mm
Wrench, 5/8" or 16mm
Screwdriver, #2 Phillips
Remove Headlight Bracket Nuts,
install lock washers and Hex
Coupling Nuts
Figure 2.
Through Wire
10-110743-000 03/02
Wire From Light Bar
