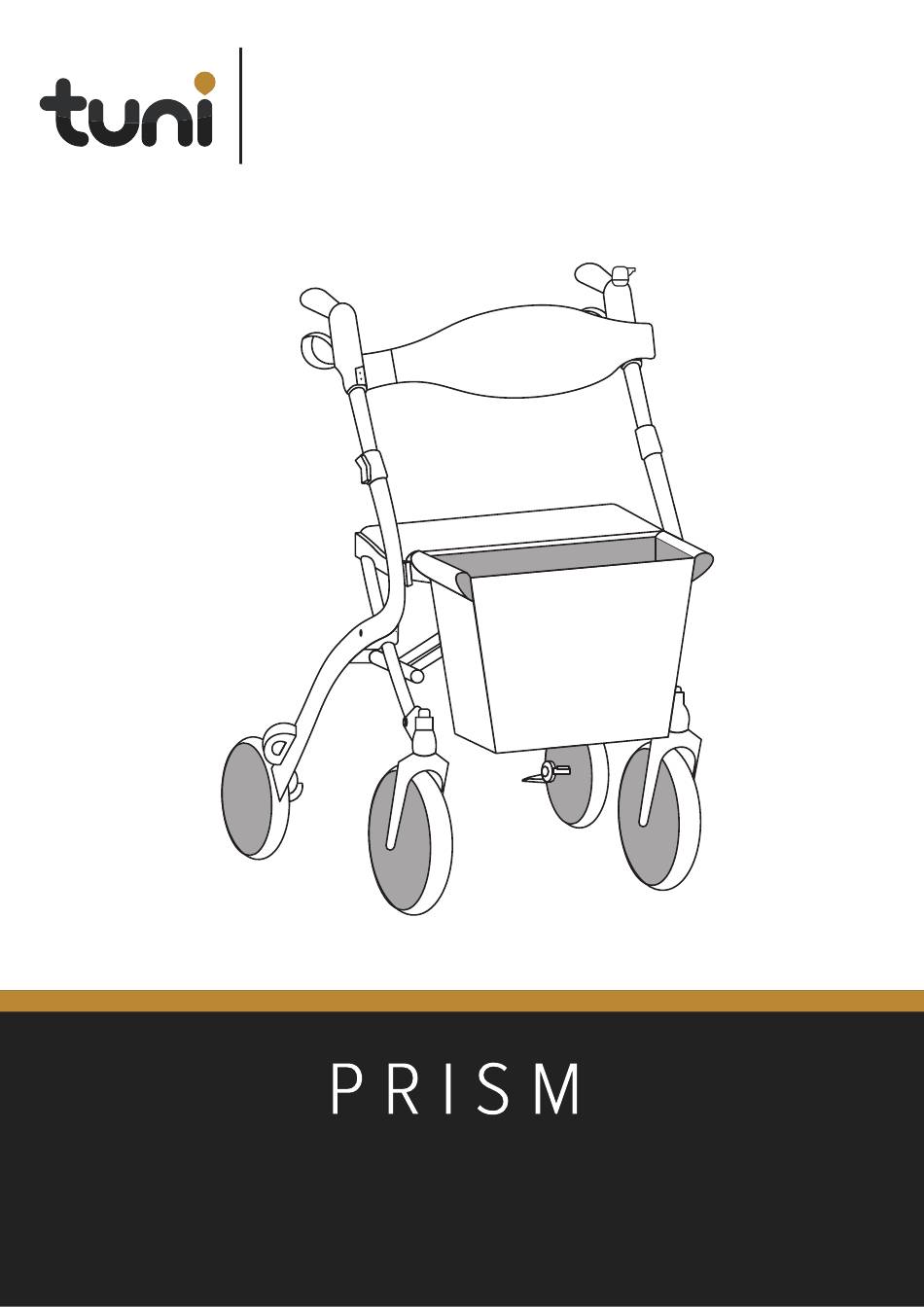

- Page 1 User Manual lightweight rollator Product Code: WA01072 CareCo, Hubert Road, Brentwood, Essex, CM14 4JE...
- Page 2 6. Warranty 1. INTRODUCTION Thank you for purchasing the Tuni Prism outdoor rollator. This product is intended for use by people who need assistance with mobility in outdoor activities. This product is adjustable from 93 to 101cm (Adjustable handle height) and should only be used...
-
Page 3: Product Features
2. PRODUCT FEATURES The Tuni Prism rollator is newly designed with below features: Handle height is adjustable. The backrest is detachable. The rollator is foldable The front wheels roll freely and can be quickly released. There is a curb climber attached to the end of rear wheel tubing in order for help moving over blocks or steps. - Page 4 Description Quantity Handgrip Handle tubing Backrest Seat Cane holder Front wheel Front wheel fork Rear wheel Cross brace Main frame tubing Button Brake Bell Note: Each part is not more than 5kg.
- Page 5 4. LABELLING Compliance with all requirement of EU directives Logo of Genteel Homecare Products Co., Ltd Read carefully the instructions before use Max capacity label: 136KG Warning label for seat Capacity for shopping bag...
- Page 6 5. WARNINGS DO NOT install or use this equipment without first reading and understanding this instruc- tion manual. If you are unable to understand the Warnings, Cautions or Instructions, contact a healthcare professional, dealer or technical personnel before attempting to install this equip- ment - otherwise, injury or damage may occur.
- Page 7 Height Adjustment 1. The handle height adjustment knob must always be locked during usage to avoid injury. 2. Before tightening the knob, always make sure the hole of the handle bar matches with the hole on the frame. Otherwise, it may cause damage to the knob or the handle bar. 6.
- Page 8 Note: before usage, apply some load on the handle bar of rollator to see if there is any movement. If no movement and the lever is fixed there tightly, then the rollator can be used. 4. Lift the seat upward, to fold the rollator as shown in picture below. The rollator could be folded inwards side after the seat is lifted up.
- Page 9 Assembly / adjustment of brake cable Note: Do not pull the brake cable out of the handle tube when installing or adjusting the handle height to avoid accident or damage to the brake system. 1. The position of brake cable Note: The brake cable should moves through inside the handle tubing whilst in use.
-
Page 10: Warranty
Activate the brake 1. Pull UP the brake handles to release as shown in Figure A 2. Release the brake Care and maintenance 1. Ensure that all fixing hardware is secure at ALL times. 2. Check screw securing seat to side slot for tightness. If not, tighten them. 3.
