Summary of Contents for General DataComm SpectraComm ADT Series

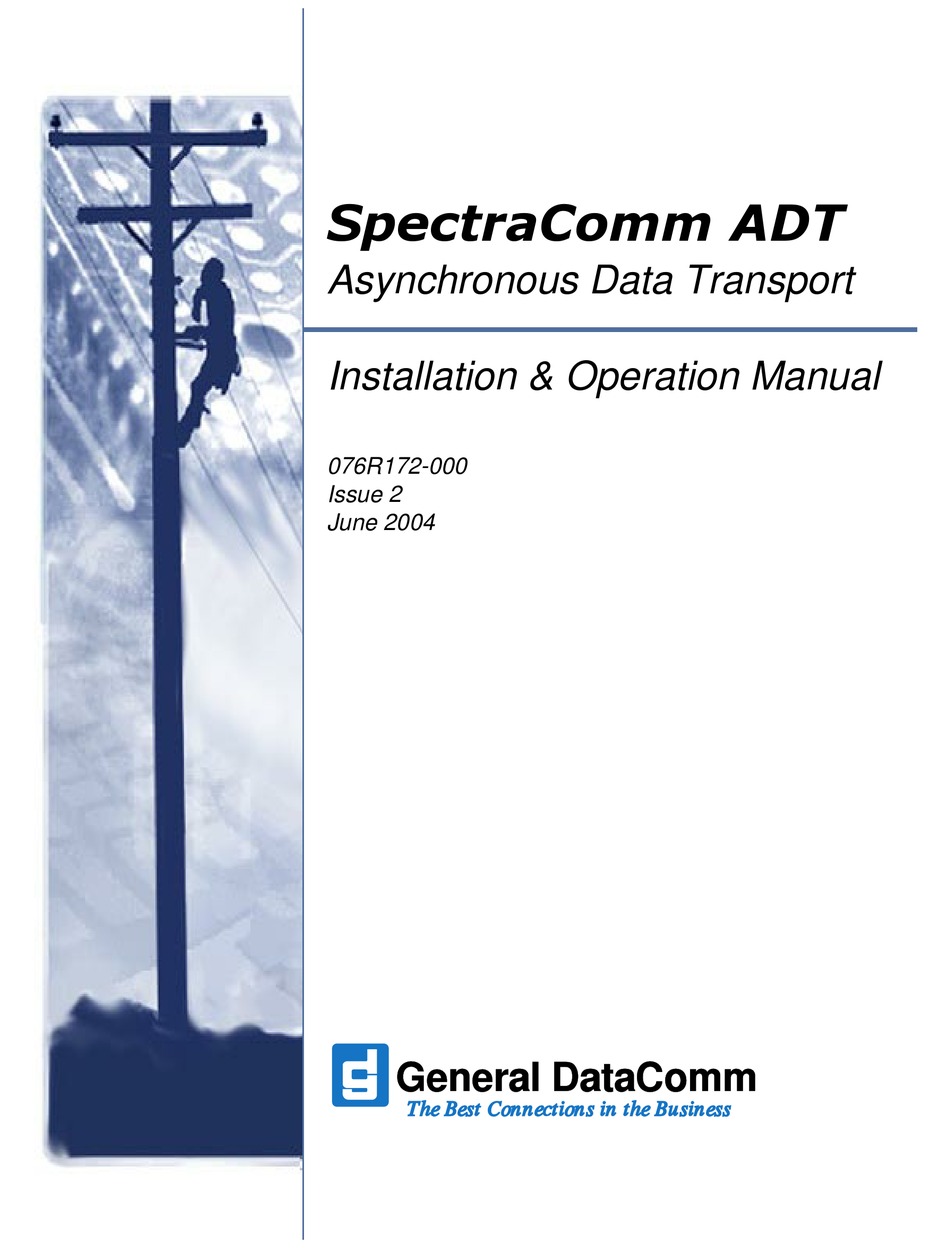

- Page 1 6SHFWUD&RPP#$'7# Asynchronous Data Transport Installation & Operation Manual 076R172-000 Issue 2 June 2004 General DataComm The Best Connections in the Business...
- Page 2 General DataComm, Inc. The information in this document is subject to change without notice. General DataComm assumes no responsibility for any damages arising from the use of this document, including but not limited to, lost revenue, lost data, claims by third parties, or other damages.
-
Page 3: Table Of Contents
Table of Contents Preface Safety Information ........................iv Compliance ..........................v Support Services and Training....................viii Corporate Client Services....................viii Factory Direct Support & Repair ..................viii Contact Information ......................viii Chapter 1: Introduction & Specifications Product Overview ........................1-1 Features & Benefits ......................1-2 SC-ADT Interfaces/Connectivity ..................1-3... - Page 4 Table of Contents Basic Configuration ......................3-4 Interface Configuration ....................3-6 Ports Configuration ......................3-7 Modem Configuration....................3-11 Chapter 4: The Web Interface Introduction to Web Management..................4-1 Web Management Requirements ..................4-1 Starting A Web Session ....................4-2 Command Line Web Screen ....................
-
Page 5: Preface
IP networks. As General DataComm improves the reliability, function, and design of their products, it is possible that the information in this document may not be current. Contact General DataComm, your sales representative or point your browser to http:\\www.gdc.com for the latest information on... -
Page 6: Safety Information
Preface Safety Information Safety Information This manual should be read in its entirety and all procedures completely understood before installing or operating the unit, including all notes, cautions and warnings (examples below). The CAUTION, WARNING, and DANGER statements that appear throughout this manual are intended to provide critical information for the safety of both the service engineer and operator. -
Page 7: Compliance
Preface Compliance Compliance FCC Part 68 (Drop-In Modem) This equipment complies with Part 68 of the Federal Communications Commission Rules. On the outside surface of this equipment is a label that contains, among other information, the FCC registration number. This information must be provided to the telephone company. The suitable USOC jack (Universal Service Order Code connecting arrangement) for this equipment is shown below. - Page 8 Preface Compliance FCC Part 15 (Pending) This device complies with Part 15 of the FCC rules. Operation is subject to the following conditions: This device may NOT cause harmful interference, and This device must accept any interference received, including interference that may cause undesired operation.
- Page 9 Preface Compliance Pour sa propre protection, l’utilisateur doit s’assurer que tous les fils de mise à la terre de la source d’énergie électrique, des lignes téléphoniques et des canalisations d’eau métalliques, s’il y en a, sont raccordés ensemble. Cette précaution est particulièrement importante dans les régions rurales. Avertissement: L’utilisateur ne doit pas tenter de faire ces raccordements lui-même;...
-
Page 10: Support Services And Training
Support Services and Training Support Services and Training General DataComm offers two comprehensive customer support organizations dedicated to pre-and post-sale support services and training for GDC products. Corporate Client Services and Factory- Direct Support & Repair assist customers throughout the world in the installation, management, maintenance and repair of GDC equipment. -
Page 11: Chapter 1: Introduction & Specifications
Introduction & Chapter 1: Specifications Product Overview The SpectraComm Asynchronous Data Transport (SC-ADT) is designed primarily for terminal server applications and for asynchronous data transport over private IP networks. As a Terminal Server device, the SC-ADT manages ENET ENET ENET remote equipment via their craft ports from anywhere in ENET the network. -
Page 12: Features & Benefits
Introduction & Specifications Product Overview Features & Benefits • Provides authenticated, high performance, low-cost transfer of async data between sites utilizing IP networks. • Scalable, individually configurable ports in 16- or 32-port increments. • Acts as a terminal server to connect local craft devices, allowing management from anywhere in the network via Telnet access or optionally via modem Dial-In access. -
Page 13: Sc-Adt Interfaces/Connectivity
Introduction & Specifications Product Overview SC-ADT Interfaces/Connectivity The typical installation environment for the SC-ADT device is a SpectraComm 5000 shelf, SpectraComm 2000 shelf, SpectraComm MultiPak enclosure or the SpectraComm 1001/1002 standalone enclosures. In these shelf/enclosure systems, the SC-ADT provides multiple physical interfaces, described below. -
Page 14: Throughput Performance
Introduction & Specifications Product Overview Throughput Performance Typical Throughput Conditions It is expected that the traffic patterns of typical applications will be bursty in nature, thereby allowing all sixteen or thirty-two async ports to deliver data without loss under typical traffic conditions. End-to-End Flow Control The SC-ADT implements flow-control between the async end-devices to avoid buffer overflow and data loss during extreme traffic conditions. -
Page 15: Management
Introduction & Specifications Product Overview Management Smart CLI The SC-ADT employs an interactive command line interface that will feel familiar to most field personnel. Added features include auto-prompting for command arguments, recognition of abbreviated commands, online help, command line recall and an advanced utility for generating downloadable ASCII configuration files. -
Page 16: Shelf / Enclosure Options
EXPAN SC ADT EXPAN SC ADT EXPAN SC ADT EXPAN SC MULTIPAK ENCLOSURE SLOTS 1-10 SC-ADT 16-PORT SC-ADT 32-PORT INSTALLATIONS General DataComm POWER ON POWER SUPPLY SC ADT SC ADT SC ADT SC ADT EXPAN SC ADT EXPAN SC ADT... -
Page 17: Sc-Adt Front Panel Interface
Introduction & Specifications Shelf / Enclosure Options SC-ADT Front Panel Interface Port LEDs indicate the activity and/or status of the device, the ethernet interfaces, and of the individual ports. LED states vary depending on whether the port is configured as a terminal server port or for transport. -
Page 18: Sc-Adt Applications Overview
Introduction & Specifications SC-ADT Applications Overview SC-ADT Applications Overview The SpectraComm Asynchronous Data Transfer device (SC-ADT) is designed primarily for Terminal Server and Asynchronous Data Transport over IP applications. NEBS-compliant SC- ADT can be deployed anywhere in the network where asynchronous devices, craft port equipment or contact relays are located. -
Page 19: A Terminal Server Application
Introduction & Specifications SC-ADT Applications Overview A Terminal Server Application SC-ADT device can be connected to up to 16 or 32 ports of local asynchronous customer equipment. Each SC-ADT front panel port is a standard EIA-232 async interface that can be configured as terminal server ports for the management of remote equipment through their craft ports. -
Page 20: A Transport Mode Application
Introduction & Specifications SC-ADT Applications Overview A Transport Mode Application The asynchronous transport mode of the SC-ADT links async equipment together over the customer's IP network. The SC-ADT encapsulates the async traffic into IP packets and forwards the data over Ethernet to the local router/bridge (or to companion product, the SCIP router) for transfer over the IP network. -
Page 21: A Contact Sense Application
Introduction & Specifications SC-ADT Applications Overview A Contact Sense Application The SpectraComm ADT rear panel DB-25 connector can perform contact sensing and can be configured for alarm notification whenever a change in contact relays occur at customer sites. SC-ADT detects when a contact changes from its normal state and declares an “active” alarm. A “clear”... -
Page 22: Technical Specifications
Introduction & Specifications Technical Specifications Technical Specifications The following tables describes the physical, operational, and environmental specifications for the SpectraComm ADT (16-Port or 32-Port). Conforming to these specifications ensures maximum system performance and reduces the chances of mechanical breakdown and personnel hazard. Table 1-2 Technical Specifications Specification... - Page 23 Introduction & Specifications Technical Specifications Table 1-2 Technical Specifications (Continued) Specification Description Detail Compliance Vibration Compliant with GR-63-Core, Section 4.4.4 and Section 4.4.3 Shock Compliant with GR-63-Core, Section 4.3 for Category “A” and Category “B“ Containers. NEBS Level III Compliant with GR-1089-Core, GR-63-Core, GR-78-Core FCC Part 15 Class A Telco FCC Part 68 Approved...
- Page 24 Introduction & Specifications Technical Specifications 1-14 SpectraComm ADT 076R172-000 Installation and Operation Manual Issue 2...
-
Page 25: Chapter 2: Installation & Connections
Installation & Connections Chapter 2: Overview This chapter describes installation and setup procedures for the SC-ADT 16-port or the SC-ADT 32-port Asynchronous Data Transport device. Procedures for both units are the same except where noted. The 16-port and the 32-port units can be installed in a 16-slot SpectraComm shelf or a 10- slot MultiPak enclosure. -
Page 26: Unpacking Instructions
Installation & Connections Overview Unpacking Instructions The SC-ADT device and components are shipped in shock-absorbent packing within a corrugated box. Table 2-1 lists compatible SC-ADT equipment; Table 2-2 lists shelf/enclosure options. Some components will not be required/supplied for your network installation. Perform a thorough inspection of each component shipped. -
Page 27: Installing The Sc-Adt
Installation & Connections Overview Table 2-2 Shelf Systems and Optional Equipment Item Description Part Number SC 1001 SpectraComm Standalone Enclosure, one slot, AC-powered, 115V 010M300-001 Enclosures SpectraComm Standalone Enclosure, one slot, AC-powered, 220V 010M300-002 SC 1002 Enclosure SpectraComm Standalone Enclosure, one slot, DC-powered 010B301-006 SC 2000 Shelves SpectraComm 2000 Shelf, two slots, non-redundant power supply... -
Page 28: Shelf And Card Connections
Installation & Connections Shelf and Card Connections Shelf and Card Connections The following paragraphs describe cables, connectors, and pinouts for each Front Panel port or shelf connector when the SC-ADT is installed in a GDC shelf/enclosure. When making card and shelf connections for the SC-ADT device: •... - Page 29 Installation & Connections Shelf and Card Connections CONNECTOR SC-ADT 16-PORT CONNECTIVITY DETAILS FRONT PANEL VIEW INTERNAL MODEM/LINE SPECTRACOMM ONLY SHELF BACK PANEL ETHERNET (LAN) PORT ENET PORT PIN 8 PIN 1 TERMINAL/ TRANSPORT 9-16 PORTS 1 - 8, PORTS 9 - 16 SC 2000 SHELF BACK PANEL SC 1001/1002 ENCLOSURE...
- Page 30 Installation & Connections Shelf and Card Connections CONNECTOR SC-ADT 32-PORT CONNECTIVITY BASE EXPAN DETAILS FRONT PANEL CARD CARD VIEW INTERNAL MODEM/LINE SPECTRACOMM ONLY SHELF BACK PANEL ETHERNET (LAN) PORT SHELF ADDRESS ENET ENET JUMPER ENET PORT PORT PIN 8 PIN 1 17-24 TERMINAL/ 9-16...
-
Page 31: Interface Port Descriptions
Installation & Connections Shelf and Card Connections Interface Port Descriptions Internal Modem/Line Port (Interface “A” in Figure 2-1 Figure 2-2) The internal modem port interface is the upper RJ48C connector located on the shelf rear panel at the SC-ADT slot (J17-J32). The table below describes the port pinouts. Table 2-3 Internal Modem/Line Pinouts Signal... - Page 32 Installation & Connections Shelf and Card Connections Terminal Server/Transport Ports (Interface “C” in Figure 2-1 Figure 2-2) The Terminal Server/Transport interface is provided by 68-pin D-type connectors at the SC-ADT front panel. A high density interface cable, a 16- or 32-port patch panel, and cables/adapters suited to the attached devices are required.
- Page 33 Installation & Connections Shelf and Card Connections Craft Port / Contact Sense Pinouts (Interface “D” in Figure 2-1 Figure 2-2) The SC-ADT Craft (or console) port is provided by the RS-232-compatible DB25 connector at the rear shelf slot. This interface supports 9600bps asynchronous data and provides terminal interface control of the unit by direct connection to a local VT100-compatible ASCII terminal.
- Page 34 Installation & Connections Shelf and Card Connections 2-10 SpectraComm ADT 076R172-000 Installation and Operation Manual Issue 2...
-
Page 35: Chapter 3: Sc-Adt Configuration
SC-ADT Configuration Chapter 3: Configuration Overview SC-ADT configuration is performed through the command line interface (CLI). You can execute CLI commands at a HyperTerminal connection or through a Telnet connection. A brief overview of CLI is provided below. For a detailed guide to Smart CLI, refer to Appendix A, Application Guidelines . -
Page 36: Initializing The Sc-Adt For Configuration
W E L C O M E S P E C T R A C O M M ADT 16 Copyright General DataComm 2004 Running version is V1.0.0 Use "?" at any time on the command line to get help. -
Page 37: Accessing The Command Line Interface
SC-ADT Configuration Initializing the SC-ADT for Configuration Accessing the Command Line Interface The following paragraphs describe the basic procedures for accessing and configuring SC-ADT using the command line interface (CLI). Access to the SC-ADT is controlled by three CLI access modes: USER, SUPERVISOR and ADMIN. -
Page 38: Configuring Sc-Adt For Typical Applications
SC-ADT Configuration Configuring SC-ADT for Typical Applications Configuring SC-ADT for Typical Applications The following procedure configures the SC-ADT for a typical deployment in your network as an async terminal server or as an async data transport device. Procedures are the same for the 16-port or 32-port device except where noted. - Page 39 SC-ADT Configuration Configuring SC-ADT for Typical Applications 6. Configure SNMP with your site-specific information and enable SNMP for read-only (ro) access by typing the following commands: [community name] configure snmp community add ro en [your system name] configure snmp system name [your system contact] configure snmp system contact [your system location]...
-
Page 40: Interface Configuration
SC-ADT Configuration Configuring SC-ADT for Typical Applications Login Banner Configuration Procedure Note You must log in with ADMIN privileges to execute the commands in this procedure. 1. At the prompt, type: enable 2. Type your ADMIN password, then press Enter 3. -
Page 41: Ports Configuration
SC-ADT Configuration Configuring SC-ADT for Typical Applications 4. Enable access to ethernet services by typing: services access enable ethernet0 5. If necessary, add a static route for the ethernet interface by typing: [destination IP] [destination mask] configure ip-route add ethernet0 [next hop/gateway] [metric] Note conf ip a ? - Page 42 SC-ADT Configuration Configuring SC-ADT for Typical Applications 3. To enable the Telnet menu, type: configure ports tel-menu enable 4. For Transport mode only, configure each port for transport mode and with its remote port number and IP address by typing: configure ports tport port[n] [remote IP address] [remote port number] For example: configure ports tport port5 192.200.12.6 port16...
- Page 43 SC-ADT Configuration Configuring SC-ADT for Typical Applications 9. To view the signal characteristics of all SC-ADT ports, type: show ports eia-leads Note The SC-ADT also provides CLI commands that control how and when users are connected to, and disconnected from, the SC-ADT. These optional settings are described in Chapter 5, Additional Features Special Consideration - Modem Use If Port1 and/or Port2 are configured for use by an external modem, these ports will be disabled as...
- Page 44 SC-ADT Configuration Configuring SC-ADT for Typical Applications Special Consideration - Transport Configuration Changes In Transport applications, once a pair of SC-ADT devices are configured and passing data, you make most port configuration changes at either device separately. Certain configurations: port mode, port enable, and port IP address, are shared between corresponding ports on either side of a link.
-
Page 45: Modem Configuration
SC-ADT Configuration Configuring SC-ADT for Typical Applications Modem Configuration Any SC-ADT can be configured to use one or two external GDC V.34 modems. When equipped with internal modems, the SC-ADT can use either the internal or external modems in any combination. - Page 46 SC-ADT Configuration Configuring SC-ADT for Typical Applications 5. Enable access to modem services by typing: services access enable modem0 services access enable modem1 6. Add a static route for the modem interfaces by typing: [destination IP] [destination mask] configure ip-route add modem0 [next hop/gateway] [metric] [destination IP] [destination mask] configure ip-route add modem1...
- Page 47 SC-ADT Configuration Configuring SC-ADT for Typical Applications show modem callback modem show modem mode modem show modem use Figure 3-3 Typical Modem Displays. 076R172-000 SpectraComm ADT 3-13 Issue 2 Installation and Operation Manual...
- Page 48 SC-ADT Configuration Configuring SC-ADT for Typical Applications 3-14 SpectraComm ADT 076R172-000 Installation and Operation Manual Issue 2...
-
Page 49: Chapter 4: The Web Interface
The Web Interface Chapter 4: Introduction to Web Management In addition to the command line interface at the Craft and Telnet interfaces, SC-ADT provides access to a web interface through its integral HTTP server. This server allows authorized users to view and change SC-ADT configuration and operation parameters in a streamlined logical format via their popular web browsers. -
Page 50: Starting A Web Session
The Web Interface Introduction to Web Management Starting A Web Session This release of the SC-ADT provides the web-based Command Line Interface. To start a web management session, type the IP address of a SC-ADT unit or type the host name at any browser. The following login authorization screen appears: SpectraComm ADT Username:... -
Page 51: Command Line Web Screen
The Web Interface Introduction to Web Management Command Line Web Screen Commands entered at the Command Line web screen operate exactly the same as at the telnet/ terminal CLI interface. The Command line web page displays a series of tables that allow users and supervisors to execute commands and associated arguments by clicking on the links in the table. - Page 52 The Web Interface Introduction to Web Management SpectraComm ADT 076R172-000 Installation and Operation Manual Issue 2...
-
Page 53: Chapter 5: Additional Features
Additional Features Chapter 5: Overview of Additional Features The SC-ADT supports the following additional features: • Time Protocols • TACACS+ Authentication Protocol • Contact Sense • Connect/Disconnect Controls • Chat CLI Communication • Telnet Menu • System Message Log and Alarm Log •... -
Page 54: Tacacs+ Authentication Protocol
Additional Features Overview of Additional Features TACACS+ Authentication Protocol In addition to local authentication where the usernames and passwords reside on each individual SC-ADT device, SC-ADT can be configured for TACACS+ authentication. This capability supports the CISCO TACACS+ protocol for authentication between the SC-ADT device and the TACACS+ server. - Page 55 Additional Features Overview of Additional Features TACACS+ Server Configuration Consult your TACACS+ server documentation to configure the server. To function properly with the SC-ADT devices in the network, your TACACS+ server must satisfy the requirements listed below: • TACACS+ key configured on the server must match the key configured on the SC-ADT. •...
- Page 56 Additional Features Overview of Additional Features 6. To configure SC-ADT for your user-defined supervisor/admin privilege accounts, type the following commands using double-quoted strings for the name: “name” configure tacacs+ admin “name” configure tacacs+ supv Note User-defined accounts on the TACACS+ server must match those on the TACACS+ client (SC-ADT). 7.
- Page 57 Additional Features Overview of Additional Features TACACS+ Fallback Option SC-ADT authentication strategy uses TACACS+, if so configured, but the device will revert to local authentication (default) if the TACACS+ server is unreachable or not responding due to network outage, server down, etc. In such situations, authentication falls back to the SC-ADT local list of 20 usernames and passwords.
-
Page 58: Contact Sense
Additional Features Contact Sense Contact Sense The SC-ADT can be configured for contact sensing and employs the rear panel DB25 interface to make connections to up to eight external relays. When an external relay is connected between output and input pins of any contact port, the SC-ADT can sense the state of the relay contacts. All eight ports can be polled very quickly, providing Contact Sense for all ports simultaneously. - Page 59 Additional Features Contact Sense Contact Sense Procedure Perform the following procedure for each connection to an external relay at the site. The procedure below configures an individual contact port using the contact port number [#] in the command string. If desired, you can configure a parameter for all contact ports at once by typing in place [#].
-
Page 60: Connection Controls
Additional Features Connection Controls Connection Controls Users with Administrator privileges to the SC-ADT can limit access to the device by configuring any of several connect and disconnect controls. These optional controls are put into effect by port configuration CLI commands. Table 5-1 Connect/Disconnect Controls Command... -
Page 61: Telnet Menu Access
Additional Features Telnet Menu Access Telnet Menu Access The SC-ADT supports Telnet access to the command line interface and also to each enabled terminal server port. A successful Telnet connection to the SC-ADT will display the Telnet menu. In the figure below, a typical configuration of the SC-ADT 16-port device is shown. •... -
Page 62: Monitoring Features
Additional Features Monitoring Features Monitoring Features Each System Message or Alarm log entry is time-stamped with a relative System Up Time (default) or with GMT, if so configured (refer to Time Protocols in this chapter). System Message Log The System Message log shows a history of the last 100 SYS MSG events saved to the log. Use this log to examine link status, diagnostic test activity, etc. -
Page 63: Clear Functions
Additional Features Monitoring Features Clear Functions The SC-ADT provides several CLI commands for clearing unit or interface statistics and logs, as well as statistics collected on each port. These commands allow you to clear such information by interface, by port, or globally. To access the help for the clear commands type: •... -
Page 64: Snmp Traps
Additional Features SNMP Traps SNMP Traps The SC-ADT supports SNMP traps for Cold Start and Contact Sense Active/Clear for each enabled contact sense port. All traps are queued for each of up to four trap hosts. Traps are kept in the queue until IP connectivity to the trap host is verified. -
Page 65: Appendix A:application Guidelines
Application Guidelines Appendix A: General Application Information This chapter provides additional information on standard factory default settings, access modes, Smart CLI and any special network or product considerations. Command Access Modes Access to Supervisor Mode or Admin Mode is password protected. The show supervisor command displays the current state of Supervisor Mode (enabled or disabled) and Admin Mode (on or off). - Page 66 Application Guidelines General Application Information SC-ADT Default Configurations SC-ADT is shipped from the factory with the ordered Default Profile that suits most customer applications. Table A-1 lists all configuration parameters, with the Default Configuration Profile #1 settings shown bold. Your factory defaults may vary, depending on which profile was ordered with your unit.
-
Page 67: General Application Information
Application Guidelines General Application Information Table A-1 Configuration Parameters and Defaults Configurable Option Description Parameters and Defaults Ethernet0 access Sets the access to the Ethernet0 Enable or Disable interface Modem0 access Sets the access to the Modem0 Enable or Disable interface Modem1 access Sets the access to the Modem1... - Page 68 Application Guidelines General Application Information Table A-1 Configuration Parameters and Defaults Configurable Option Description Parameters and Defaults Port inactivity timer Disconnects port session after the 0 to 10,000 use 0 to disable desired interval (in secs) has elapsed. Port description Describes the use of the port A quoted string;...
- Page 69 Application Guidelines General Application Information Table A-1 Configuration Parameters and Defaults Configurable Option Description Parameters and Defaults TACACS+ local banner Message banner displayed when a A quoted string; 72 chars max console TACACS+ login succeeds (No banner) TACACS+ console Controls TACACS+ login Disable Enable or authentication via the console...
-
Page 70: Using Smart Cli
Application Guidelines Using Smart CLI Using Smart CLI The Smart CLI commands can be executed from a hyperterminal connection, a password-protected Telnet connection or at the web interface. When using CLI at the web interface, be aware that you will not be able to execute those commands that are restricted to the ADMIN mode. The SC-ADT command line interface is composed of commands, zero or more subcommands and zero or more arguments. - Page 71 Application Guidelines Using Smart CLI • When you type show ? the screen displays Help for all of the show sub commands: ADT-16% show ? ___________Help for "show "______________________ accounts Show login accounts info arp-cache Show ARP cache entries banner Show login banner config Show configuration as batch script text commands...
- Page 72 Application Guidelines Using Smart CLI • Parameters separated by spaces may be entered after the last subcommand on the command line. If you do not enter all required arguments on the command line, you will be prompted for the missing ones after pressing Enter or the carriage return. Arguments If a command or subcommand requires arguments, you can type the ? character after the last subcommand to display a description of the required parameters to complete the command line.
-
Page 73: Batch Up/Download Overview
Application Guidelines Batch Up/Download Overview Command Recall There are two ways to recall previously entered commands: • Arrow UP Recall Use the Arrow Up key to recall previously entered commands in reverse order. Use the backspace key to edit the command string, if needed. Press Enter to execute the command string. -
Page 74: Troubleshooting Communications Problems
Application Guidelines Troubleshooting Communications Problems Troubleshooting Communications Problems Ethernet (LAN) Communication Problems • IP Address not set correctly in the SC-ADT. • Cables not installed. • Default Route not set when router exists. 1. Connect a VT100-compatible terminal to the CTRL port to check the IP Address and mask in the SC-ADT and ensure the values is correct. - Page 76 The Best Connections in the Business...
