SAFETY NOTES:

1. Make sure the SuperDrive 75 tool is powered down and
unplugged before replacing a bit, or removing the indexing unit.
2. Never use SuperDrive 75 while standing on an unstable platform.
3. Never point the driver at yourself or others in the work area.
4. Avoid wearing loose clothing, jewelry or other items that could
become caught in the tool.
5. Make sure SuperDrive 75 is clear of clothing, hair or other loose
items while operating the tool.
6. Make sure the tool is powered down and unplugged before
performing any adjustment or repair to the indexing module.
7. Always use collated screws and strips that are designed for this tool.
See Technical Data below.
Operating Instructions for SuperDrive

OPERATING SuperDrive 75

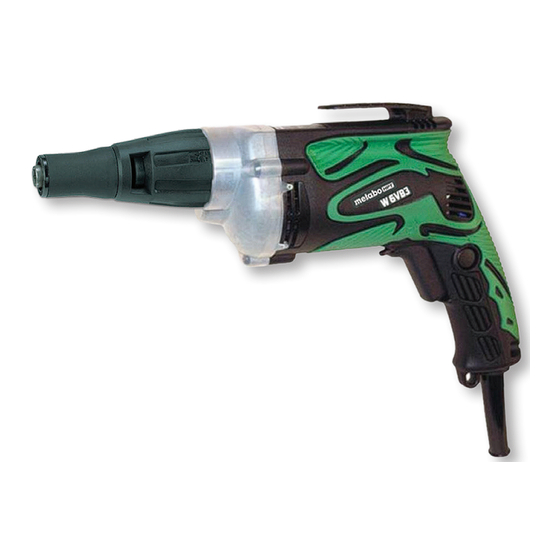

Attaching the indexing Module

1. Remove the factory nose piece and bit from
the driver.
2. Remove the bit holder from the driver.
3. Attach SuperDrive 75 coupler to the Hitachi
driver. (A,B)
4. Insert SuperDrive bit tip into the screw gun.
(A,B)

TECHNICAL DATA:

1. Use SuperDrive 75 with #6-#12 gauge screws only.
2. Use SuperDrive 75 with screw lengths from 5/8-in (16mm) - 3-in
(76mm) only.
3. SuperDrive 75 is designed for fastener head diameters up to
3/8-in.
4. Only use bits with a 6mm shank diameter with SuperDrive 75.
5. SuperDrive 75 is designed to work best with the following bits:
725449 - 178mm Square
725438 - 178mm Phillips
725439 - 178mm LOX

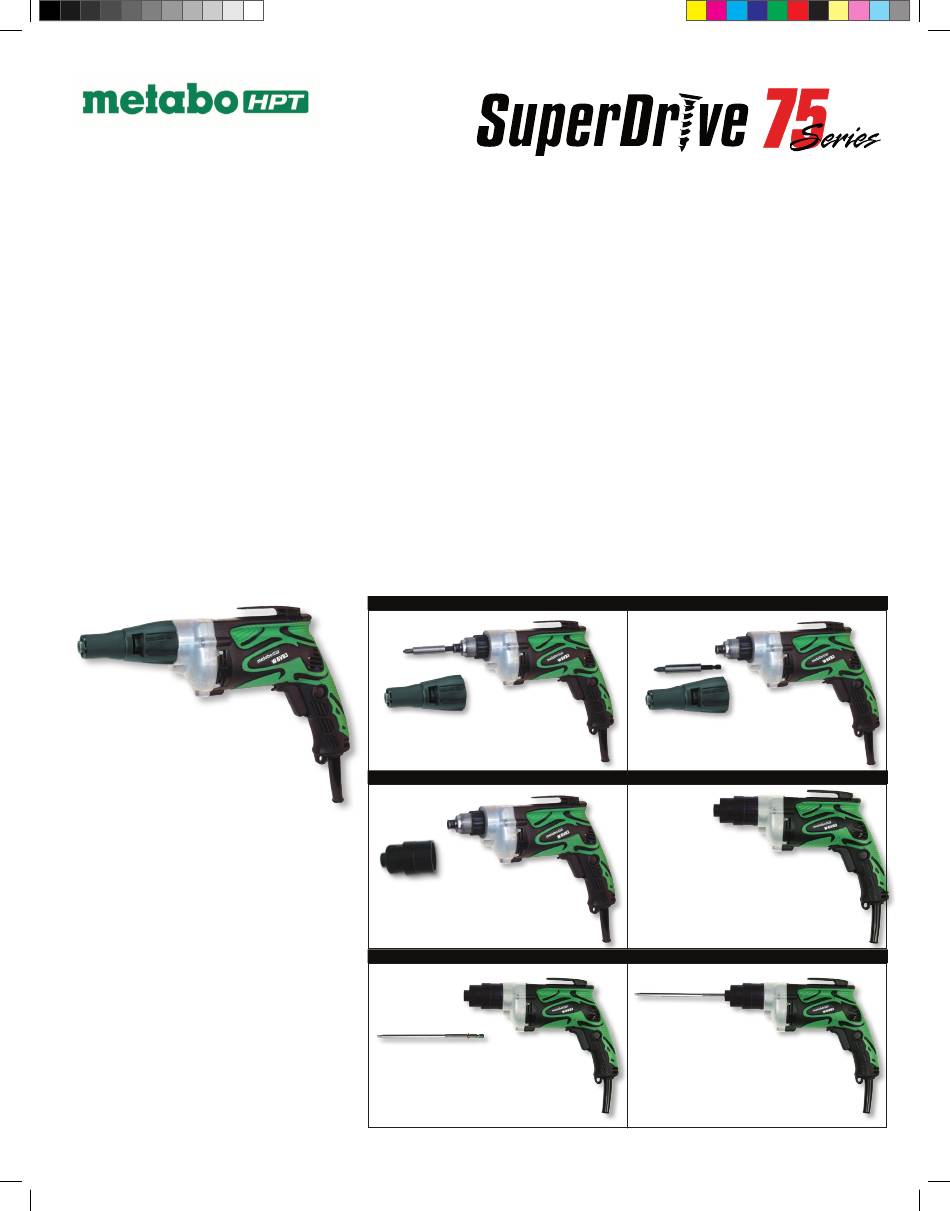

1. Remove factory nose piece
3. Attach SuperDrive 75 coupler
(A)
4. Insert SuperDrive bit tip into the screw gun
(A)
®
®
®
®
®
75
®
2. Remove bit holder and bit
(B)
(B)
