Martin Universal Design Deluxe French Sketchbox Easel Assembly Instructions

92-3032, 92-3033, 92-3531, 63-AB3033
Deluxe French Sketchbox Easel Assembly Instructions
This french sketchbox easel is 95% assembled. All one must do is set-up the legs and open the
sketchbox for proper use and handling.
Assembly Instructions

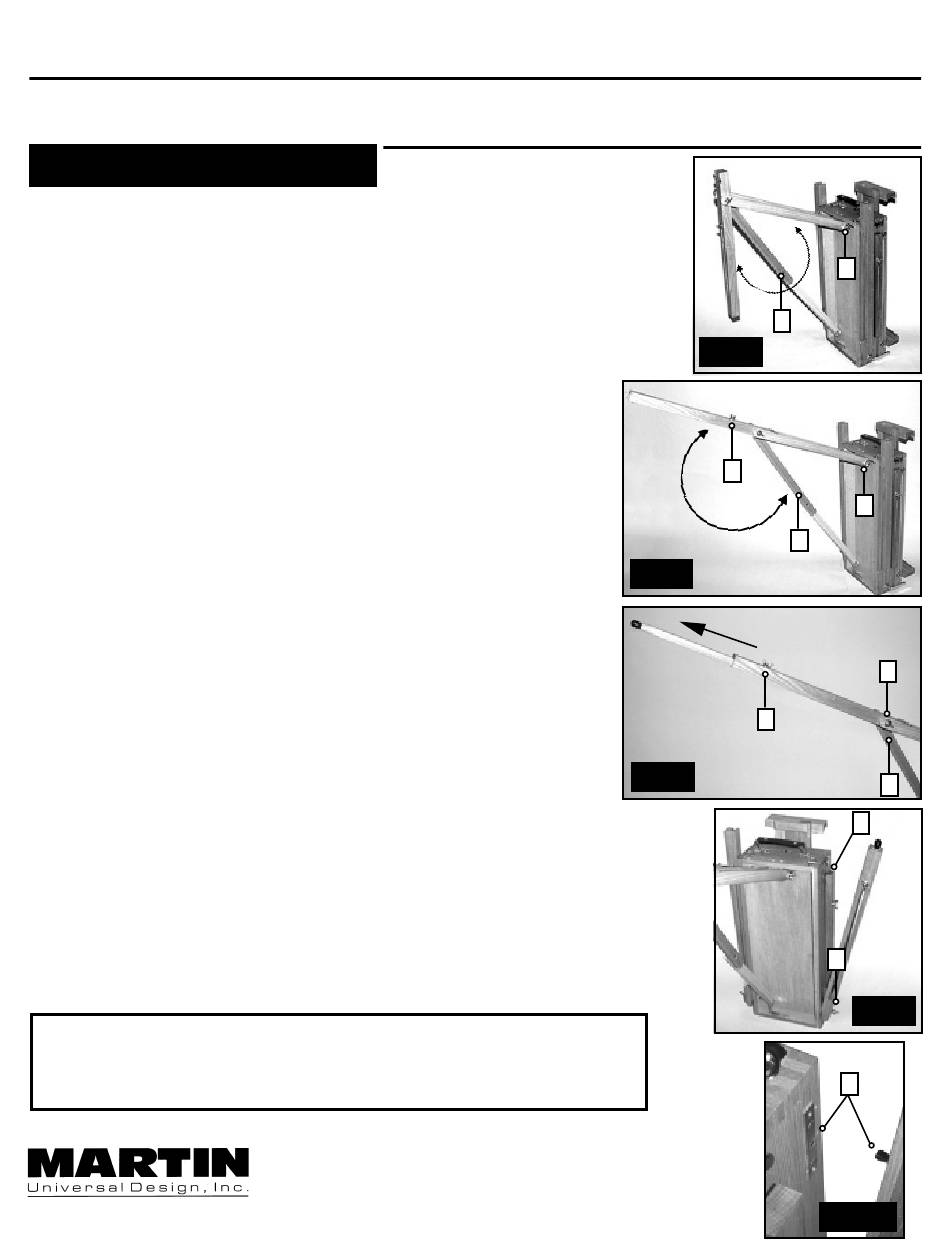

1. After removing Sketchbox Easel from box, remove styro-foam
sides and discard.
2. Begin by loosening wing nut [A] found under top rear edge of
easel sketchbox. After loosening wing-nut [A], swing center leg
outward while swinging hinged support [B] out until it stops
against support plate. Tighten wing-nut [A] to secure. See FIG 1.
3. Loosen wing-nut [C] and swing middle section of center leg up
until it stops against support plate. Tighten wing-nut [C] to
secure. See FIG 2.
4. Finish center leg assembly by loosening wing-nut [D] and sliding
out the lower section of leg completely. Tighten wing-nut to
secure. See FIG 3.
5. Assemble Side Legs by slightly loosening wing-nut [E] and
pulling legs away from easel box by unsnapping it from the
easel sketchbox at [F] Please Note: You may have to pull
firmly. See FIG 4 and review FIG 4A.
Turn page over to complete assembly instructions.
If you have difficulty assembling your easel or need customer service assistance.
Please call: Martin Universal Design, Inc. Customer Service Hot Line at
1-800-366-7337. If you need additional parts, it is not necessary to contact your
dealer, our Customer Service Rep. will forward them to you immediately.
