CAT 5 LCD Console Drawer Quick Installation Guide

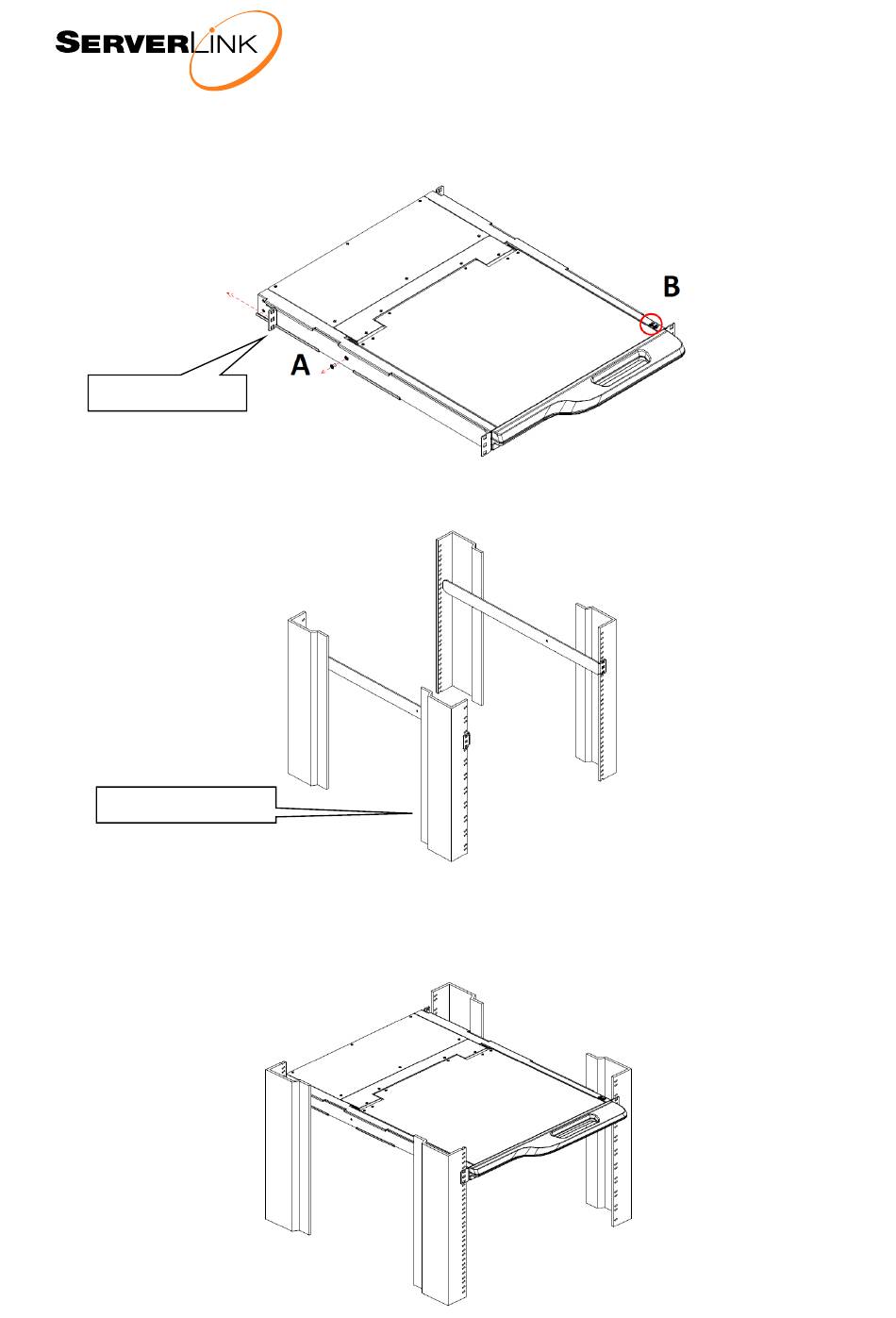

Step 1
Loosen screw A on both sides to slide out and remove the two rear slide rails.
Remove safety stopper B by loosening the two screws and moving to unlock position.
Rear Slide Rails
Step 2
Attach the two rear slide rails to the rear vertical mounting rails of the rack cabinet using
standard M6 cage nuts and screws.
Rear Cabinet Rails
Step 3
Position the LCD console drawer so the two rear slide rails will slide into the main body
of the LCD console drawer. Attach the mounting ears of the LCD console drawer to the
front vertical mounting rails of the rack cabinet using standard M6 cage nuts and screws.
Advertisement
Table of Contents
Summary of Contents for serverLink CAT 5 LCD
- Page 1 CAT 5 LCD Console Drawer Quick Installation Guide Step 1 Loosen screw A on both sides to slide out and remove the two rear slide rails. Remove safety stopper B by loosening the two screws and moving to unlock position.
- Page 2 LCD drawer and does not affect your computer hardware or software function in any way. Selected Port Channel / Port No. Firmware Version Function Key Menu Please refer to the “ServerLink CAT 5 LCD User Manual” included on CD-ROM for detailed setup and operation.
