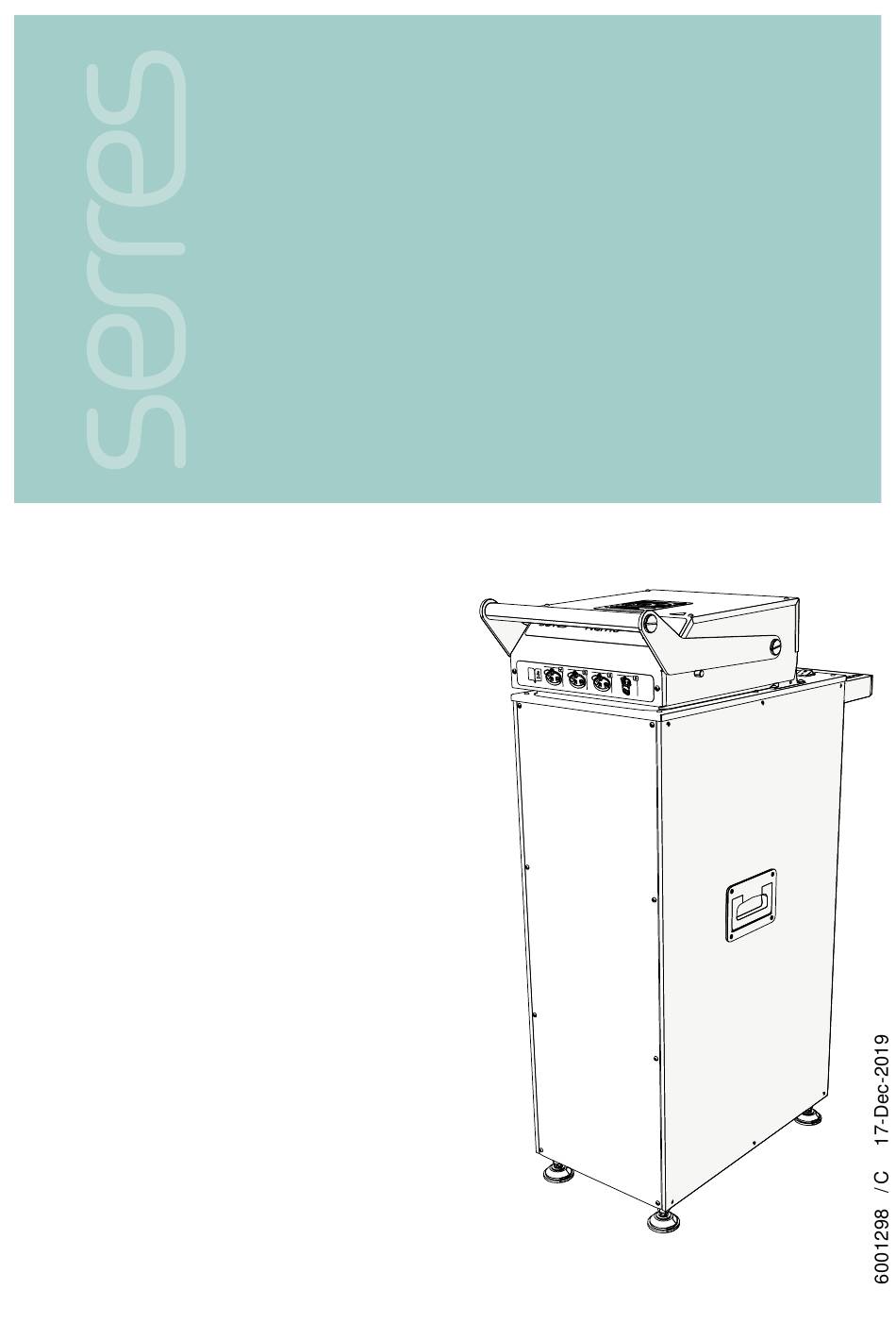

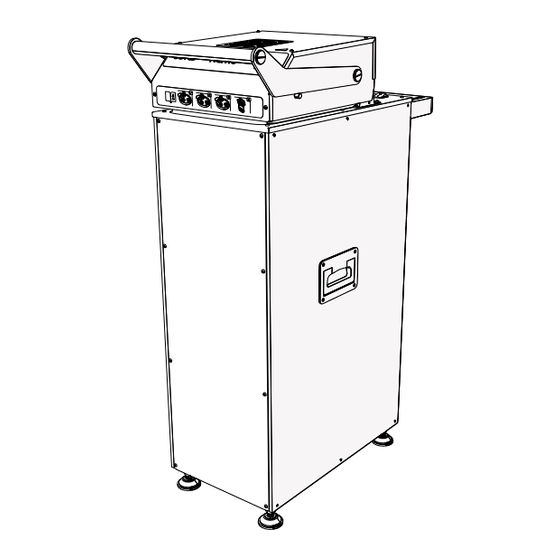

- Page 1 SERRES NEMO® Serres Suction bag emptying device Installation, Operation and Maintenance Instructions SERRES NEMO® is a registered trademark of Serres OY.
-
Page 2: Table Of Contents
Regulatory and Building Code Requirements and Permits Installation STEPS After installation, test SERRES NEMO® USE AND OPERATION OF SERRES NEMO® Opening and closing the lid Placing the suction bag in SERRES NEMO® Emptying the suction bag Operating Switches TROUBLESHOOTING Cleaning SERRES NEMO®... -
Page 3: Introduction
INSTRUCTIONS – BIOHAZARD WARNINGS. Transportation and storage · SERRES NEMO® should be stored indoors in a warm place +15°C to +35°C. The device must be protected from moisture, dirt and dust during transport and storage. · To ensure the longevity, performance and safety of SERRES NEMO® use of original packaging material is recommended when storing or transporting. -
Page 4: Warranty
SERRES NEMO®. A warranty claim must be made to SERRES OY or your local Serres distributor at the latest within thirty (30) days following the end of the Warranty Period. - Page 5 FORTH ABOVE ARE EXCLUSIVE AND IN LIEU OF ALL OTHER WARRANTIES, REMEDIES, AND CONDITIONS, WHETHER ORAL OR WRITTEN, STATUTORY, EXPRESS OR IMPLIED, AS PERMITTED BY APPLICABLE LAW. SERRES OY SPECIFICALLY DISCLAIMS ANY AND ALL STATUTORY OR IMPLIED WARRANTIES, INCLUDING WITHOUT LIMITATION, WARRANTIES...
-
Page 6: Accesories And Replacement Part
SERRES NEMO®. If SERRES NEMO® has been damaged or parts are missing do not install or use SERRES NEMO®. Contact Serres Oy, your local Serres Distributor or their authorized service partners. -
Page 7: Chemical Safety
Serres Oy Technical Support, your local Serres Distributor or their authorized service partners · Place SERRES NEMO® close to wall electrical socket so users are able to quickly and easily detach the power plug from wall electrical socket. -
Page 8: Guidance And Manufacturer's Declaration - Electromagnetic Emissions
Guidance and manufacturer’s declaration — electromagnetic emissions SERRES NEMO® suction bag emptying device is intended for use in the electromagnetic environment specified below. The customer or the user of the device should assure that the device is used in such an environment. -
Page 9: Installation
INSTALLATION SERRES NEMO® is designed to be installed in a wet room, such as a sluice room. We recommend having a floor drain in a room where SERRES NEMO® is installed. WARNING! DO NOT INSTALL OR USE SERRES NEMO® WHERE PATIENTS ARE BEING TREATED. -
Page 10: Regulatory And Building Code Requirements And Permits
· STEP TWO: Connect to the sanitary waste line SERRES NEMO® is connected to the sewer network with a DN 50 pipe. The sewer pipe is connected to the bend of SERRES NEMO®’s backside; the bend can be rotated 180º. -
Page 11: After Installation, Test Serres Nemo
After making the water and sewer connections, use a level to ensure SERRES NEMO® standing model is level and straight. To do this, place a level at the back of SERRES NEMO® to ensure that it is standing straight. If necessary, adjust its legs. Do not measure straightness from the lid at the top of SERRES NEMO®. -
Page 12: Use And Operation Of Serres Nemo
RISK OF CRUSH INJURY. WATCH OUT FOR YOUR FINGERS WHEN OPENING AND CLOSING LID. SERRES NEMO® lid is opened and closed by lifting or lowering the handle on the lid. For safety reasons, the device lid cannot be opened while the program is running. -
Page 13: Placing The Suction Bag In Serres Nemo
· Open SERRES NEMO® lid (see above). · Place the suction bag to be emptied into the emptying device (see above). · Close SERRES NEMO® lid by pressing the handle on the lid, until the lid locks (see above). A GREEN light blinks for five seconds. -
Page 14: Operating Switches
AFTER EMPTYING AND RINSING CYCLE. ALWAYS WEAR PERSONAL PROTECTIVE EQUIPMENT. Operating Switches · SERRES NEMO® has a main on/off switch on the back of the lid. It is not necessary to turn off SERRES NEMO® during normal usage. The indicator LED shows when the power is on. - Page 15 · YELLOW light is BLINKING SERRES NEMO® fills the water tank, when the water tank is full the cycle will start automatically; filling the water tank can take few seconds. SERRES NEMO® water tank must be full in order for SERRES NEMO® to start. If several suction bags are emptied, one after another, the water tank may not have had time to fill between bags.
-
Page 16: Troubleshooting
PROBLEM: Liquid leakage SOLUTION: If there is liquid leaking, stop the program cycle by pressing the Play/Pause button and disconnect power cord. Contact Serres Oy Technical support, your local Serres Distributor or their authorized service partners. SERRES NEMO® www.serres.com... - Page 17 Restart program cycle by pressing the play/pause button. If the fault persists, contact Serres Oy Technical support, your local Serres Distributor or their authorized service partners. Other problems: Contact Serres Oy Technical support, your local Serres Distributor or their authorized service partners. SERRES NEMO® www.serres.com...
-
Page 18: Cleaning Serres Nemo
Cleaning SERRES NEMO® · CLEAN exterior of SERRES NEMO® by wiping it with a cleaning agent intended for disinfecting hospital equipment. · CLEAN DAILY. The emptying chamber must be cleaned daily by running program cycle with a washing tray. The washing tray is disposable. -
Page 19: Cleaning Emptying Container With The Washing Tray
Cleaning emptying container with the washing tray The daily use of disposable washing trays ensures that emptying container is hygienic and is required for SERRES NEMO® to function as intended. Place washing tray into SERRES NEMO® with enough detergent for cleaning the emptying container. PLEASE NOTICE - SERRES NEMO®... -
Page 20: Usage Counter
Serres Distributor or their authorized service partners. Usage Counter SERRES NEMO® has a counter which indicates usage count. PRESS the play/pause button for ten (10) seconds when the lid is completely opened to see counter statistics – indicator lights will start to blink. The blink sequence can be reactivated by pressing the play/pause button again. -
Page 21: Technical Specifications And Drawnings
Decibel level: dB Max 78 / Min 45 / Avarage 61. dB(A) Max 71 / Min 7 / Avarage 46 Water volume in one cycle: 8 litres Back-flow protection: SERRES NEMO® has an AB-type air gap as back-flow protection for the water supply network. - Page 22 SERRES NEMO® www.serres.com...
- Page 23 SERRES NEMO® www.serres.com...
- Page 24 Manufacturer: Serres Oy Keskustie 23 61850 Kauhajoki as, Finland tel. +358 20 746 4400 fax +358 20 746 4401 serres@serres.com www.serres.com...
